Quick Details
-
Size:
-
12500x2500x1600-3100mm or Customization
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customization
-
Usage:
-
container etc all kind of cargo
-
Axle:
-
3pc
-
Tare Weight:
-
7.5 Ton or customaization
-
Loading Capacity:
-
55 Tons or customization
-
King Pin:
-
2.00" (50#)/(90#)
-
Tire Specs.:
-
12R22.5, Triangle Brand or according customer reauirements
-
Rim:
-
9.0-22.5
-
main beam:
-
Q345b
-
Lead time:
-
One Week
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
80tons
-
Brand Name:
-
Yun Sheng
-
Size:
-
12500x2500x1600-3100mm or Customization
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customization
-
Usage:
-
container etc all kind of cargo
-
Axle:
-
3pc
-
Tare Weight:
-
7.5 Ton or customaization
-
Loading Capacity:
-
55 Tons or customization
-
King Pin:
-
2.00" (50#)/(90#)
-
Tire Specs.:
-
12R22.5, Triangle Brand or according customer reauirements
-
Rim:
-
9.0-22.5
-
main beam:
-
Q345b
-
Lead time:
-
One Week
Products Description
Overview
Video Presentation
Specification

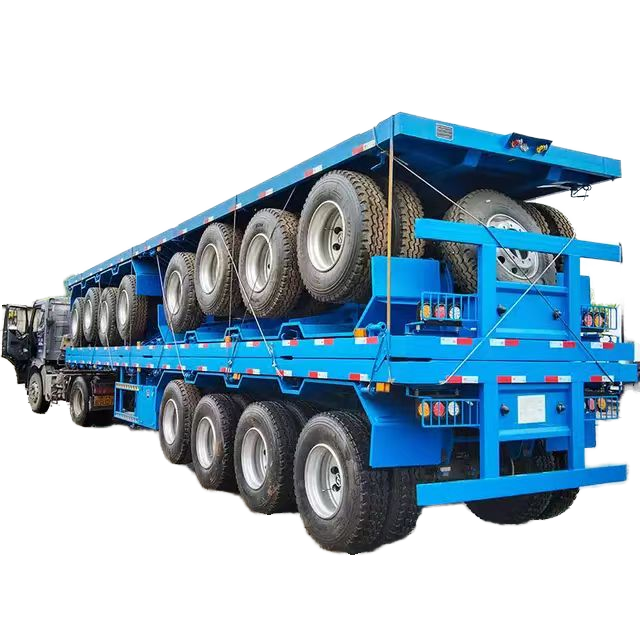

3 Axles Flatbed Semi Trailer details
Flatbed semi-trailers are usually used to transport 20FT/40FT container The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
|
Products Name
|
3 axle Flatbed 20FT 40FT container Semi Trailer
|
|
Max Payload
|
40-80tons
|
|
Size
|
12500x2500x1600-3100mm or customizable
|
|
Main Beam
|
Q345B Height 500mm
upper plate is 14mm,
down plate is 16mm, middle plate is 8mm. |
|
Side Beam
|
Q235 16# channel steel
|
|
Leaf Spring
|
90(w)mm*13/16(thickness)mm*10(layer)
|
|
Landing Gear
|
28t Heavy Duty Landing Gear
|
|
Electrical SYSTEM
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
|
|
King Pin
|
2"(50mm)or3.5"(90mm)
|
|
Axle
|
13Ton, 3 axles
|
|
Suspension
|
Mechanical Suspension
|
|
Tire
|
12.00R22.5(Brand optional)
|
|
Rim
|
9.00-22.5
|
|
Bottom Platform
|
3mm diamond plate
|
|
Accessory
|
One tooling box with a set of standard trailer tool.
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
|
|
Function
|
container transfer
|
|
Packaging and delivery
|
by sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
|
|
remarks
|
We can design model according to client's requirement
|
Axle
BPW/FUWA/WOSHENG Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Twist-lock
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs.Customers can change the number of locks according to your own needs.
Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
