Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.
- Product Details
- {{item.text}}
Quick Details
-
Spangle Type:
-
Minimium Spangle
-
Hardness:
-
Soft
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ganquan
-
Length:
-
as your request
-
Grade:
-
DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,DX51D+Z/SGCC
-
Product Name:
-
Hot Dipped Galvanized Steel Coil
-
Surface Treatment:
-
galvanized
-
Width:
-
8-1250mm,as customer's requirement
-
Delivery time::
-
About 15-20days
-
Zinc Coating:
-
30-275g/m2
-
MOQ:
-
1Tons
-
Payment term:
-
L/C T/T (30% Deposit)
-
Spangle:
-
Zero spangle,Minimum spangle,regular spangle,big spangle
-
Package:
-
Standard Seaworth Packing
Quick Details
-
Type:
-
Steel Coil
-
Thickness:
-
0.12-3.0mm
-
Coating:
-
Z61-Z80
-
Spangle Type:
-
Minimium Spangle
-
Hardness:
-
Soft
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ganquan
-
Length:
-
as your request
-
Grade:
-
DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,DX51D+Z/SGCC
-
Product Name:
-
Hot Dipped Galvanized Steel Coil
-
Surface Treatment:
-
galvanized
-
Width:
-
8-1250mm,as customer's requirement
-
Delivery time::
-
About 15-20days
-
Zinc Coating:
-
30-275g/m2
-
MOQ:
-
1Tons
-
Payment term:
-
L/C T/T (30% Deposit)
-
Spangle:
-
Zero spangle,Minimum spangle,regular spangle,big spangle
-
Package:
-
Standard Seaworth Packing
Dx52d Z Galvanize Steel Coil Z40 Z60 Z100 Z180 0.8 Mm Cold Steel lower price
Product Paramenters
|
Grade
|
SGHC, SGCC, DX51D, Q195, all according to the customer's request
|
|
||
|
Standard
|
JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
|
|
||
|
Thickness
|
from 0.12mm to 5.0mm, all available
|
|
||
|
Width
|
from 600mm to 1500mm, all available
|
|
||
|
Coil ID
|
508mm/610mm
|
|
||
|
Coil weight
|
from 3-10MT, according to the customer's request
|
|
||
|
Zinc coating weight
|
30g/m2-275g/m2, double side
|
|
||
|
Spangle
|
big spangle, normal spangle, small spangle, non-spangle
|
|
||
|
Surface treatment
|
Chemical passivating, oils, passivating + oils
|
|
||
|
Edge
|
mill edge, cut edge
|
|
||
|
Delivery time
|
within 7 days after receipt of deposit or L/C,T/T
|
|
||
|
galvanized steel coils
|
|
|
||
|
Surface treatment
|
Features
|
|
||
|
Chemical passivating treatment
|
minimize the chance of white rust forming during the transit and storage
|
|
||
|
|
maintain the bright shiny appearance for a longer time
|
|
||
|
Oils
|
minimize the tendency for storage and transit stain
|
|
||
|
passivating + oils
|
provide the protection from the storage and transit stain by special chemicals called corrosion inhibitors
|
|
||
|
Spangle of JISG3302 SGCC zinc coated 0.2mm hot dip galvanized iron gi steel sheet in coil
price
|
|
|
||
|
Surface finish
|
Pattern
|
Application
|
||
|
Normal spangle
|
Standard spangles with flower pattern
|
General uses
|
||
|
Small spangle
|
Minimized spangles than regular
|
General painting applications
|
||
|
Non-spangle
|
Extremely minimized spangles
|
Special painting applications
|
||
Product Show

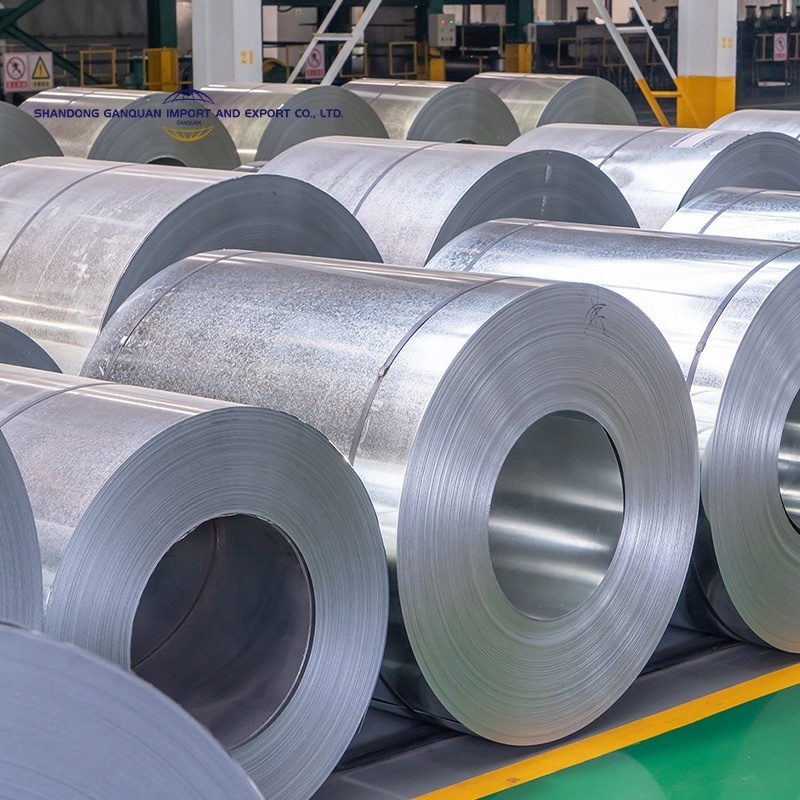

Galvanized steel coil
Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.
According to the production and processing methods can be divided into the following categories:
(1) hot dip galvanized steel. Thin plate in melting zinc bath, make its surface adhesion of a layer of zinc sheet. At present mainly adopts continuous galvanizing process, namely the continuous roll of steel plate in the melt zinc plating tank made of galvanized steel sheet;
(2) the alloying of galvanized steel. This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ℃, it make the generation of zinc and iron alloy membrane. This kind of galvanized sheet with good coating of sex and weldability;
(3) electric galvanized steel. Made this kind of galvanized steel plating method has good workability. But the coating is thinner, the corrosion resistance and the method of hot dip galvanized sheet
(4) the single side and double difference galvanized steel plating. Single galvanized steel, that is, only in a galvanized products. Material in the antirust processing, welding, painting, machining, etc., two-sided galvanized sheet better adaptability. In order to overcome the single side not the shortcoming of zinc coating, and one in the other side is coated with a thin layer of zinc galvanized sheet, namely double difference galvanized sheet;
(5) alloy and composite galvanized steel. It is made from zinc and other metals such as aluminum, lead, zinc alloy and composite plating of steel plate. This steel has excellent rust resistance, and good coating performance, Besides the above five kinds of color galvanized steel plate, printing and coating of galvanized steel sheet, PVC laminated galvanized steel sheet, etc. But still by far the most commonly used for hot dip galvanized sheet.
According to the production and processing methods can be divided into the following categories:
(1) hot dip galvanized steel. Thin plate in melting zinc bath, make its surface adhesion of a layer of zinc sheet. At present mainly adopts continuous galvanizing process, namely the continuous roll of steel plate in the melt zinc plating tank made of galvanized steel sheet;
(2) the alloying of galvanized steel. This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ℃, it make the generation of zinc and iron alloy membrane. This kind of galvanized sheet with good coating of sex and weldability;
(3) electric galvanized steel. Made this kind of galvanized steel plating method has good workability. But the coating is thinner, the corrosion resistance and the method of hot dip galvanized sheet
(4) the single side and double difference galvanized steel plating. Single galvanized steel, that is, only in a galvanized products. Material in the antirust processing, welding, painting, machining, etc., two-sided galvanized sheet better adaptability. In order to overcome the single side not the shortcoming of zinc coating, and one in the other side is coated with a thin layer of zinc galvanized sheet, namely double difference galvanized sheet;
(5) alloy and composite galvanized steel. It is made from zinc and other metals such as aluminum, lead, zinc alloy and composite plating of steel plate. This steel has excellent rust resistance, and good coating performance, Besides the above five kinds of color galvanized steel plate, printing and coating of galvanized steel sheet, PVC laminated galvanized steel sheet, etc. But still by far the most commonly used for hot dip galvanized sheet.
Other Hot Selling Products
Application
Application
Galvanized steel sheet products are mainly used in construction, light industry, automobile, agriculture, animal husbandry,fishery and other industries. Such as building roofs, highway guardrails, sheet metal processing, roof grilles, household appliance enclosures, ventilation ducts, chimneys, kitchen utensils, grain storage and transportation, frozen processing of meat and aquatic products, etc.
Packing & Delivery
|
Package
|
Standard export seaworthy package,suit for all kinds of transport, or as required.
|
|
|
Water-proof Paper + Edge protection + Wooden Pallets
|
|
Bulk Size
|
Any size
|
|
Loading Port
|
Tianjin, Qingdao Port or any China Seaport
|
|
Container
|
1*20ft container load Max. 25 Ton, Max. length 5.8m
|
|
|
1*40ft container load Max. 25 Ton, Max. Length 11.8m
|
|
Delivery Time
|
7-15 days or according to the order's quantity
|
