Quick Details
-
Brand Name:
-
Hiolink
-
Warranty Time:
-
3 Years
-
MAC:
-
1K
-
Buffer memory space:
-
1Mbit
-
Power:
-
DC5V/1A (external), AC220V/DC-48V (built-in)
-
Bit error rate:
-
<1/1000000000
-
Power Consumption:
-
2.5W
-
Installation:
-
Wall mounting type
-
MTBF:
-
100000 hours
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
FC830AG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hiolink
-
Warranty Time:
-
3 Years
-
MAC:
-
1K
-
Buffer memory space:
-
1Mbit
-
Power:
-
DC5V/1A (external), AC220V/DC-48V (built-in)
-
Bit error rate:
-
<1/1000000000
-
Power Consumption:
-
2.5W
-
Installation:
-
Wall mounting type
-
MTBF:
-
100000 hours

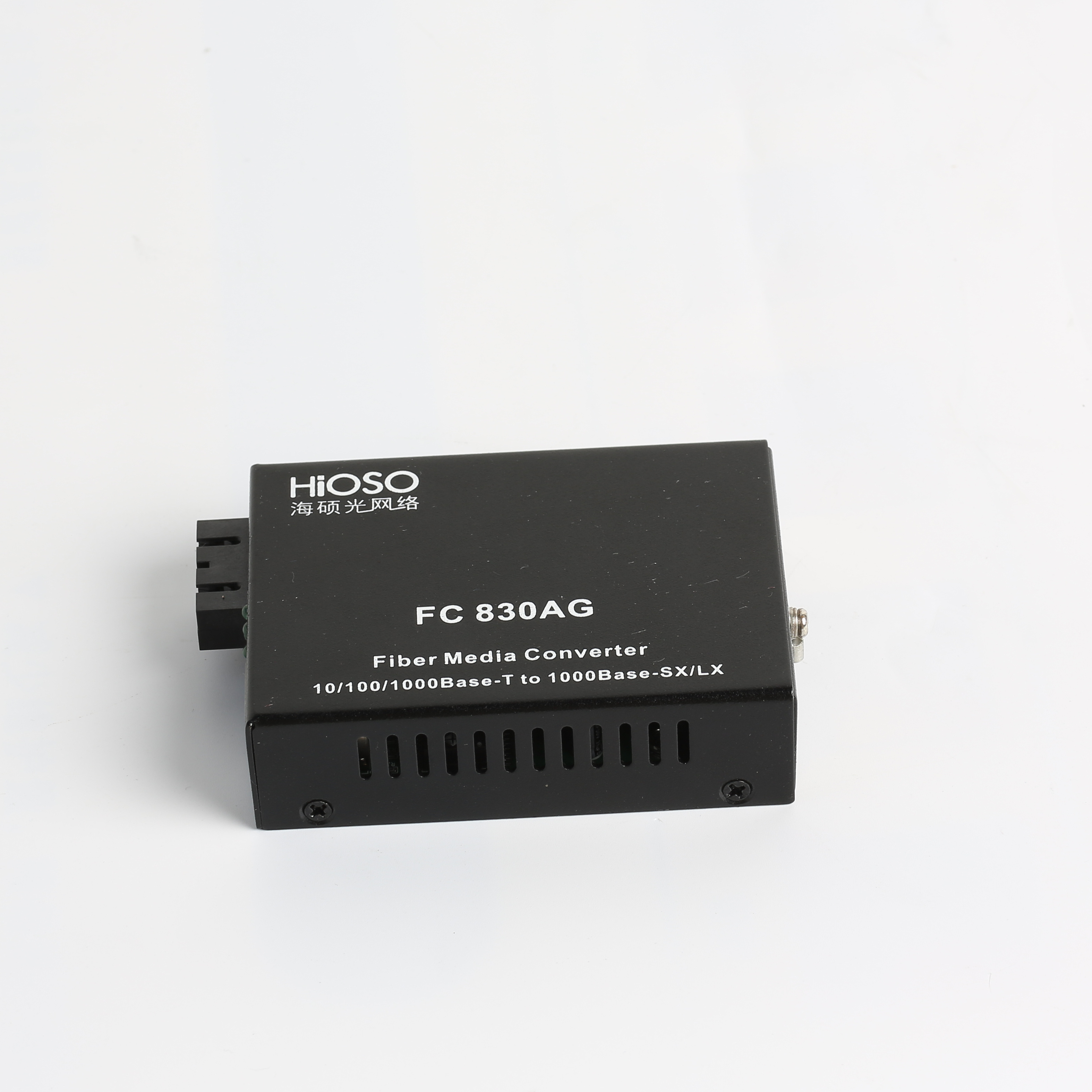

FC 830AG 1 GE+1 1000M FX Media Converter
Overview
HiOSO FC
830
A
G
10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.
Feature
· Supporting mutual signal conversion between 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX;
· Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation;
· Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
· Dual fiber device support to detect the optic signal
· Supporting the transmission of 10KBytes extra-long packets over VLAN;
· Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
· Supporting Spanning Tree Protocol (STP) to form a redundant network;
Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users.
Technical Specification
|
Parameters |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
|
Wavelength |
850nm/1310nm/1490nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode: 220m (fiber size: 62.5/125μm)/550m (fiber size: 50/125μm)
|
|
Port |
One RJ45 port: Connected to STP/UTP category-5 twisted pairs
|
|
Conversion mode |
Medium conversion , storing and forwarding mode |
|
MAC address table |
I K |
|
Buffer space |
1 M bit |
|
Delay |
<1μs |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
LED |
POWER (power), FX LINK /act (fiber link / action), FX SD (detect optic signal), TP LINK / ACT (twisted pair link action), TP 100 0 (twisted pair connection 10 0 0M) , TP 100 (twisted pair connection 100M ,only for external power ) |
|
Power |
DC5V/1A (external) , AC220V/DC-48V (built-in) |
|
Power consumption |
2. 5W |
|
Operating temperature |
-10~55°C |
|
Operating humidity |
5%~90% |
|
Storage temperature |
-40~ 8 0°C |
|
Storage humidity |
5%~90% (non-condensing) |
|
Dimensions |
38mm(H)*118mm(W)*152mm(D) (height * width * depth) (built-in power)
|
