Quick Details
-
Model Number:
-
YY1000
-
Brand Name:
-
Yunyi
-
Item Name:
-
Hydraulic electromagnetic high pressure water solenoid valve
-
Medium:
-
air,water,oil
-
Pressure:
-
0 ~ 7.0MPa
-
Port Thread:
-
1/8'',1/4''
-
Orifice (mm):
-
1.0,1.2,1.5,2.0,2.5,3.0,3.5
-
Voltage:
-
DC-12V/24V ;AC110V/220V
-
Scope:
-
± 10%
Quick Details
-
Port Size:
-
1/8-1/4
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Model Number:
-
YY1000
-
Brand Name:
-
Yunyi
-
Item Name:
-
Hydraulic electromagnetic high pressure water solenoid valve
-
Medium:
-
air,water,oil
-
Pressure:
-
0 ~ 7.0MPa
-
Port Thread:
-
1/8'',1/4''
-
Orifice (mm):
-
1.0,1.2,1.5,2.0,2.5,3.0,3.5
-
Voltage:
-
DC-12V/24V ;AC110V/220V
-
Scope:
-
± 10%
high pressure Hydraulic solenoid valve price electromagnetic water solenoid valve
2 Way Solenoid Valve, G1/8", G1/4 ", G3/8" Port Size, Stainless Steel or Brass
High Quality Normally Closed electric solenoid valve, for Air, Water, Oil, Gas
Working temperature range: -5~80°C
It's applicable in many fields: Irrigation controls (garden, farm, etc.), liquid controls ( pipeline, artificial river etc. andair controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as well
Specification of Hydraulic solenoid valve price electromagnetic high pressure water solenoid valve
| Characteristic |
1. Direct acting, low power 2.Long life and low temperature |
| Medium | air,water,oil |
| Temperature |
NBR:-10℃~80℃
EPDM:-30℃~120℃
VITON:-30℃~150℃
|
| Pressure | 0 ~ 7.0MPa |
| Port Thread | 1/8'',1/4'' |
| O rifice ( mm) | 1.0,1.2,1.5,2.0,2.5,3.0,3.5 |
| Voltage | DC-12V/24V ;AC110V/220V |
| Scope | ± 10% |
| Coils | SC11B/SC12B,10VA(AC),10W(DC), IP65 100%ED |
| Material |
Body-B
ass/
SUS304
Seal -
Viton/NBR/EPDM
Armature - SUS304
Plunger -
1J117
Stop -
1J117
Springs - SUS304
Shading Rings - Copper
|

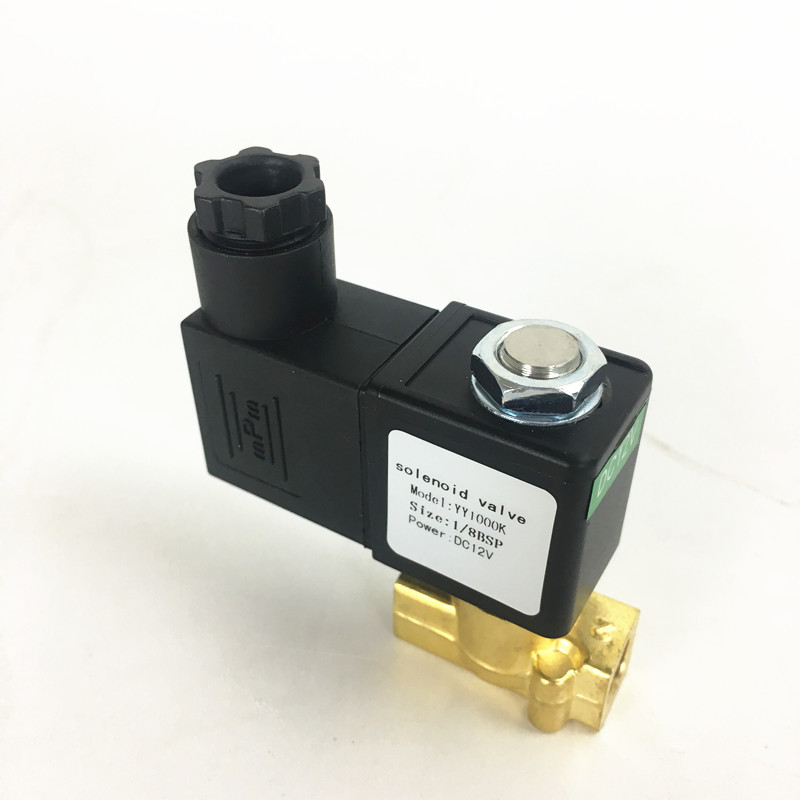

Detailed pictures of Hydraulic solenoid valve price electromagnetic high pressure water solenoid valve
Outline size of Hydraulic solenoid valve price electromagnetic high pressure water solenoid valve
