Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
1-10mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
MYT
-
Weight (KG):
-
4000 KG
-
Product name:
-
Steel Water Jet Cnc Metal Waterjet Cutting Machine
-
Power::
-
37KW
-
Cutting thickness (max)::
-
200
-
X/Y Max Moving Speed::
-
30 meter/minute
-
Control Accuracy::
-
±0.02MM
-
Cutting Accuracy::
-
±0.01MM
-
Control system::
-
PC, CNC
-
Core Components::
-
Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-50m/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
1-10mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
MYT
-
Weight (KG):
-
4000 KG
-
Product name:
-
Steel Water Jet Cnc Metal Waterjet Cutting Machine
-
Power::
-
37KW
-
Cutting thickness (max)::
-
200
-
X/Y Max Moving Speed::
-
30 meter/minute
-
Control Accuracy::
-
±0.02MM
-
Cutting Accuracy::
-
±0.01MM
-
Control system::
-
PC, CNC
-
Core Components::
-
Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

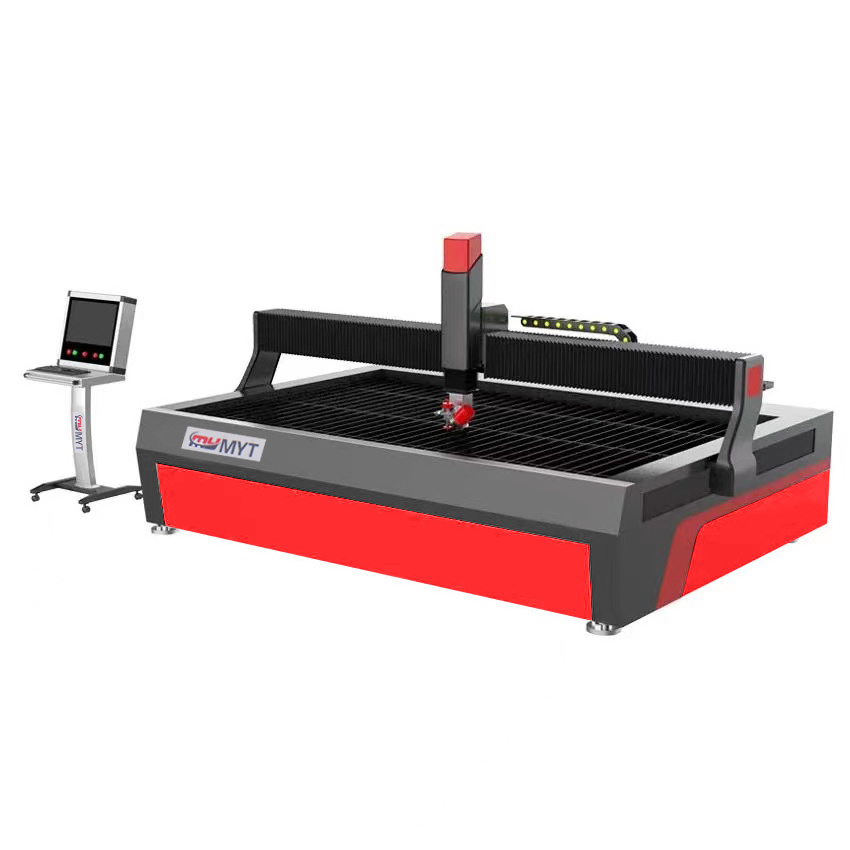

Product Overview
MYT®
Water Jet Cutting Machine
water jet cutting machine is a high-pressure water jet cutting machine that utilizes straight pure water cutting or
abrasive waterjet cutting to cut several types of material. Fedjet® using the water jet high-pressure cutting process to cut
material thicknesses from gauge up to 200mm(8").
It will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass,Granite, Leather, Marble, Mild
Steel,Plastic, Stainless Steel, Stone, Tile, Titanium,Ceramic tile,Acrylic,Fiber glass ,Rubber,Foam,Composite materials etc.
Perfect small water jet cutting machine is achieved by forcing a large volume of pure water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting.
water jet cutting machine is a high-pressure water jet cutting machine that utilizes straight pure water cutting or
abrasive waterjet cutting to cut several types of material. Fedjet® using the water jet high-pressure cutting process to cut
material thicknesses from gauge up to 200mm(8").
It will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass,Granite, Leather, Marble, Mild
Steel,Plastic, Stainless Steel, Stone, Tile, Titanium,Ceramic tile,Acrylic,Fiber glass ,Rubber,Foam,Composite materials etc.
Perfect small water jet cutting machine is achieved by forcing a large volume of pure water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting.
PRODUCT CONFIGURATION
3000x1500mm waterjet cutting machine
cutting beam
5A-rotary 60
lubrication system
Ultra-high pressure pump
TAIWAN
Liner and ballcrew
PRODUCT SPECIFICATIONS
|
Product Name
|
AC 5axis Water Jet Stone Porcelain Cutting Machine High Pressure Cold Cutting Machine
|
|
Cutting Area
|
3000*1500mm (X*Y)
|
|
X Axis Travel
|
3000mm
|
|
Y Axis Travel
|
1500mm
|
|
Z Axis Travel
|
150mm
|
|
Continous Working Pressure
|
360Mpa
|
|
Application
|
Water jet cutting machine, water cutting machine, waterjet CNC machine
|
