Quick Details
-
Pressure range:
-
0~10kPa...2.5MPa
-
Pressure reference:
-
Differential pressure
-
Zero output:
-
±2mV
-
Span output:
-
≥40mV (≤35kPa) | ≥60mV (Other ranges)
-
Accuracy:
-
±0.25%F.S. (Typical)
-
Excitation:
-
1.5mA (Typical)
-
Compensated temp.:
-
0℃-60℃ (≤35kPa) | -10℃-70℃ (Other ranges)
-
Operating temp.:
-
-40-125℃
-
Oil filling:
-
Silicon oil (Typical)
-
Certification:
-
CE,ISO90001,RoHS
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WTsensor
-
Model Number:
-
PC10D
-
Pressure range:
-
0~10kPa...2.5MPa
-
Pressure reference:
-
Differential pressure
-
Zero output:
-
±2mV
-
Span output:
-
≥40mV (≤35kPa) | ≥60mV (Other ranges)
-
Accuracy:
-
±0.25%F.S. (Typical)
-
Excitation:
-
1.5mA (Typical)
-
Compensated temp.:
-
0℃-60℃ (≤35kPa) | -10℃-70℃ (Other ranges)
-
Operating temp.:
-
-40-125℃
-
Oil filling:
-
Silicon oil (Typical)
-
Certification:
-
CE,ISO90001,RoHS
- Piezoresistive silicon chip employed
- Perfect long term stability
- MEMS technology
- Sensor diameter: 19mm

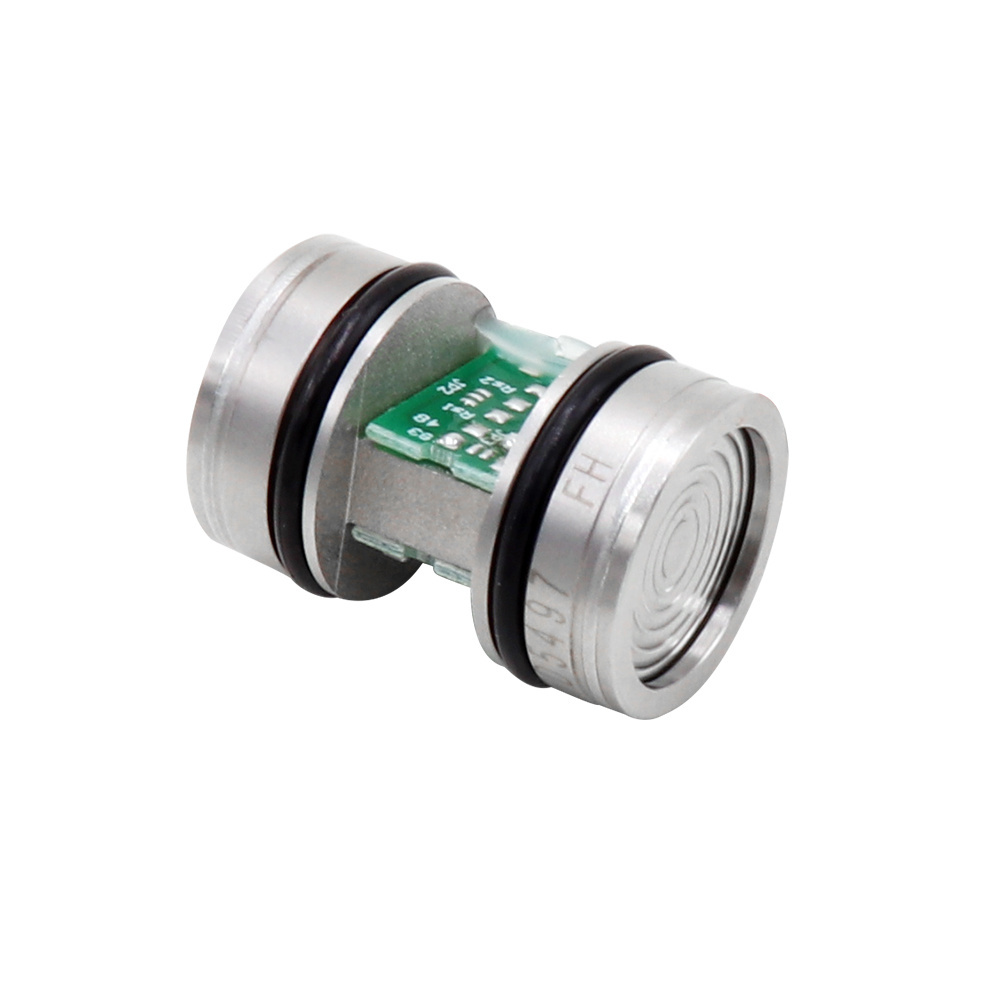

PC10D(WTD19) differential pressure sensor is a standard and most
popular sensor applied in air and liquid pressure measuring. A high
sensitivity silicon pressure chip is employed in the sensor. The housing
is filled with oil for pressure transmission. The most important
specification for industry application is long term stability.
PC10D(WTD19) sensor is designed for industry application with perfect
long term stability.
Diaphragm and pressure range
The diaphragm diameter has tight relation with pressure measured.
Low pressure requires large diameter and high pressure needs small
diameter. This is caused by oil expansion during temperature changing.
It creates internal pressure due to the resistance of the diaphragm. The
smaller diaphragm will create large internal pressure, and it is difficult to
make zero compensation.
Caution
Please do not touch the diaphragm by finger and other hard objects, or
it may be damaged.
|
Pressure range |
|||
|
Pressure range |
10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa (bar and psi unit available) |
||
|
Pressure reference |
Differential pressure |
||
|
Overpressure |
Range |
Positive Overpressure |
Negative Overpressure |
|
35kPa |
70kPa |
35kPa |
|
|
70kPa |
150kPa |
70kPa |
|
|
100kPa |
200kPa |
100kPa |
|
|
250kPa |
500kPa |
250kPa |
|
|
400kPa |
800kPa |
400kPa |
|
|
600kPa |
1200kPa |
600kPa |
|
|
1MPa |
2MPa |
1MPa |
|
|
1.6MPa |
3.2MPa |
1MPa |
|
|
2.5MPa |
5MPa |
1MPa |
|
|
Output signal |
|||
|
Zero output |
±2mV |
||
|
Span output |
≥40mV (≤35kPa) | ≥60mV (Other ranges) |
||
|
Specification |
|||
|
Accuracy (linearity, repeatability and hysteresis) |
±0.25%F.S. (Typical) |
||
|
Excitation |
1.5mA (Typical) |
||
|
Compensated temp. |
0 ℃ -60 ℃ (≤35kPa) | -10 ℃ -70 ℃ (Other ranges) |
||
|
Operating temp. |
-40 ℃ -125 ℃ |
||
|
Storage temp. |
-40 ℃ -125 ℃ |
||
|
Zero temp. coefficient |
0.02%F.S./ ℃ (≥100kPa) | 0.04%F.S./ ℃ (<100kPa) |
||
|
Span temp. coefficient |
0.02%F.S./ ℃ (≥100kPa) | 0.04%F.S./ ℃ (<100kPa) |
||
|
Insulation resistance |
> 200Mohm/250VDC |
||
|
Input impedance |
2kΩ ~ 5kΩ |
||
|
Long term stability |
≤0.3%F.S.S/year |
||
|
Vibration |
20g (20-5000HZ) |
||
|
Housing and diaphragm |
Stainless steel 316L |
||
|
Oil filling |
Silicon oil (Typical) |
||
|
Wire connection |
4 wire (typical) | 5 wire (available) 39×φ0.015, Silicon shielded, 200 ℃ bearing |
||
|
Weight |
40g(approx) |
||
|

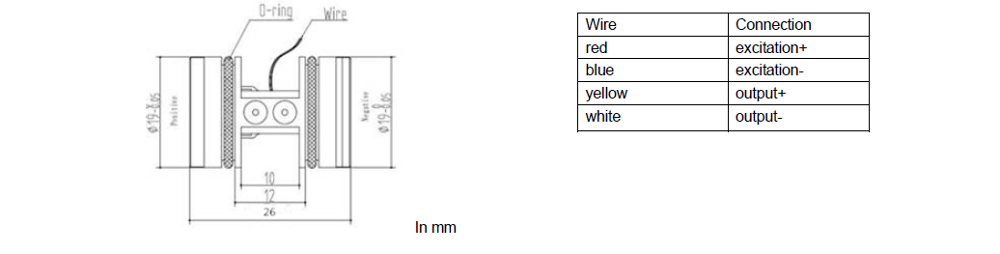

Wire connection |
