Efficient Small Concrete Pump Machine Diesel Trailer Concrete Pumps 60M3

Efficient Small Concrete Pump Machine Diesel Trailer Concrete Pumps 60M3

FOB Reference Price: Get Latest Price

≥1 Sets

US $1999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Productivity:: 22M³/H

Place of Origin:: Henan, China

Brand Name:: Shengmao

Weight:: 5800 kg

Dimension(L*W*H):: 5800*2000*1750 mm

After Warranty Service:: Field maintenance and repair service

Quick Details

Power Type:: Diesel

Max. vertical conveying distance:: 120M

Max. horizontal conveying distance:: 500M

Productivity:: 22M³/H

Place of Origin:: Henan, China

Brand Name:: Shengmao

Weight:: 5800 kg

Dimension(L*W*H):: 5800*2000*1750 mm

After Warranty Service:: Field maintenance and repair service

Product Description

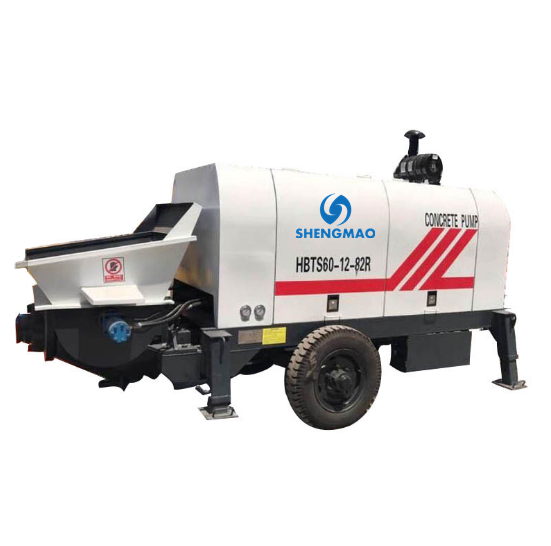

HBTS60R Concrete Trailer Pump

1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judging and removing trouble

2. The electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away.

3. The design of hopper and S valve and so on adopt Ⅰ －DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage

4. The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings

5. The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status

Product Details

Main Features

1) Saving cost; It is much cheaper than concrete boom truck;

2) Saving labours; one operator is ok;

3) Easy to operate; remote control is available;

4) Reliable performance; If the machine is operated properly, it can work properly more than 5 years;

5) Easy to move; the machine has wheels, we can use a car to tow it to another job site easily.

Item	Unit	HBTS60R
Max. theo. concrete output (L/H)	m3/h	80/40
Max. concrete pumping pressure(L/H)	MPa	13/7.6
Distribution valve type		S Valve
Concrete cylinder (diameter*stroke)	mm	Ф200*1,650
Hopper capacity*feeding height	L*mm	680*1,400
Outlet diameter	mm	Ф180
Inside diameter of delivering pipe	mm	Ф125
Dimensions (LWH)	mm	5,8002,0001,750
Total weight	kg	5,800

Oil pump

Korean Kawasaki

PLC

Japanese OMRON

Hydraulic pipe

Italy Manuli

Seal

American Parket

Electric control elements

French Schneider

Intermediate relay

French Schneider

Control mode

Remote Control

Packing&Shipping

Our Projects

Other related concrete pump

HBTS10R Diesel Concrete Pump
Capacity: 10m³/h

Max. aggregate diameter: 30mm

Max.Conveying Distance (Vertical/Horizontal ): 30/80m

Diesel engine power: 36kw
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai

HBTS20R Diesel Concrete Pump
Capacity: 20 m³/h

Max. aggregate diameter: 30mm

Conveying Distance (Vertical/Horizontal): 120/350m

Diesel engine power: 36kw
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai

BS30R diesel powered concrete pump

Capacity: 30 m³/h

Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m

Diesel engine power: 56kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki

BS30 electricity powered concrete pump

Capacity: 30 m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m

Motor power: 37kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki

HBTS40R diesel powered concrete pump

Capacity: 40 m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m

Diesel engine power: 62kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki

HBTS40 electricity powered concrete pump

Capacity: 40m3/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m

Motor power: 45kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki

HBTS60R diesel powered concrete pump

Capacity: 60 m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m

Diesel engine power: 82kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki

HBTS60 electricity powered concrete pump

Capacity: 60 m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Motor power: 90kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki

HBTS80R diesel powered concrete pump

Capacity: 80 m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m

Diesel engine power: 129kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki

HBTS80 electricity powered concrete pump

Capacity: 80 m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki

HBTS90R diesel powered concrete pump

Capacity: 90 m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m

Diesel engine power: 129kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki

HBTS90 electricity powered concrete pump

Capacity: 90 m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
