Esd5111 Esd5111 Generator Governor ESD5111 Electronic Governor For Generator

Esd5111 Esd5111 Generator Governor ESD5111 Electronic Governor For Generator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $33

≥100 Pieces

US $28

≥200 Pieces

US $26

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: speed controller esd5111

Operation Temp::: -40~ +85℃

Function:: Governor speed control

Certificate:: CE Certificate ISO9001

Stock:: Stock supply for ESD5111

Quality Class::: Same function with Deep sea series

Similar Model::: ESD5111 ESD5120 5570 ETC

Trademark:: SAFE

Certification:: iso9001 ce

Quick Details

Place of Origin:: Fujian, China

Brand Name:: SAFE

Model Number:: esd5111

Product Name:: speed controller esd5111

Operation Temp::: -40~ +85℃

Function:: Governor speed control

Certificate:: CE Certificate ISO9001

Stock:: Stock supply for ESD5111

Quality Class::: Same function with Deep sea series

Similar Model::: ESD5111 ESD5120 5570 ETC

Trademark:: SAFE

Certification:: iso9001 ce

Product Description

FEATURE S FEATURES：

Specifications for ESD5111

Color:as pictures
Speed Range:1KHz-7.5KHz
Thermal Stability:Max ±1%
IDLE Adjustment:160 ± 20Hz ~ rated speed of 95%
External Speed Adjustment:± 200Hz (external 1KΩ) AUX.
Input Sensitivity:148Hz / 1V., ± 10Hz., Impedance 1MΩ START FUEL.
Adjust:160 ± 20Hz ~ 70% of rated speed RAMP.
Time Adjustment:1.5 ~ 20Sec. 10V.
Output Current:Maximum 20mA environment
Operating Temperature Range:-40ºC ~ 85ºC
Operating Humidity Range:Max 95%
Save Temperature:-55ºC ~ 90ºC
Shock:20-100HZ 500mm/Sec
Voltage:12V and 24V DC battery systems
Ground Polarity:negative electrode
Power Consumption:50mA
Actuator Continuous Current:minimum 2.5A; maximum 10A
Speed Sensor Signal:0.5 ~ 120 RMS

Product Display

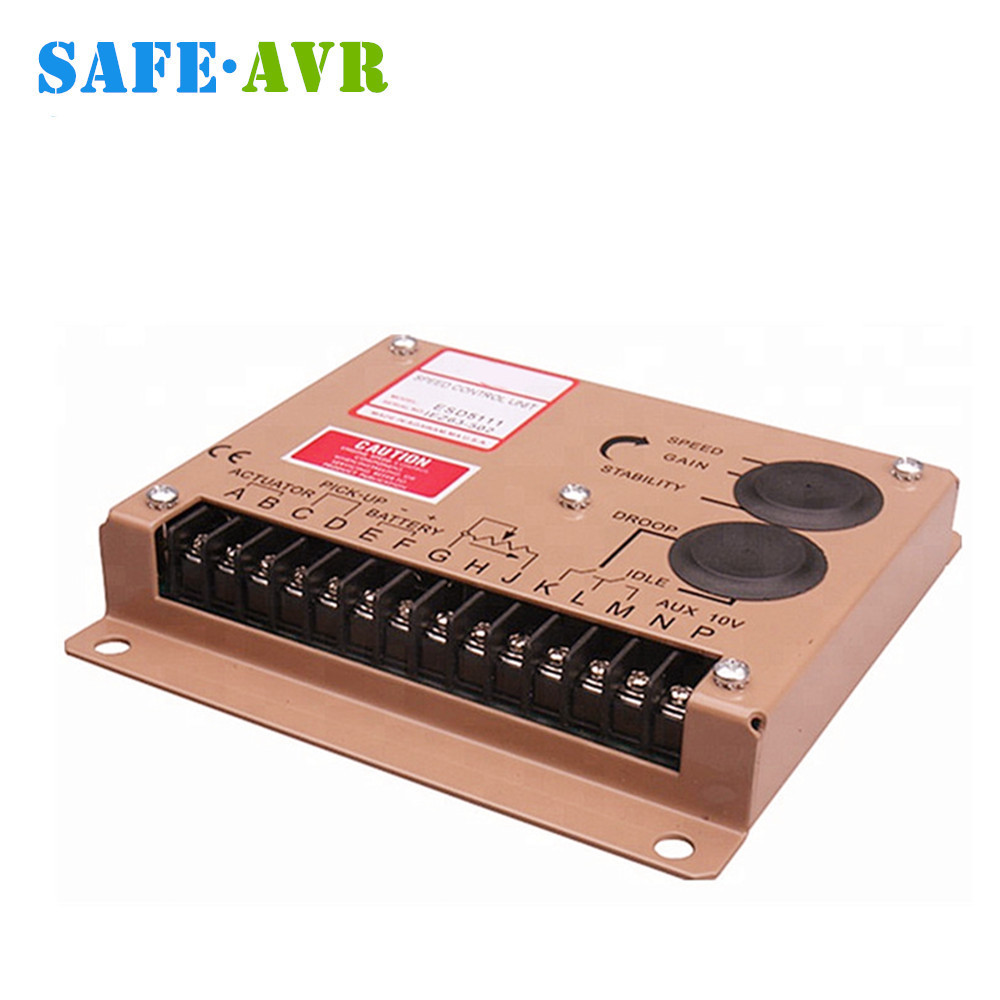

Generator Electronic Governor ESD5111 Speed Control Unit
Isochronous Operation/Steady State Stability	±0.25% or better
Speed Range/Governor	1K--7.5KHz continuous
Speed Drift with Temperature	±1% Maximum
Idle Adjust CW	Min.1200Hz Below Set Speed
Idle Adjust CCW	Min.4100Hz Below Set Speed
Droop Range	1-5% regulation
Droop Adj.Max.(K-L Jumperer)	875Hz,±75Hz per 1.0A change
Remote Variable Speed Range	500-7.5Hz,or any part thereof

Speed Controller ESD5111

Features
-DROOP. Adjustment: The minimum position is 15Hz ± 6Hz / Amps load current change. Maximum position 400Hz ± 75Hz / per amp load
current change.
-The speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with
precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor
signals can be Control of a wide range of engines.
-It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic
interference.

Note
-Extreme heat should be avoided.
-Engine speed control component.When installing or servicing refer to product publication.
-Due to the manual measurement,there might be some error.
