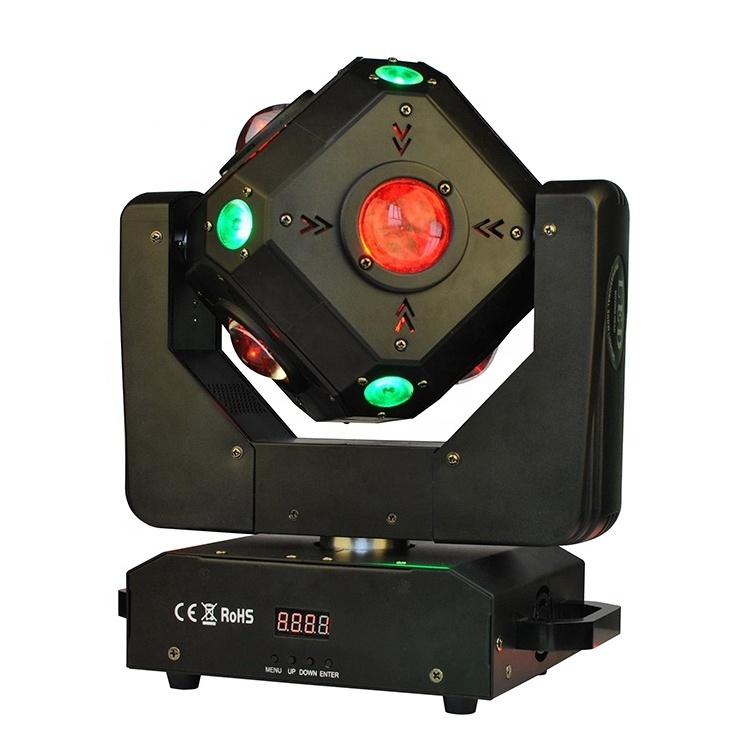

JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light
JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light

JOYRAY LED Moving Head Effect Light Magic Beam Wash Cube 12x10W RGBW 4in1 Stage Disco KTV Home Party Light

FOB Reference Price: Get Latest Price
≥1 Pieces
US $150
≥30 Pieces
US $144
≥60 Pieces
US $138.46
≥120 Pieces
US $133.33
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty(Year):
2-Year
Color Rendering Index(Ra):
76
Product Weight（kg）:
6.4
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
Max. 6,200 lm
CRI (Ra>):
76
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Place of Origin:
Zhejiang, China
Brand Name:
JOYRAY, DORTRON
Emitting Color:
RGBW
Control mode:
DMX, Autorun, Sound-activate
Light source:
LED 12pcs 10W, RGBW 4-in-1
Beam angle:
beam 1°; wash 30°
Flicker free:
refresh rate >2K Hz
Built-in color macro:
color fade in & out
Built-in effects macro:
speed adjustable
Display:
4-digit LED
Pan:
Max 540°
Tilt:
infinite rotation
Power In:
IEC

Quick Details

Color Temperature(CCT):
7000-7600K
Type:
Moving Head Lights
Application:
Stage, Disco Club, KTV, Home Party
Warranty(Year):
2-Year
Color Rendering Index(Ra):
76
Product Weight（kg）:
6.4
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
Max. 6,200 lm
CRI (Ra>):
76
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Place of Origin:
Zhejiang, China
Brand Name:
JOYRAY, DORTRON
Emitting Color:
RGBW
Control mode:
DMX, Autorun, Sound-activate
Light source:
LED 12pcs 10W, RGBW 4-in-1
Beam angle:
beam 1°; wash 30°
Flicker free:
refresh rate >2K Hz
Built-in color macro:
color fade in & out
Built-in effects macro:
speed adjustable
Display:
4-digit LED
Pan:
Max 540°
Tilt:
infinite rotation
Power In:
IEC
Product Description
Main Features:
● Control: DMX, Autorun, Sound-activate
● LEDs: 12pcs 10W, RGBW 4-in-1
● Beam angle: Beam 1°; Wash 30°
● Flicker free: refresh rate >2K Hz
● Built-in colors macro
● Built-in effects macro
● 4-digit LED display
● Pan: Max 540°
● Tilt: infinite rotation
● Power In: IEC
Application:
Ideal for stage, concert touring, disco club, KTV, home party
Product Name
LED Moving Head Effect Light, Magic Beam Wash Cube, 12x10W, RGBW 4in1
LIGHT SOURCE
LEDs
12pcs 10W, RGBW 4-in-1 (Beam: 6pcs, Wash: 6pcs)
Color temp
7000-7600K
CRI
Ra>76
Luminous flux
Max. 6,200 lm
Drive mode
constant current
Drive current
750mA (beam); 310mA (wash)
OPTICS
Beam angle
Beam: 1°; Wash: 30°
Optic lens
Beam: acrylic spherical, diameter 48mm; Wash: acrylic diameter 25mm
DIMMER & STROBE
Electronic dimming
0-100% linear, 16bit smooth dimming
Refresh rate
>2K Hz (Flicker free) , suitable for TV applications and all video recorded events
Electronic strobe
1-20 flashes/sec.
Built-in strobe macro
Built-in strobe macro and speed adjustable
EFFECTS
Built-in color macro
color fade in & out
Built-in effects macro
speed adjustable
CONTROL MODE
Control protocol
DMX512
Control mode
DMX, Master/Slave, Autorun, Sound-activate
DMX channels
15/21CH
DMX data In/Out
XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
Display
4-digit LED
Display flip
with flip function (can be rotate through 180°)
Setting and addressing
via 4-menu-button
Menu language
English
PAN-TILT
Pan
Max 540°, with 8 or 16 bit resolution
Tilt
infinite rotation
Pan/Tilt
2 phase motors, automatic Pan/Tilt reposition
BODY & HOUSING
Housing
plastic+aluminium+iron
Housing surface
baking finished treatment
Housing color
black (white optional)
POWER SUPPLY
Power supply
AC100V-240V; 50/60Hz
Power consumption
Max. 100W
Power Supply Unit (PSU)
Auto switching power supply unit 150W
Power In
IEC
COOLING & THERMAL MANAGEMENT
Heatsinks
Heatsinks in aluminum
Cooling for head
forced air convection with 1 fan
Cooling for base
natural convection
SAFETY PROTECTION
Electrical protection
Electronic protection against short circuit
Rigging protection
with safety chain through bolt at the bottom
RIGGING & MOUNTING
Rigging
1pc omega bracket
Mounting
Four strong feet for better flat placement stability
ENVIRONMENT AND PHYSICAL
IP rating
IP20
Environment temperature
-20°C-40°C
Dimensions(mm)
L275 x W200 x H350
Dimensions(inch)
L10.83 x W7.87 x H13.78
Net weight
6.4kg (14.11lb)
ACCESSORIES
Power input cable
0.75mm2, PVC sheath, length 1.2mtr
DMX cable
not included (optional)
Hanging omega bracket
included (1pc)
Safety cable
not included (optional)
Product Effects
Detailed Images

Front

Rear

Bottom

Related Products
Packaging & Delivery

PACKAGING

Two kinds of packaging are available. Default: master carton; Optional: flight case as per customers' request.


Inner Box
Product Q'ty: 1 Unit
Net Weight: 6.4 Kg
Gross Weight: 7.2 Kg
Sizes (cm): L42 x W33 x H27


Master Carton
Product Q'ty: 2 Units
Net Weight: 12.8 Kg
Gross Weight: 15.0 Kg
Sizes (cm): L52 x W46 x H36

SHIPPING METHODS

We are able to provide you the most efficient transport and related services to meet the delivery needs. The following shipping methods are available and optional to meet your different requirements.
Shipping methods
Service
Mainly suitable for
Remark
Express
Door-to-Door
sample or small orders
DHL, FedEx, UPS, TNT, EMS ect.
Airfreight
Port-to-Port
medium or large orders
Door-to-Door service is also available
Sea-shipment
Port-to-Port
medium or large orders
Door-to-Door service is also available
Factory Tour

MODERN ASSEMBLY LINES

Total 6 assembly lines. Comprise 1 electronics assembly line, 5 product assembly lines. The assembly workshops and electronic workshops are outstanding both in scale and technology.
Assembly Workshop #1
Assembly Workshop #2
Assembly Workshop #3
Assembly Workshop #4

PRO & DIVERSE TEST EQUIPMENTS

Our laboratories are built strictly according to the demand of ISO/IEC1 standards, with the aim to strengthen the R&D base,
provide true and reliable data for the prephase development appraisal, performance testing and quality evaluation of new
products. In addition, provide continuous inspection for the approved products to ensure the product quality and improve customer satisfaction.
Optics Testing La b
Constant Current Tester
Salt Fog Test Machine
Waterproof Test Machine
Constant Temp & Humi Test
Xenon Lamp Aging Test Machine
Cable and Electronic Tester
Lux Tester
Noise Testing Lab

ADVANCED PRODUCTION MACHINES

Equipped with advanced production and processing machines, including SMT, wave soldering machine, reflow soldering machine, automatic inserters, electronic printing presses, metal plate cutting machine and LED chips mounter etc.
Samsung LED Chips Mounter
Metal Plate Cutting Machine

SHOW ROOM & WAREHOUSE

One show room occupy approx. 200 sq.m. The show room is quarterly renewed in the view for enable every customers who visit our factory can see and know our newest developed products. One raw materials warehouse occupy about 500 sq.m. Two finished products warehouses that total occupy around 600 sq.m.
Show Room
Raw Materials Warehouse
Finished Products Warehouse
FAQ

Do you accept sample order?

Sure, sample orders are welcome.

What about your MOQ (Minimum Order Qty)?

1. For sample order, no MOQ limit.
2. For repeat orders, have MOQ limit. Different products/models have different MOQ. Please ask us in advance.

What about your lead time?

1. Sample order: 2-5 days if samples are in stock; 10-15 days if samples are out of stock.
2. Small order: 10-20 days
3. Medium order: 15-25 days
4. Large order: 25-45 days

What's your warranty?

2 years. Light source made of glass (such as halogen bulb, metal hilide lamp, xenon lamp etc.) not included in warranty.
Within the warranty period: Free repair parts fee, free shipping charge.
Out of the warranty period: Buyers need to bear the cost of repair parts and shipping cost.

How to deal with the faulty?

1. Please send us relevant faulty pictures or videos for our reference.
2. The more details that you can feedback, the better for us to make sure what problem(s) happened about the product.
3. After accurately determining the cause of the failure, we will send your the corresponding repair parts.

Do you accept OEM order?

Sure, OEM orders are welcome as well. However you should meet our OEM minimum order qty.
We can print Logo/Brand/Trademark on products and/or packages as per your requirements.
