- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yuan zhou
-
Dimension(L*W*H):
-
According to different models
-
Weight:
-
KG
-
Product name:
-
Spring Cone Crusher
-
Color:
-
customized
-
Keyword:
-
cone crusher
-
Customization:
-
Accept customization
-
Certificate:
-
ISO
-
Crusher Type:
-
Secondary, tertiary crusher
-
Spare parts supply:
-
Lifelong Time
-
Flowchart:
-
Provide
-
Factory visit:
-
Welcomed warmly
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
ISO9001:2015
Quick Details
-
Application:
-
Mining, construction, Mining , construstion
-
Capacity(t/h):
-
50-230
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuan zhou
-
Dimension(L*W*H):
-
According to different models
-
Weight:
-
KG
-
Product name:
-
Spring Cone Crusher
-
Color:
-
customized
-
Keyword:
-
cone crusher
-
Customization:
-
Accept customization
-
Certificate:
-
ISO
-
Crusher Type:
-
Secondary, tertiary crusher
-
Spare parts supply:
-
Lifelong Time
-
Flowchart:
-
Provide
-
Factory visit:
-
Welcomed warmly
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
ISO9001:2015
Products Description

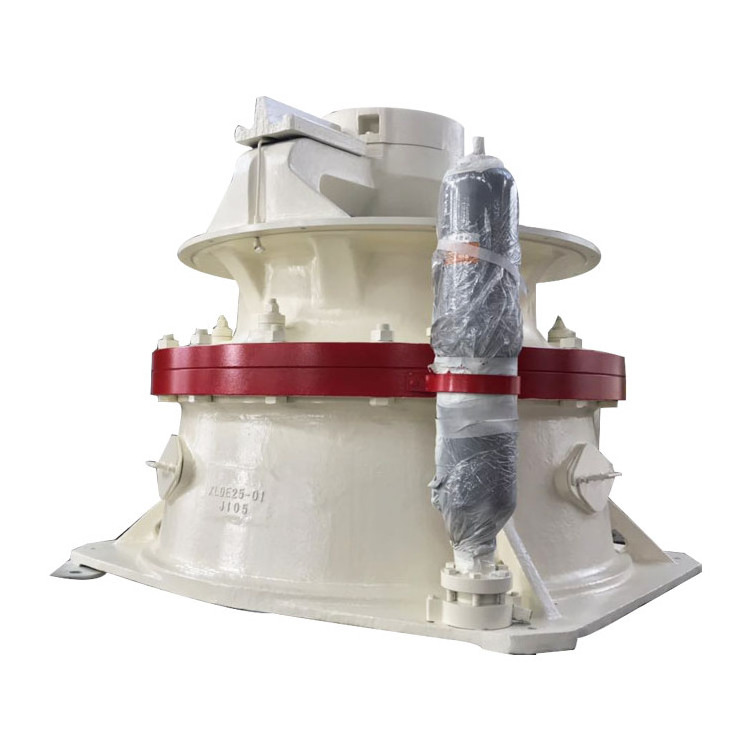

product name:professional mining equipment good price stone cone crusher machine
Spring cone crusher are usually used in secondary crushing and tertiary crushing. Standard type is suitable for medium crushing, medium and short head type is suitable for fine crushing. It is widely used in mineral processing, building materials, water conservancy, chemical industry and other fields.
Applicable materials :iron ore, copper ore, limestone, granite, basalt, diabase, shale, quartz, river pebbles.
This kind of spring cone crusher has compact structure and high production efficiency. The use of bowl bearing has a higher accuracy reserve, and the use of concentrated thin oil lubrication system and a novel dry oil seal dustproof system. When the discharge port size needs to be adjusted, the adjustment can be made by hydraulic cylinder or hand driven winch. The spring safety device can protect the equipment from damage when non-broken material enter into the crushing chamber.
Applicable materials :iron ore, copper ore, limestone, granite, basalt, diabase, shale, quartz, river pebbles.
This kind of spring cone crusher has compact structure and high production efficiency. The use of bowl bearing has a higher accuracy reserve, and the use of concentrated thin oil lubrication system and a novel dry oil seal dustproof system. When the discharge port size needs to be adjusted, the adjustment can be made by hydraulic cylinder or hand driven winch. The spring safety device can protect the equipment from damage when non-broken material enter into the crushing chamber.
|
Model
|
|
Max. Feeding Size (mm)
|
Adjusting Range of Discharge Opening (mm)
|
Capacity (t/h)
|
Power (kw)
|
Weight (t)
|
Overall Dimensions (mm)
|
|
|
PYB
|
900
|
115
|
15-50
|
50-90
|
55
|
10.2
|
2100*1640*2350
|
|
|
PYZ
|
|
60
|
5-35
|
20-65
|
|
10.2
|
|
|
|
PYD
|
|
40
|
3-13
|
14-50
|
|
10.3
|
|
|
|
PYB
|
1200
|
145
|
20-50
|
110-168
|
110
|
23.3
|
2810*2300*2780
|
|
|
PYZ
|
|
100
|
8-25
|
42-134
|
|
23.8
|
|
|
|
PYD
|
|
50
|
3-15
|
18-105
|
|
23.9
|
|
|
|
PYB
|
1750
|
215
|
25-60
|
280-480
|
155
|
49.6
|
3910*2950*3540
|
|
|
PYZ
|
|
185
|
10-30
|
115-320
|
|
50.3
|
|
|
|
PYD
|
|
85
|
5-15
|
75-230
|
|
50.3
|
|
|
Advantages
1. Good material granularity
2. The discharge port adjustment is convenient and fast
2. The discharge port adjustment is convenient and fast
3. Anti-overload protection of iron
4. Rolling mortar wall wear uniform and long service life
4. Rolling mortar wall wear uniform and long service life
5. Low product maintenance cost
6. Adopted dry oil or water seal
6. Adopted dry oil or water seal
7. Stable operation and high reliability
