Quick Details
-
Model Number:
-
JRA-16+2BZQN
-
Place of Origin:
-
GUA
-
Model:
-
JRA-16+2BZQN
-
PoE Ports:
-
16+2
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
DC 52V 250W
-
Dimensions (W x D x H):
-
270*181*44MM
-
Weight:
-
1.6KG
-
MOQ:
-
2 Pcs
-
Color:
-
Balck
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Half-Duplex
-
Brand Name:
-
JINGRUIAN
-
Model Number:
-
JRA-16+2BZQN
-
Place of Origin:
-
GUA
-
Model:
-
JRA-16+2BZQN
-
PoE Ports:
-
16+2
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
DC 52V 250W
-
Dimensions (W x D x H):
-
270*181*44MM
-
Weight:
-
1.6KG
-
MOQ:
-
2 Pcs
-
Color:
-
Balck
|

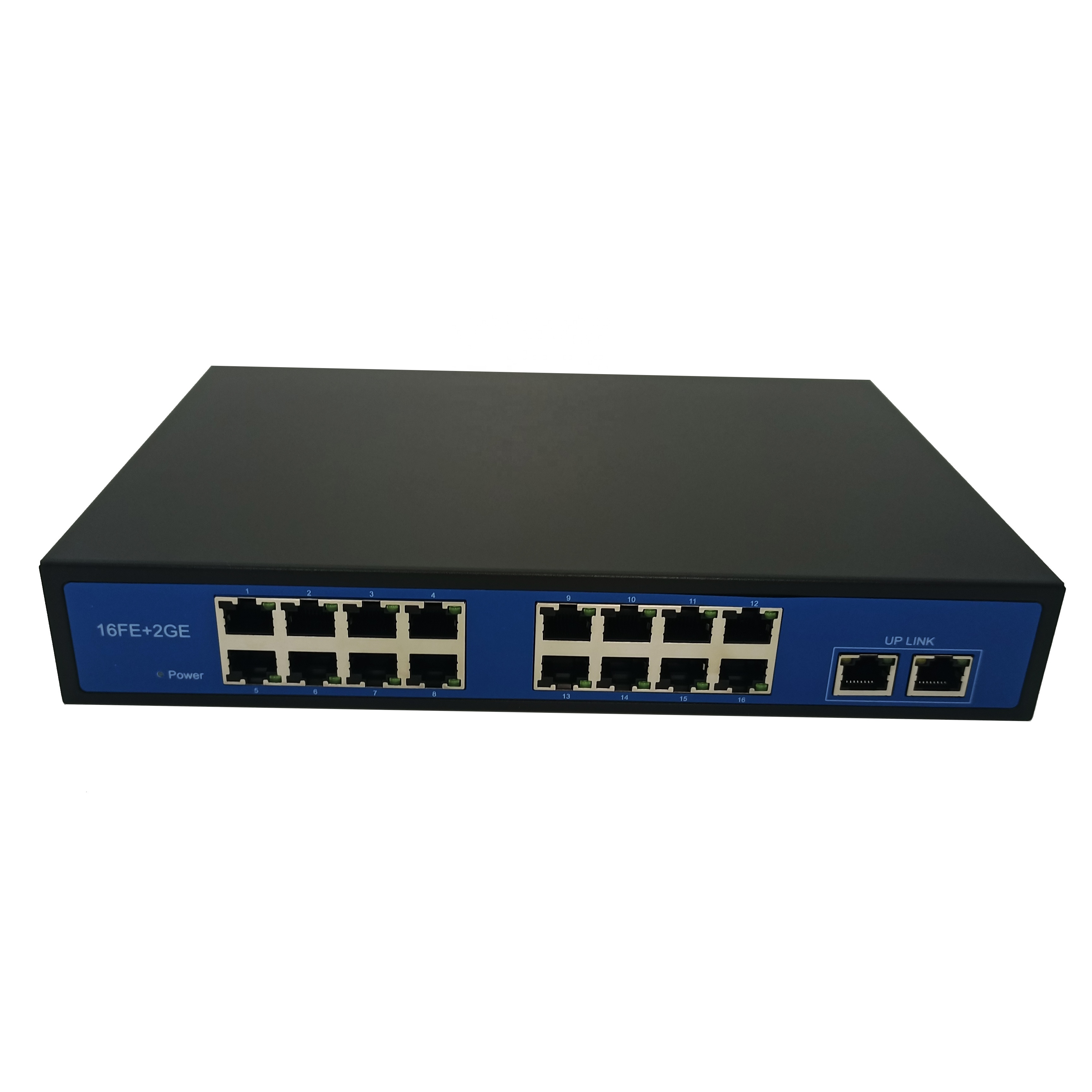

16+2 POE switch
|
|
|
|
Product Name
|
16+2 POE power supply switch
|
|
|
Product Model
|
JRA-16+2BZQN
|
|
|
POE Switch port
|
1-16 ports support IEEE 802.3af/at(15.4W/30W) network power supply
|
|
|
SEP Port
|
No
|
|
|
POE Switch port output power
|
15.4W/30W IEEE802.3af/at
|
|
|
POE switch power transmission core
|
1/2 +, 3/6-line pair (optional 4/5 +, 7/8-line pair)
|
|
|
Port description
|
16 Ethernet ports; 2 Gigabit electrical ports
|
|
|
POE Switch connection standard
|
IEEE802.3af/IEEE802.3at
|
|
|
Power transmission distance of POE switch
|
≤200米
|
|
|
POE switch type
|
End jumper method
|
|
|
Network standard
|
IEEE802.3、IEEE802.3u、IEEE802.3x、IEEE802.3af/at
|
|
|
Network media
|
Class 5 and above unshielded twisted pair
|
|
|
Network signal distance
|
Transmission ≤ 150 m
|
|
|
Backplane bandwidth
|
7.2Gbps
|
|
|
Forwarding Rate
|
10Base-T:14880PPS/port 100Base-TX:148800PPS/port
|
|
|
MAC address
|
2KMAC
|
|
|
Port function
|
automatic learning and aging IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
|
|
|
Indicator light
|
Each port has one Link/Act and POE switch indicator Each device has one Power indicator
|
|
|
Operating temperature
|
0℃～40℃
|
|
|
Storage Temperature
|
-40℃～70℃
|
|
|
Working humidity
|
10% ~ 90% RH (no condensation)
|
|
|
Storage humidity
|
5% ~ 90% RH (no condensation)
|
|
|
Power supply
|
Built-in power supply (AC100-240V input, DC52V250W output)
|
|
|
Power consumption of the whole machine
|
≤250W
|
|
