Quick Details
-
Max speed:
-
45-75 km/hour
-
Color:
-
Red,black,blue,white,camo customized
-
Transmission:
-
Auto Cluch Chain Drive
-
Brake:
-
Hydraulic Disc Brake
-
Export Markets:
-
South-east Asia
-
battery:
-
12V,9 AH
-
Oil tank:
-
9 L
-
Front & Rear tyre size:
-
165/70-10/ 225/40-10
-
Suspension:
-
235x120x88cm
Quick Details
-
Brand Name:
-
JINLING
-
Place of Origin:
-
Zhejiang, China
-
Engine type:
-
4-strokes AUTOMATIC wangye brand
-
Max speed:
-
45-75 km/hour
-
Color:
-
Red,black,blue,white,camo customized
-
Transmission:
-
Auto Cluch Chain Drive
-
Brake:
-
Hydraulic Disc Brake
-
Export Markets:
-
South-east Asia
-
battery:
-
12V,9 AH
-
Oil tank:
-
9 L
-
Front & Rear tyre size:
-
165/70-10/ 225/40-10
-
Suspension:
-
235x120x88cm

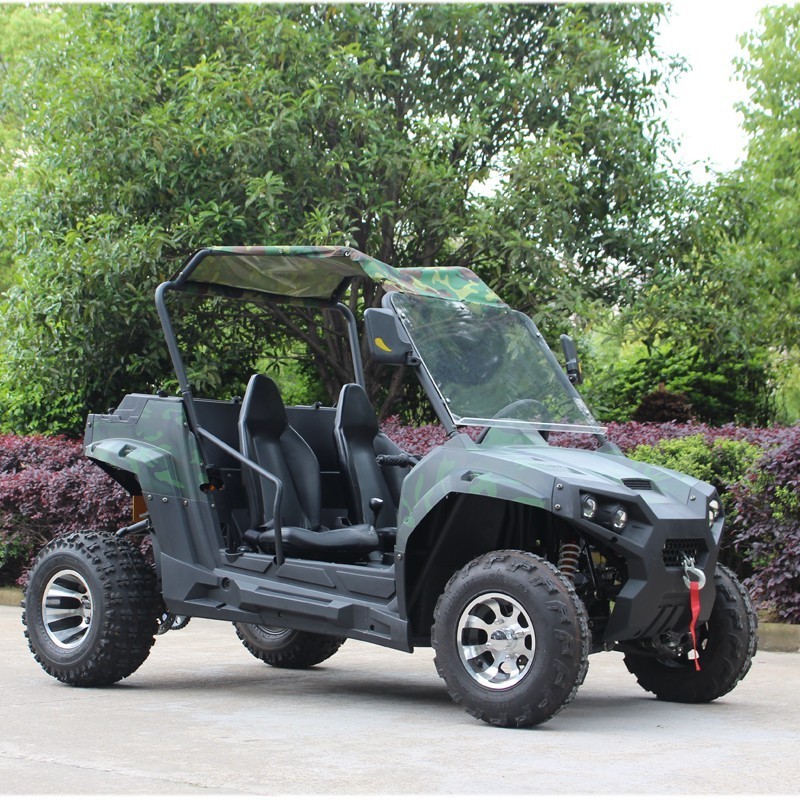

JLU-02 2016 150/200/300CC MINI atv dirt racing go kart for sale
| 1. engine type: 150cc-200CC |
| 2.max torque :10.1 N•m/6000 r/min-10.2 N•m/5000 r/min |
| 3. max power :8 kW/8000 r/min-7.6 kW/7000 r/min |
| 4. ignition type : CDI |
| 5. transmission :automatic,chain |
| 6.Brake (Front/Rear):Dis/Dis |
| 7. starting system :Electric start |
| 8. battery spec :12V,9AH |
| 9. front suspension details :double A x swing arm |
| 10. rear suspension details :air chamber shock absorbers, |
| 11. front tire spec : 165/70-10 |
| 12. rear tires spec : 225/40-10 |
| 13. vehicle dimensions :235x120x88153cm |
| 14. seat height from ground :55 mm |
| 15. ground clearance :120 mm |
| 16. load capacity :400 KG |
| 17. fuel tank capacity :9L |
| 18.gross weight in carton: 200 KG |
| 19. net weight : 200KG |
| 20. packing size:240x127x102cm |
1. For the sample : we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. The ATV(Quad) Color can choose by yourself on the ordinary colors,Also can do the custom-made
3. Shipping :General by the sea shipping, port to port. can't do the door to door.
4. The Package : The bike have been 90% assembled, with the accessory kit can be do rapid
assembly. Don't need professional tools and mechanic.
5. Delivery : we have no stock, all of these ATV is production by the order, Just for one order, the production time general will take about 15-20days.
6. If for the EEC Model , can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO).
7. Warranty : Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us.
1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. Warranty: engine and the frame is one year. the other is 5 months.
JLU-02 2016 150/200/300CC MINI atv dirt racing go kart for sale
