Quick Details
-
Brand Name:
-
PEK
-
Product name:
-
High precision Gear Rack and Pinion for cnc woodworking machinery
-
Type:
-
Grinding or Milling
-
Model:
-
M1.5 M2 M3 M4 M6
-
Teeth Type:
-
Straight\Helical
-
Heat treatment:
-
Carburizing Quenching
-
Hardness:
-
HRC45-50
-
After Warranty Service:
-
Spare parts
Quick Details
-
Weight (KG):
-
5
-
Place of Origin:
-
Shandong, China, Jinan
-
Model Number:
-
M1.5 M2 M3 M4 M6
-
Brand Name:
-
PEK
-
Product name:
-
High precision Gear Rack and Pinion for cnc woodworking machinery
-
Type:
-
Grinding or Milling
-
Model:
-
M1.5 M2 M3 M4 M6
-
Teeth Type:
-
Straight\Helical
-
Heat treatment:
-
Carburizing Quenching
-
Hardness:
-
HRC45-50
-
After Warranty Service:
-
Spare parts
Jinan manufacture High precision Gear Rack and Pinion for cnc woodworking machinery

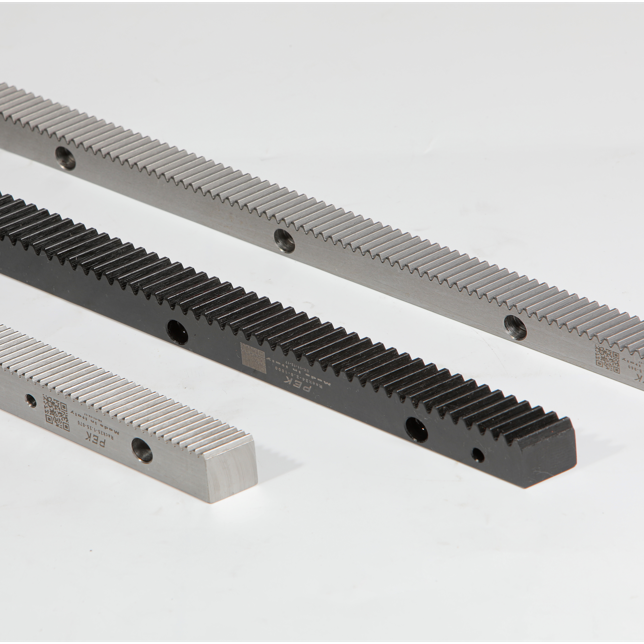

The producing character of PEK gear racks.
1. Gear rack length: the longest is 4000mm without joint. It can be jointed to any length.
2. Material: Steel
3. Module: 0.3-8 (pitch from 0.942-25.12mm, DP 3.175-85);
4. Surface: zinc (galvanized), black, chromium plating, nickel plating, quenching and tempering etc.
5. Quality: stable and high: accumulated tolerance 0.1mm per 1000mm for normal quality;Accumulated tolerance 0.02mm per 1000mm for 4 sides ground.Prices for above quality are very competitive for us.
6. Heat treatment: teeth can be hardened to HRC 43-50.
|
Module
|
M1.5 M2 M3 M4 M6
|
|
Quality
|
Tolerance 0.1mm per 1000mm for normal quality
|
|
Type
|
Helical Teeth
|
|
Application
|
CNC Gear Hobbing Machines,NC Gear Shapers(Gealson,Moude), NC lathe, NC gear Shaving machines, NC gear millling, Nc gear grinding Machines and many kinds of gear related machines.
|
Original PEK helical gear rack and pinion
This offers convenience and many cross merchandising opportunities. We maintain the belieif in "Honesty and serving the customer" each process, as well as im plemented with the most professionalized quality control.
Shandong Jingrui Transmission Technology Co.,Ltd.
is a professional manufacturer of linear motion systems and automation components with more than 8 years experiences. Our factory covers 15000 square meters and have the modern production line with world advanced drive systems of Siemens to assure the products high precision.
We produce a wide-ranging of linear guide rail, linear block or carriage, high precision ball screw, end supports unit, gear rack, and ball slide linear bearings so on. All components are in standard lengths or cut into to your desired lengths as part of a complete assembly.
If you need other hot product except for rack and pinion, please contact us.
Package:
1. Standard package: Industrial packaging: Anti-rusty oil + PE bad + Wooden case
2. Sample: Anti-rusty oil + PE bad + Carton box
3. Customized Packaging
Q: Are you trading company or manufacturer ?
A: We are factory. We welcome your visiting to establish a long-term business relationship with you.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How can I get a sample to check your quality ?
A: After price confirmed,sample order is available to check our quality.we could offer the sample for free charge but do not pay the cost of freight.
Q: What is the payment team?
A: T/T, L/C at sight, PayPal, etc.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
