Quick Details
-
Input:
-
4/8/12/16/20/24 tuners
-
Application:
-
IPTV
-
Product name:
-
Modulator
-
Output:
-
4 or 8 carrier DVB-C/T, ISDB-T, ATSC
-
Support:
-
LOGO
-
Streaming Protocol:
-
UDP/RTP protocol
-
Support system:
-
Androld System
-
Resolution:
-
1920x1080/1280x720/1280x1024/1280x960/704x576
-
Certification:
-
CE/FCC/CCC/ISO9001
-
Function:
-
modulation
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5011M
-
Input:
-
4/8/12/16/20/24 tuners
-
Application:
-
IPTV
-
Product name:
-
Modulator
-
Output:
-
4 or 8 carrier DVB-C/T, ISDB-T, ATSC
-
Support:
-
LOGO
-
Streaming Protocol:
-
UDP/RTP protocol
-
Support system:
-
Androld System
-
Resolution:
-
1920x1080/1280x720/1280x1024/1280x960/704x576
-
Certification:
-
CE/FCC/CCC/ISO9001
-
Function:
-
modulation

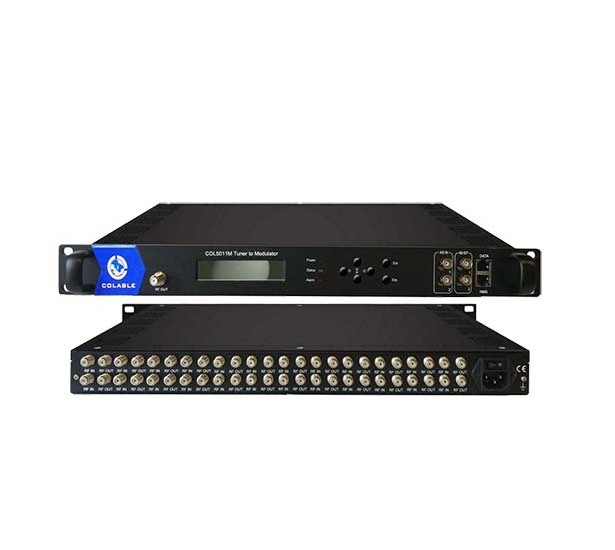

COL5011M 12 S2 Tuners to QAM digital video broadcasting
Product Description
Outline
COL5011M Tuner input, RF 4 carriers output, support Gigabit IP output at the same time, mainly used for interface conversion equipment of digital TV head end. The device integrates demodulation and modulation functions in one, can simultaneously demodulate and package up to 24 Tuner input TS stream into an IP packet, Supports 2 ASI inputs at the same time. And can modulate all inputs with 4 carrier output for different modulation way, such as DVB-C/T, ISDB-T, ATSC---all modulation ways can be supported meantime, client can choose any according to requirement
Main Features
* Decode MPEG-2 and MPEG-4 Transport Streams Packaged into IP Packets
* Supports 1 MPTS output(Independent ASI output)
* Supports 4/8/12/16/20/24 Tuner inputs
* Supports 4 or 8 carrierDVB-C/T, ISDB-T, ATSC output
* Supports 2 ASI inputs
* Supports 2 channel independent ASI output
* Supports Gigabit IP output, UDP/RTP protocol
COL5011M Tuner input, RF 4 carriers output, support Gigabit IP output at the same time, mainly used for interface conversion equipment of digital TV head end. The device integrates demodulation and modulation functions in one, can simultaneously demodulate and package up to 24 Tuner input TS stream into an IP packet, Supports 2 ASI inputs at the same time. And can modulate all inputs with 4 carrier output for different modulation way, such as DVB-C/T, ISDB-T, ATSC---all modulation ways can be supported meantime, client can choose any according to requirement
Main Features
* Decode MPEG-2 and MPEG-4 Transport Streams Packaged into IP Packets
* Supports 1 MPTS output(Independent ASI output)
* Supports 4/8/12/16/20/24 Tuner inputs
* Supports 4 or 8 carrierDVB-C/T, ISDB-T, ATSC output
* Supports 2 ASI inputs
* Supports 2 channel independent ASI output
* Supports Gigabit IP output, UDP/RTP protocol
Specification
|
Input
|
4/8/12/16/20/24 tuners input+2 ASI input
|
|
|
||
|
Tuner Section
|
|
Input Frequency
|
950-2150MHz
|
||
|
|
|
Symbol rate
|
DVB-S: QPSK 2~45Mbauds;
DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds |
||
|
|
|
Code rate
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
||
|
|
|
Constellation
|
QPSK, 8PSK
|
||
|
|
DVB-T/T2
|
Frequency In
|
30MHz ~999.999 MHz
|
||
|
|
|
Bandwidth
|
6/7/8 M bandwidth
|
||
|
|
ATSC-T
|
Input Frequency
|
54MHz~858MHz
|
||
|
|
|
Bandwidth
|
6M bandwidth
|
||
|
|
ISDB-T
|
Input Frequency
|
30-1000MHz
|
||
|
|
DVB-C
|
Standard
|
J.83A(DVB-C), J.83B, J.83C
|
||
|
|
|
Frequency In
|
30 MHz~1000 MHz
|
||
|
|
|
Constellation
|
16/32/64/128/256 QAM
|
||
|
Output
|
4 or 8 DVB-T/4 DVB-C/4 ATSC/4 ISDBT
|
|
|
||
|
|
1MPTS IP mirrored output over UDP and RTP/RTSP protocol through IP port
|
|
|
||
|
|
2 ASI output
|
|
|
||
|
BISS Descrambling
|
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
|
|
|
||
Packing & Delivery
Generally speaking, the goods will be sent out within 3-5 days after receiving the remittance, and we will notify you as soon
as possible, and any logistics information updates will also be notified to you at any time. You can choose the logistics
company that you think is most suitable.
Brand new Carton. match the right carton according to the product size, the carton thickness is moderate, can support the
long-distance transportation of goods, and save the customer's transportation cost.
