Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti Glass
-
Model Number:
-

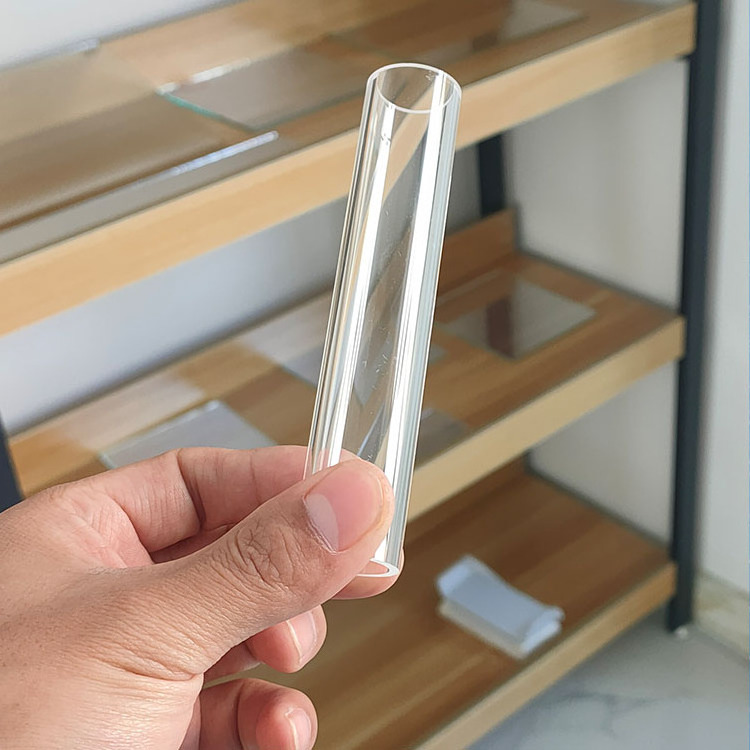

Quartz Glass Tube
-
Color:
-
Clear
-
Material:
-
99.99% Pure Quartz
-
Work Temperature:
-
1250 Degrees Celsius
-
Style:
-
Customized
-
Purity:
-
>99.99% Sio2
-
Processing:
-
Deep processing avaliable
-
Sample:
-
Avaiable
-
Certification:
-
ISO9001
-
Usage:
-
Clear Quartz Pipe
-
Density:
-
2.2g/cm3
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
quartz glass tube
-
Outside Diameter:
-
1-600mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti Glass
-
Model Number:
-
Quartz Glass Tube
-
Color:
-
Clear
-
Material:
-
99.99% Pure Quartz
-
Work Temperature:
-
1250 Degrees Celsius
-
Style:
-
Customized
-
Purity:
-
>99.99% Sio2
-
Processing:
-
Deep processing avaliable
-
Sample:
-
Avaiable
-
Certification:
-
ISO9001
-
Usage:
-
Clear Quartz Pipe
-
Density:
-
2.2g/cm3
|
Coefficient of Expansion(20°C~350°C)
|
5.5*10-7/°C
|
|
Softening Point( viscosity)
|
1750°C
|
|
Annealing Point
|
1215°C
|
|
Deformation Temperature(long time heat retaining)
|
1120°C
|
|
Thermal Conductivity(W/m°C,20°C)
|
1.4
|
|
Specific Heat(J/kg,20°C)
|
670
|
|
Material
|
Silicon Dioxide (Natural Quartz )
|
|
Surface
|
No Air Bubble ,no process
|
|
PPM grade
|
Controlled 10/20/100 PPM
|
|
Thickness
|
0.5 MM-100 MM
|
|
Application
|
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields. |
Product Description
Advantages of quartz glass
1.
High Temperature Resistance
The softening point temperature of quartz glass is about 1725︒C. It can be used for a long time at 1100︒C, and the resistant temperature for a short time is 1450 1450︒C.
2.
Corrosion Resistant
Apart from hydrofluoric acid, quartz glass has almost no chemical reaction with other acids. Its acid resistantce is 30 times than ceramics and 150 times than stainless steel. Especially its chemical stability at high temperature is unmatched by any other engineering materials.
3. Good Thermal Stability
The coefficient of thermal expansion of the glass is so small that it can withstand drastic temperature changes. Heating quartz glass to about 1100︒C will not crack when it is put into normal temperature water.
4.Good Light Transmission
The quartz glass has good transmission from ultraviolet ray to infrared ray. and the transmission of visible light is over 93%. Especially in the ultraviolet spectrum, the maximum transmittance is over 80.quartz glass
Quartz glass has a series of excellent physical and chemical properties, high temperature resistance,anti-corrosive, good light transmission, good electrical insulation properties. Because of the excellent physical and chemical properties, it is widely applied in electric light sources,semiconductor,optical communications,military,metallurgy,building materials,chemical,mechanical,electrical, environmental protection ect,such as manufacturing halogen lamp, mercury lamp, metal halide lamp,light tube of copy machine,electric light source products stage lighting as well as producing chemical pipelines and heat-resistant utensils, etc.
