Quick Details
-
Design:
-
Horziontal cold chamber
-
Suitable mental:
-
Copper, Aluminum,Zinc or alloy
-
Size of machine:
-
2250 x 2160 x 1560 mm
-
Technology:
-
Resin sand technology
-
Application fields:
-
valves,sanitaryware,door hardware,household appliances auto parts ect.
-
Feature:
-
Gravity Casting
-
Foundry Machine:
-
Shell Sand Casting Machine
Quick Details
-
Place of Origin:
-
Fujian, China
-
Type:
-
casting machine
-
Package:
-
anti-rust oil ,pp cover,wooden package
-
Design:
-
Horziontal cold chamber
-
Suitable mental:
-
Copper, Aluminum,Zinc or alloy
-
Size of machine:
-
2250 x 2160 x 1560 mm
-
Technology:
-
Resin sand technology
-
Application fields:
-
valves,sanitaryware,door hardware,household appliances auto parts ect.
-
Feature:
-
Gravity Casting
-
Foundry Machine:
-
Shell Sand Casting Machine

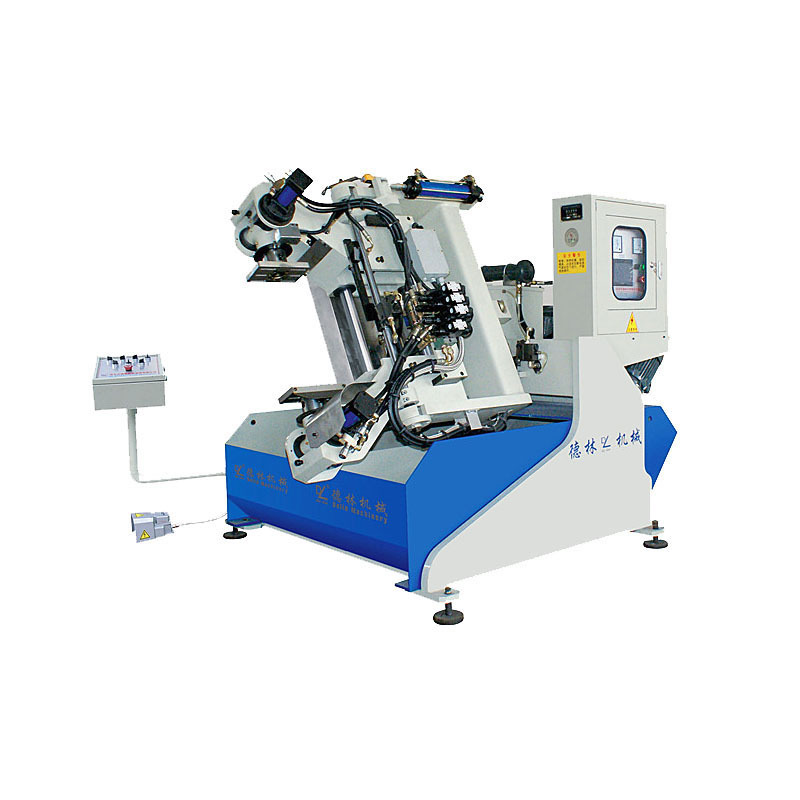

Die Casting Machine Main Function Features
Machines are suitable for producing faucet,household appliances,plumbing fittings,hardware,sanitary ware,auto parts which gravity model casting with brass,zinc,aluminium,steel,iron ore and alloy,ferrous metal and non-ferrous metal.
1.Circuits are all controlled by PLC,data setting adopts touch screen ,electrical components are imported from Japan and hydraulic components are as well imported from outside.
2. For gravity model casting with brass and ferroalloy.
3. Front casting,lateral casting and secondary casting are optional.
4. Individual cooling time of model is adjustable.
5. The dismantling ,assembly and cleaning of model are convenient.
6. Two functions of manual and automatic circulation are available.Totalizing counter and preset counter are arranged to record the piece number of on duty production.
7. Adjustment range of model is defined to make the using of different models easy and reduce requirement of model's exterior physical dimension.
8. This casting machine can store 100 sets model casting operation programs and you can set your password.
Casting Macine Specification
| Biggest Size of The Mould | Φ 550 mm |
| Heaviest Weight of The Mould | 150 kg |
| Largest Merger Distance | ≤ 280 mm |
| Hydraulic Pressure | 40 - 60 kPa |
| Angle of Lateral Casting | 0° - 90° |
| Frontal Casting Angle | 0° - 110° |
| Hydraulic Lube | 165 L |
| Net Weight of The Whole Machine | 2000 kg |
|
Size of Appearance of Machine ( L * W * H ) |
2350 × 2100 × 1860 mm |
| Installing Top Core Available | Itinerary of Top Core 20 mm |
| Total Power | 5.5 kw |
* some parameters can be customised by client's requirement.
Finished Products Showing
Ferrous and non-ferrous metal foundry production series
We have the whole foundry produciton line machinery,which widely used to making and processing plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.
Main equipments : automatic SPM machining equipment , such as horizontal CNC drilling / milling / tapping machine ; Double head drilling and tapping machine, automatic sand moulding machine, low-pressure die casting machine, gravity casting machine, furnace, core shooting machine, mixing sand machine, shot blasting machine (abrator),polishing machine etc.
