Quick Details
-
Max. Turned Length (mm):
-
3000 mm
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC 380V 3 phase 50HZ/60HZ
-
Weight (KG):
-
1600
-
Power (kW):
-
5.5 - 7.5
-
Product name:
-
Automatic CNC Woodworking Lathe for Wood Processing Baseball Bat
-
Machine body:
-
Cast iron
-
Max. turning diameter:
-
300mm
-
Max. working length:
-
1500mm
-
Driving Motor:
-
Step motor 450B+450C
-
Driver:
-
Large step driver Yako 2811
-
Control system:
-
LCD
-
Transimission:
-
Rack Gear
-
Software:
-
Artcam/Type3
-
Certification:
-
CE
Quick Details
-
Max. Swing Diameter (mm):
-
300 mm
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Place of Origin:
-
Shandong, China
-
Max. Turned Length (mm):
-
3000 mm
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC 380V 3 phase 50HZ/60HZ
-
Weight (KG):
-
1600
-
Power (kW):
-
5.5 - 7.5
-
Product name:
-
Automatic CNC Woodworking Lathe for Wood Processing Baseball Bat
-
Machine body:
-
Cast iron
-
Max. turning diameter:
-
300mm
-
Max. working length:
-
1500mm
-
Driving Motor:
-
Step motor 450B+450C
-
Driver:
-
Large step driver Yako 2811
-
Control system:
-
LCD
-
Transimission:
-
Rack Gear
-
Software:
-
Artcam/Type3
-
Certification:
-
CE

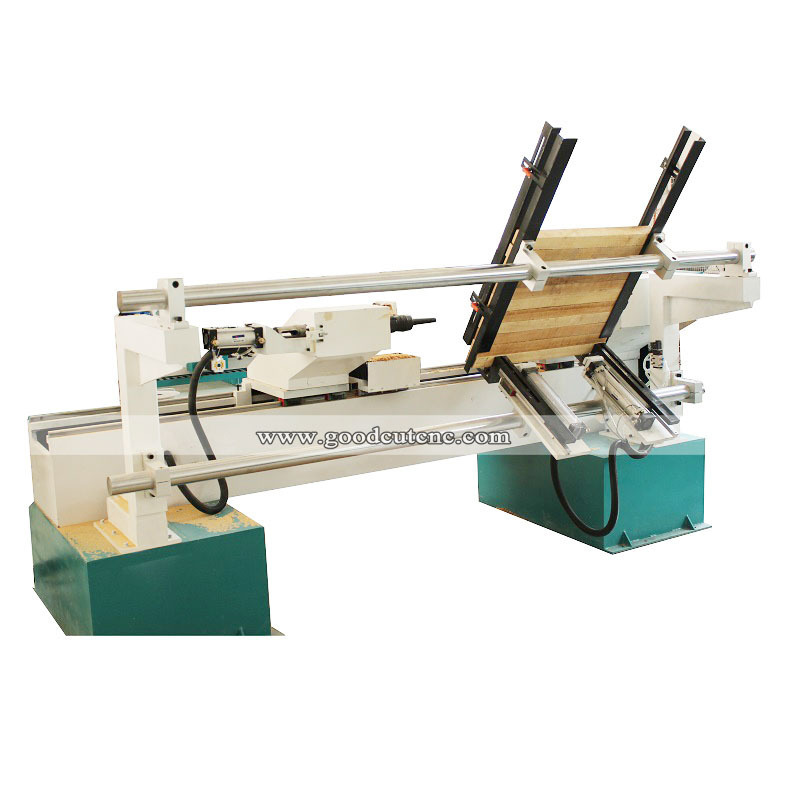

China GoodCut Automatic CNC Woodworking Lathe for Wood Processing Baseball Bat Billiard Cues Poles Rolling Pin Wooden Brush
Parameter:
| Model No. | GC-1530WL--Automatic loading and unloading lathe |
| Machine structure | Cast iron and welded steel |
| Working length | 1500mm (2000mm and 2500mm are optional) |
| Turning diameter | 300mm |
| Quantity of axis | Single axis |
| Quantity of cutters | 2 (1 for rough cutting,the other for finishing cutting). |
| Engraving spindle | 3.5KW, ER25, air cooled, 2-18000rpm |
| Max.feeding rate | 2000mm/min |
| Minimum setting unit | 0.1mm |
| Spindle motor power | 5.5KW |
| Voltage | 380V or 220V, 3 phase,50-60Hz |
| Guide rails | Taiwan made linear square guide rails |
| Transmit way | Taiwan made ballscrews (better than gear rack) |
| Control system | Advanced controller with LCD screen |
| Lubricate system | Yes |
| Machine dimension | 3300x1500x1300mm |
| Gross weight | 1500kg |
Feature:
1)Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials' vibration.
2) Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality. (Double spindles has stop to produce again. In fact,the modle is not good to the turning the wood products, it is very slow when turning the big sizes column, and there have many defects at design to the Double Spindle lathe, Such as the Sanding, Centering, Programming,Upper Spindle Structural Stability etc)
3) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4) Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error effectively.
5) High Class frequency converter with high stability
6) Operation system developed by ourself with patent is easy to operate.
7) Set special automatic tool changer . Conveniently and easily to change different turning tools for your different requirement.
Application:
cnc wood lathe/woodworking machine/baseball bat cnc wood turning lathe Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
