Quick Details
-
Model Number:
-
ZD760-LM-15-20
-
Certification:
-
CE;TUV;ISO9001
-
Voltage:
-
220V,380V,400V
-
Flow Rate:
-
0.018~0.2m3/s
-
design head:
-
1.5m~5.5m
-
Rated power:
-
1kw/1.5kw/2kw/3kw/5KW
-
Certificate:
-
IS09001/CE/TUV
-
Flow Rate(m3/s):
-
0.018~0.2m3/s
-
Speed:
-
1000-1500rpm
-
Water Head(m):
-
1.5-25
-
Working system:
-
off grid
-
Efficiency:
-
75%-85%
-
Rated Voltage:
-
110v,220v,240v,380v400v
-
Color:
-
Yellow
-
Keyword:
-
3kw kaplan turbine
Quick Details
-
Power:
-
1kw~5kw
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Forster
-
Model Number:
-
ZD760-LM-15-20
-
Certification:
-
CE;TUV;ISO9001
-
Voltage:
-
220V,380V,400V
-
Flow Rate:
-
0.018~0.2m3/s
-
design head:
-
1.5m~5.5m
-
Rated power:
-
1kw/1.5kw/2kw/3kw/5KW
-
Certificate:
-
IS09001/CE/TUV
-
Flow Rate(m3/s):
-
0.018~0.2m3/s
-
Speed:
-
1000-1500rpm
-
Water Head(m):
-
1.5-25
-
Working system:
-
off grid
-
Efficiency:
-
75%-85%
-
Rated Voltage:
-
110v,220v,240v,380v400v
-
Color:
-
Yellow
-
Keyword:
-
3kw kaplan turbine
Factory Supply High Quality Hot Sales Micro Low Head 1Kw 2Kw 3Kw 5Kw Hydro Kaplan Turbine
Our main products included:
1.Kaplan turbine generators series.
2.Turgo turbine generators series,e.g. vertical type horizontal type.
3.Tubular turbine generators series ,e.g. Bulb type and shaft extension type.
4. Francis turbine generators series.
5.Pelton turbine generators series and double turbine generators series and so on.
6.Other auxiliary equipment for hydropower station, such as generator, control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc
Product features :
1. Suitable for the development of low water head (2-30m) larger flow of water resources;
2. Appliceable to large and small head change load changes of power plant;
3. For the low head,head and power changed greatly power station,can stably under various working conditions;
4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.
Product parameters:
| Micro 600w-5kw Hydro Kaplan turbine parameter table | ||||||
| Model | water head(m) | Flow rate(m³) | Power(kw) | Speed(r/min) | Runner pages(mm) | Note |
| ZD760-LM-12 | 1.2-2.5 | 0.018-0.05 | 0.6 | 500-1500 | 80 | permanent magnet |
| ZD760-LM-15 | 1.5-3 | 0.02-0.07 | 1 | 500-1500 | 90 | permanent magnet |
| ZD760-LM-15 | 1.5-3 | 0.03-0.08 | 1.5 | 500-1500 | 90 | permanent magnet |
| ZD760-LM-(18-20) | 2-4 | 0.08-0.1 | 2 | 500-1500 | 100 | permanent magnet |
| ZD760-LM-(18-20) | 2-4 | 0.08-0.15 | 3 | 500-1500 | 100 | permanent magnet |
| ZD760-LM-20 | 2.5-5.5 | 0.1-0.15 | 5 | 500-1500 | 150 | permanent magnet |
| For more kaplan turbine information, please contact our sales professionals | ||||||

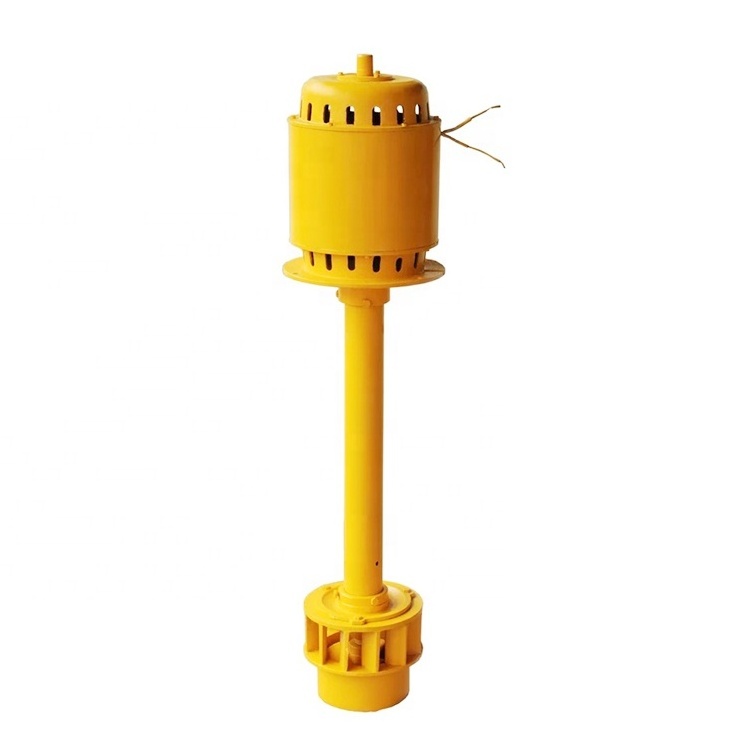

Product pictuers:
It is equipped with an automatic voltage regulator for hydroelectric generators to prevent over-voltage and burn out household appliances and ensure stable voltage output.
Q1, Which turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power you need
, voltage, on grid or off grid operation, we will propose a solution.
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
Q4,Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6,How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the model you are purchasing.
Q7,Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website.
website address: www.fstgenerator.com
For more Low head micro hydro kaplan turbine details, please contact our business manager
Sales Manager__George Huang
