Quick Details
-
Brand Name:
-
Honeywell
-
Model Number:
-
RAEGuard2 PID
-
Detection principle:
-
photoionization
-
sample mode:
-
Pumsuction / diffusion
-
levels of protection:
-
IP65
-
output singal:
-
4 ~ 20 mA, fine-tunable
-
weight:
-
3.5kg
-
Shell Material:
-
stainless steel
Quick Details
-
Type:
-
Pump suction/diffusion type
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honeywell
-
Model Number:
-
RAEGuard2 PID
-
Detection principle:
-
photoionization
-
sample mode:
-
Pumsuction / diffusion
-
levels of protection:
-
IP65
-
output singal:
-
4 ~ 20 mA, fine-tunable
-
weight:
-
3.5kg
-
Shell Material:
-
stainless steel

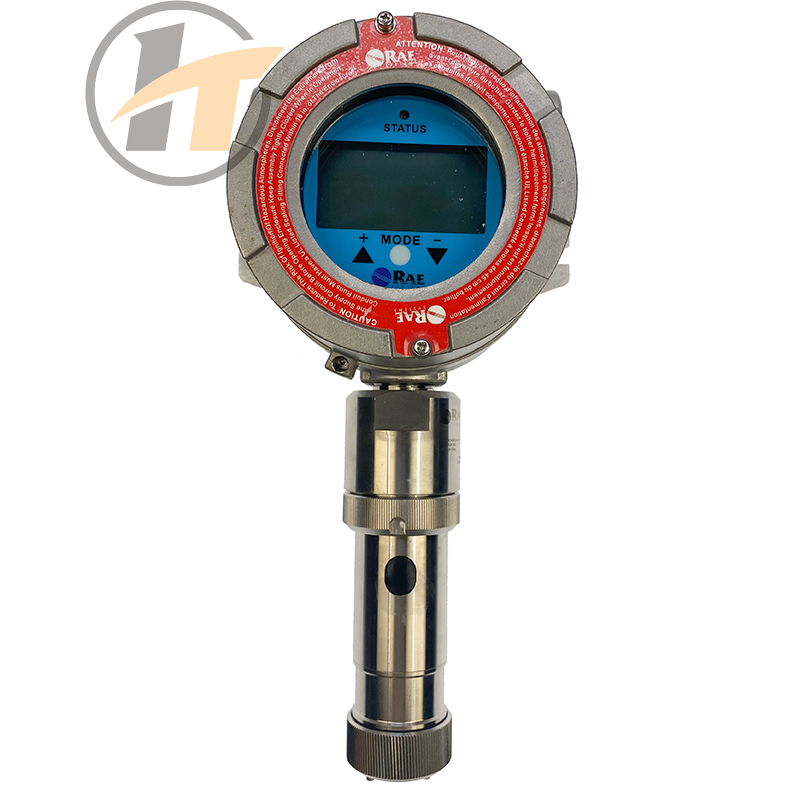

RAEGuard 2 PIDis an engarte gas detecter wth an extlioson prof host and
aninernsicaly sate optcalin irne grrt sensor,fcod inssallaten method in temns
ctaxmmal tunchens, he dotoctor has tincsons such as mage and not dispiay
and lbcalsound and ight statis hdcaten.AI the same tme,the desctor adopes
a tree kaymagnete rod eoternal adhrstmert method to make the operatorPersomel
ean converienty cattrote and malntain on see wthout opering he coer.
| Detecition Principle | photoionization |
| sensor | intelligence sensor |
| Sampling method | Pump suction/diffusion type |
| range | 0~100ppm : 0~1000ppm (can be freely set) |
| Working power supply | 10~28VDC |
| power | 210mA@24VDC |
| output signal | 4- 20mA, adjustable for fine adjustment |
| Load impedance | 600Q |
| Other outputs |
RS485 Modbus : Three stage passive relay 30VDC 2A,normally open/normally closed optiona |
| check the accuracy | 39%F.S. |
| Response time (T90) | <15s |
| electrical interface | 3/4" NPTM |
| Installation method | 2 "Riser/wall mounted installation |
| Display method |
128 X 64 dot matrix LCD, supporting graphic and text display |
| protection grade | IP65 |
| ambient temperature | -40 C*+55 C (sensor) |
| ambient humidity | 0-95% RH (without condensation) |
| ambient pressure | 86kPa ~106kPa |
| Overall dimensions | 257mmX 201mm X 107mm (HWD) |
| Shell Material | stainless steel |
| weight | ±3.5kg |
| ATEX . |
host:Exd [ia Ga] ICT4 Gb Intelligent sensors: Ex ia ICT4;Exia 1 |
| UL/CSA |
Class I, Div. 1, Groups ABCD T4 |
| IECEx |
host:Exd [ia Ga] ICT4 Gb Intelligent sensors: Ex ia IC T4,Ga;Ex ia 1 |
| ATEX |
host:Ex d[ia] IC T4 Intelligent sensors: Ex ia ICT4 |
