*Anti-reflective coating to increase the module efficiency up to 2%
*Light transmittance improvement above 3%
*Self-cleaning function
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10years
-
Brand Name:
-
HengLong
-
Model Number:
-
HL-350W poly
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1950*992*40MM
-
Product name:
-
high power ja solar 350 w solar panel solar photovoltaic module
-
Application:
-
Solar Power System
-
Working Voltage:
-
38.1V
-
Working current:
-
9.19A
-
Short circuit current:
-
9.73A
-
Open-circuit voltage:
-
46.9V
-
Cell grade:
-
A
-
Cell efficiency:
-
18.06%
-
Net weight::
-
25KG
-
Package:
-
carton or pallet
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, N-TYPE, TOPCON, BIPV, Flexible
-
Panel Efficiency:
-
21%
-
Warranty:
-
10years
-
Brand Name:
-
HengLong
-
Model Number:
-
HL-350W poly
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1950*992*40MM
-
Product name:
-
high power ja solar 350 w solar panel solar photovoltaic module
-
Application:
-
Solar Power System
-
Working Voltage:
-
38.1V
-
Working current:
-
9.19A
-
Short circuit current:
-
9.73A
-
Open-circuit voltage:
-
46.9V
-
Cell grade:
-
A
-
Cell efficiency:
-
18.06%
-
Net weight::
-
25KG
-
Package:
-
carton or pallet
Product Description

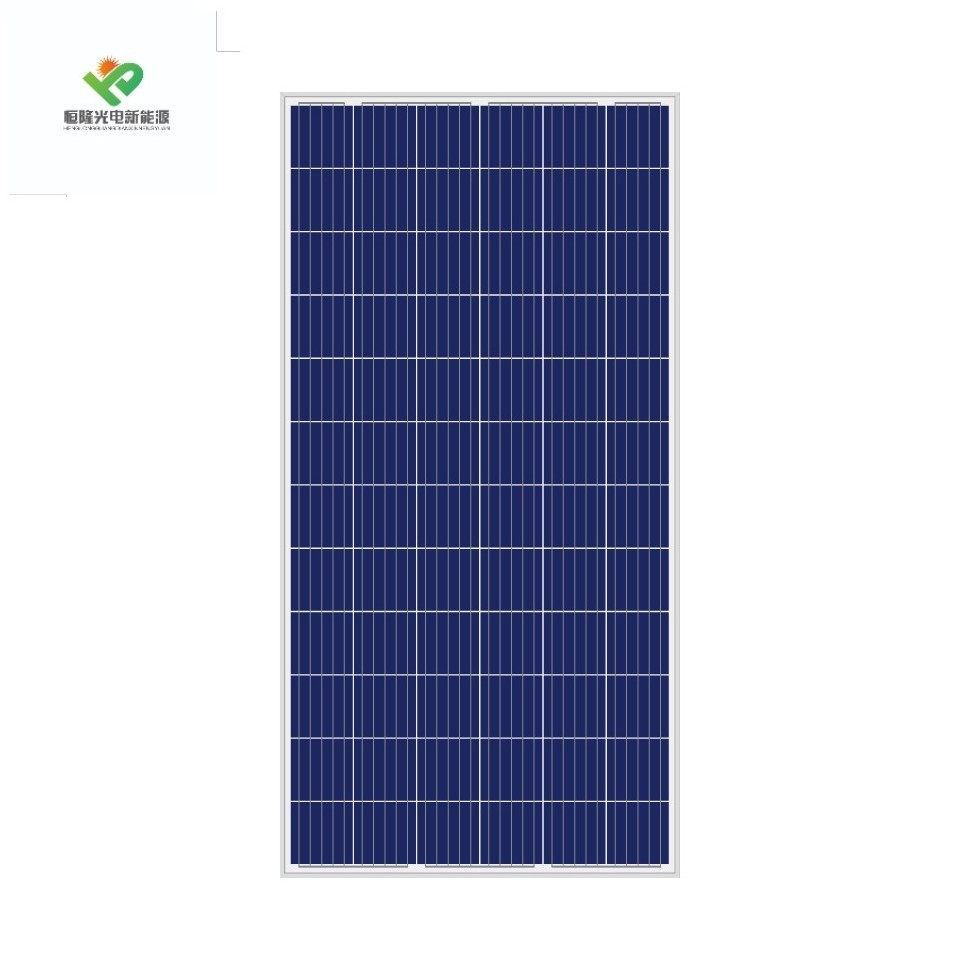

high power ja solar 350 w solar panel solar photovoltaic module for ground mounting
|
Model:
|
HL-Poly 350W
|
|
Size:
|
1950*992*40mm
|
|
Working Voltage(Vmp/V):
|
38.1V
|
|
Working current(Lsc/A):
|
9.19A
|
|
Open circuit voltage(Vmp/V):
|
46.9V
|
|
Short circuit current(Lsc/A):
|
9.73A
|
|
Cell number:
|
156pcs
|
|
Cell grade:
|
A
|
|
Cell efficiency:
|
18.06%
|
|
Net weight:
|
25Kg
|
|
Package:
|
carton or pallet
|
|
Max.System Voltage:
|
DC1000V(IEC)
|
|
Design Life:
|
25years
|
|
Warranty Life:
|
10years
|
TEMPERED GLASS
SOLAR CELL
*High power efficency
*Stable performance under weak light conditions
*PID free treatment upon request
EVA FILM
*Light transmittance more than 92%
*small trail prevention teratment
*UV resistance against against
BACK SHEET
*Low moisture permeability against snail trail defect
*Excellent electric insulation for high system voItage up to 1500V
*Outstanding weatherproof performance
ALUMINUM ALLOY FRAME
*Strong mechanical load resistance up to 5400pa
*Anodic oxidation layer resistant chemical corrosion
*Silver and black color optional
JUNCTION BOX
*Ip 67 protection grade
*High quality diodes for electric safety
*1500V system voltage available
