Quick Details
-
Model Number:
-
SL401-D24RE
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Gooxi SL401-D24RE Intel Purley Dual-Socket High-End Rack A Server
-
Dimensions:
-
798 x 433.4 x 176.5mm(D * W * H)
-
Weight:
-
65KG
-
Quality:
-
High-Quality
-
Service:
-
24-Hour Online
-
Form Factor:
-
4U Rack Server
-
Processor:
-
INTEL Xeon
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
Intel
-
Brand Name:
-
Gooxi
-
Model Number:
-
SL401-D24RE
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Gooxi SL401-D24RE Intel Purley Dual-Socket High-End Rack A Server
-
Dimensions:
-
798 x 433.4 x 176.5mm(D * W * H)
-
Weight:
-
65KG
-
Quality:
-
High-Quality
-
Service:
-
24-Hour Online
-
Form Factor:
-
4U Rack Server
-
Processor:
-
INTEL Xeon
-
Warranty:
-
3 Years
Products Description

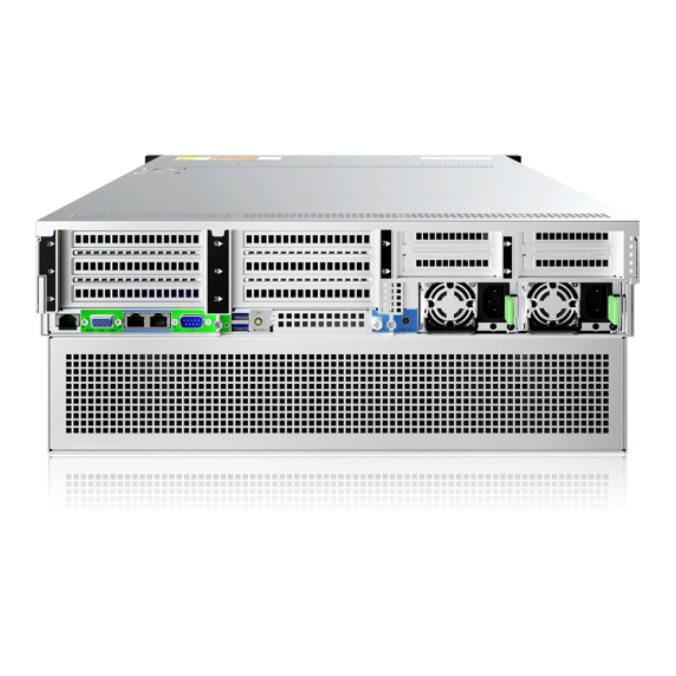

SL401-D24RE Massive Storage Rack Server
Support 1/2 Intel Xeon Scalable Processor / Support 24 DDR4 2933MHz memory / Support 24 hot-swap SAS/SATA(HDD/SSD);
This manual is writing for the Purley dual-socket rack server. It mainly introduces thetechnicalcharacteristics, system architecture, installation method and basic operation of this product. ThePurleydual-socket server is divided into 1U4 bay, 1U10 bay, 2U8 bay, 2U12 bay, 2U25 bay, 4U24 bay, 4U36bayvarious models, the product has the features of low energy consumption, flexible expansion, highreliability, easy management, easy deployment and so on. This manual is intended for reference and research by professional systemintegrators andpersonalcomputer technicians, and this product should
only be installed and maintained byexperiencedtechnicians.
only be installed and maintained byexperiencedtechnicians.
Specification
|
System Model
|
SL401-D24RE
|
|
Processor
|
Supports 1/2 1st - and 2nd-generation Intel Xeon ® scalable series processors
|
|
Chipset
|
Intel ®C621 series server dedicated chipset
|
|
Memory
|
24* DDR4 memory slots for 2400 MHZ, 2666 MHZ, and 2933MHz DDR4 memory
|
|
Storage Controlle
|
Internal: PCH supports RAID 0\1\10&5
|
|
|
External HBA (non-RAID) : 12 Gbps SAS HBA
|
|
Storage
|
Front: 24* 3.5/2.5 "SAS/SATA hot-swap disks
|
|
|
Rear: Optional four 3.5" SAS/SATA disks or four 2.5 "SAS/SATA/U.2 disks
|
|
|
Internal storage: Two NVMe PCIe 3.0 x4 M.2 ports, two SATA 7PIN slots (supporting SATA DOM), and three MiniSAS HD ports
|
|
Network
|
2pcs 1GbE (RJ45) onboard
|
|
I/O Ports
|
Front: 2* USB3.0
|
|
|
Rear: one VGA, two USB3.0, one management network port, two RJ45 network ports
|
|
|
OCP slot: one OCP 3.0 (PCIe x 8)
|
|
PCIe Expansion
|
Riser1：3* full-height PCIe 3.0 x8 or 1*full-height PCIe 3.0 x16、1*full-height PCIe 3.0 x8
|
|
|
Riser2：3*full-height PCIe 3.0 x8 or 1*full-height PCIe 3.0 x16、1*full-height PCIe 3.0 x8
|
|
|
Riser3：1*half-height PCIe 3.0 x8、1*half-height PCIe 3.0 x8(in x16 Slot) or 1*half-height PCIe 3.0 x16
|
|
|
Riser4：1*half-height PCIe 3.0 x8、1*half-height PCIe 3.0 x8(in x16 Slot) or 1*half-height PCIe 3.0 x16
|
|
|
OCP：1*OCP 3.0(PCIe 3.0 x8)
|
|
Power Supply
|
Supports 550W, 800W, 1300W, 1600W, 2000W, and 2200W redundant power supplies
|
|
Fan
|
8* 8038 N+1 Redundant hot-swap fans
|
|
Management
|
Onboard iBMC management module supports management features such as IPMI, SOL, KVM Over IP, and virtual media
|
|
Security
|
TPM/TCM (optional) Chassis open intrusion detection Locked upper cover of chassis
|
|
Operating System
|
Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
|
|
Server Size
|
798 x 433.4 x 176.5mm(D * W * H)
|
|
Working Temperature
|
Operating temperature: 5ºC - 35ºC (indoor)
Storage temperature: -40ºC - 70ºC
|
