Quick Details
-
Output Speed:
-
based on ratio
-
Warranty:
-
1 year, 1 Year
-
Weight (KG):
-
4.5 KG
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
3F FAMED
-
Color:
-
Silver blue or gold blue
-
Certification:
-
CE
-
Packing:
-
wooden or carton
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
12-3200Nm
-
Input Speed:
-
1700-7500Nm
-
Output Speed:
-
based on ratio
-
Warranty:
-
1 year, 1 Year
-
Weight (KG):
-
4.5 KG
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
3F FAMED
-
Color:
-
Silver blue or gold blue
-
Certification:
-
CE
-
Packing:
-
wooden or carton

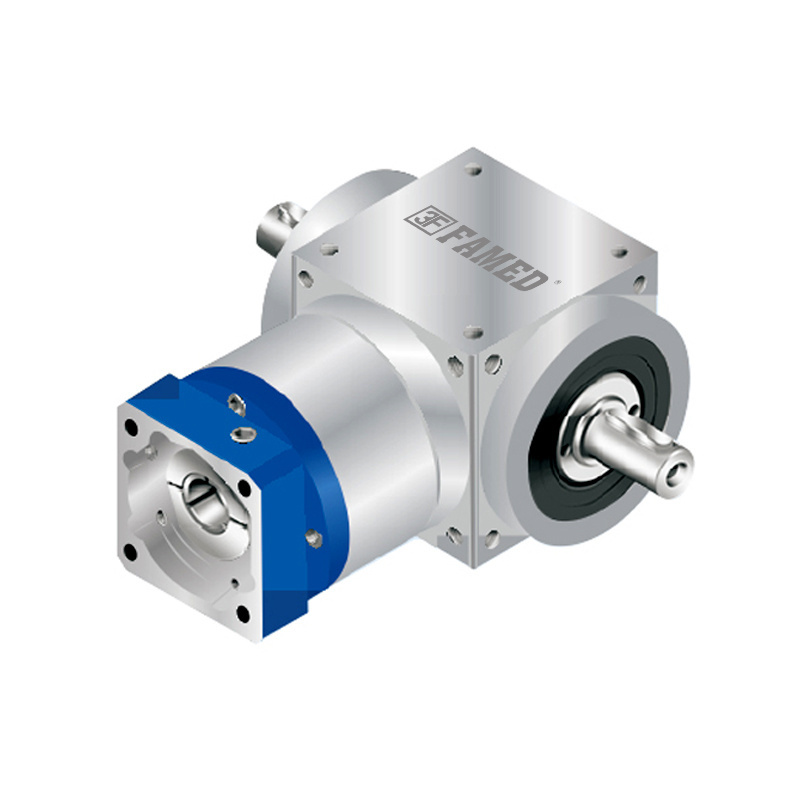

3F AT-FL series planetary gearbox is a kind of right angle gearbox specially for servo applications. AT-FL series planetary right angle speed reducer features of high strength and high quality due to the internal components are heat-treated with alloy steel, which is enough for the severe and harsh working conditions. It adopts worm bevel gears to realize the high load and high torque output.
FEATURES OF AT-FL DOUBLE OUTPUT SHAFT SERVO GEARBOX
High torque and low backlash:itis suitable for the application of precision servo with a compact structure.
High rigidity: the integrated stainless steel body ensures maximum rigidity and corrosion resistance.
Wide application: itcan be applied to various of industrial applications needsthanks to multiple stainless
steel output and input shaft design.
High precision: due to the combination of high-precision grinded worm bevel gear set and the optimized
the design of planetary gear set, the ratio can reach to 500:1.
Maintenance free: patented oil seal design, maintenance-free without replacing the lubrication oil.
High torque output: the adoption of the top spiral worm gear design software and the optimized design
of contact tooth surface enables high load and high torque output.
High strength: Gears are made of high strength carburizing alloy steel and the grinding precision is up to
the standard of DIN 5 level .
APPLICATION OF AT-FL SERIES SPEED REDUCER
The 3F AT-FL right angle speed reducer is widely used in semiconductor liquid crystal manufacturing equipment, robots, machine tools, and other frontiers that require precision motion control.
|
Backlash
|
Standard precision：≤6 arcmin
|
|
Size
|
AT065-FL;AT075-FL;AT090-FL;
AT110-FL;AT140-FL;AT170-FL;
AT210-FL;AT240-FL;AT280-FL;
|
|
Ratio
|
1:3/1:4/1:5/...1:10
|
|
Match motor
|
servo motor, stepper motor
|
|
Lead time
|
Standard size for 15-20 days
|
|
Warranty
|
12 months
|
Q: Are you manufacturer or trader?
A:We are manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
Q: What're your main products?
A: We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling,etc. E-catalog is ready for you if you are interested.
Q: How to select a suitable gearbox?
A: Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Q: Can I get the 3D and 2D drawings?
A: Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Q: Do you have an individual design service ?
A: Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A:Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
