1. Wide material adaptability:
It is used for screening of various materials. No matter it is inferior coal, slime, soot or other materials, it can be screened smoothly.
2. High screening efficiency:
The equipment can be equipped with comb cleaning mechanism. In the screening process, the materials entering the screening cylinder can be screened according to impurities and dirt to improve the screening efficiency of the equipment.
3. The screening composition is large and easy to enlarge:
In the same size, the circular area is larger than other shapes, so the effective screening area is large, so that the material can fully contact the screening, so that the screening component per unit time is large.
4. Good working environment:
The whole screening cylinder can be sealed with a sealed isolation cover to completely eliminate dust and block splashing during screening and avoid pollution to the working environment.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
as per order
-
Dimension(L*W*H):
-
variable
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screen mesh:
-
3-10mm
-
Noise:
-
below 75db
-
capacity:
-
700-1500kg/hr
-
material:
-
SUS304 or Q235A
-
Screening efficiency:
-
over 95% .
-
customized design:
-
available
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CW
-
Voltage:
-
as per order
-
Dimension(L*W*H):
-
variable
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screen mesh:
-
3-10mm
-
Noise:
-
below 75db
-
capacity:
-
700-1500kg/hr
-
material:
-
SUS304 or Q235A
-
Screening efficiency:
-
over 95% .
-
customized design:
-
available

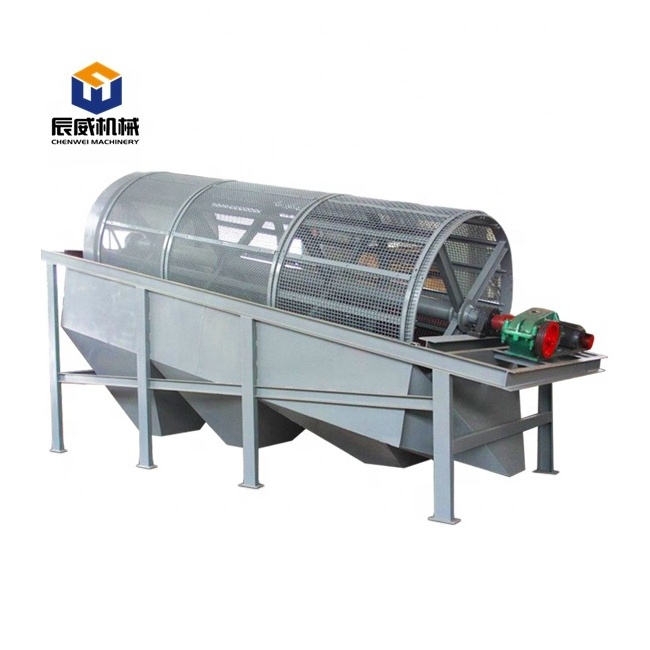

Trommel screen consists of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Characteristic of trommel screen
Technical Parameters
|
Model
|
Power(kw)
|
Drum Diameter(mm)
|
Drum length(mm)
|
Screen size(mm)
|
Dimension(mm)
|
|
CWGT1015
|
3
|
1000
|
1500
|
<3-10
|
3000*1400*2145
|
|
CWGT1020
|
3
|
1000
|
2000
|
|
3460*1400*2145
|
|
CWGT1225
|
4
|
1200
|
1500
|
|
4146*1600*2680
|
|
CWGT1530
|
5.5
|
1500
|
3000
|
|
4460*1900*2820
|
|
CWGT1545
|
7
|
1500
|
4500
|
|
5960*1900*3080
|
|
CWGT1848
|
11
|
1800
|
4800
|
|
6500*2300*4000
|
|
CWGT2055
|
15
|
2000
|
5500
|
|
7500*2500*4000
|
Application of trommel screen
Abrasive material and ceramic industry
: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
Metallurgy and mining industry
: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry
: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
1.Free maintenance.
We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
2.Free period follow-up.
We can offer free online service for 24 hours. If you have any questions, we can help you solve the problem. We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
3. Free installation video.
We are a professional manufacturer and have the ability to provide clients with overall installation by video. We can provide the clients User manual and Printed copy.
Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products.
We have 10 years of overseas after-sales experience, provide 24-hour online service, 365-day machine warranty, and have more than 50 patented technologies.
Q: What information do we need to help you choose a perfect machine?
1.Name and feature of the raw material
2.Aim of using: get rid of impurity, filtration, grading
3.granularity distribution
4.Handling capacity: kg /h, L/h
5.The raw material size: (mesh or mm)
6.The moisture of the material
7.The material of construction (stainless steel SUS 304 or 316, carbon steel Q 235 A)
8.How many layers you need?
9.The voltage , frequency, phase (single or three)
Note: You'd better send us the relevant pictures or some materials you want to sift , it can assure us to recommend the suitable machine for you.
Q:Can I ask some special and customize design?
A: Yes, we can make a suitable machine for you according to your request.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
