Quick Details
-
Max. Spindle Speed (r.p.m):
-
600 r.p.m
-
Max. Weight of Workpiece(kg):
-
2000
-
Width of bed (mm):
-
100 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
800
-
Travel (X Axis)(mm):
-
460 mm
-
Travel (Z Axis)(mm):
-
800 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.006
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sharp China
-
Model Number:
-
CKI-800B
-
Voltage:
-
380
-
Weight (KG):
-
7000
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Name:
-
Vertical CNC lathe
-
Product type:
-
Economical CNC Lathe
-
type:
-
heavy-duty
-
Rest amount:
-
six-station
-
Machine weight:
-
7T
-
Hydraulic station:
-
60L
-
The motor:
-
Servo motor
-
Max. Swing Diameter (mm):
-
1000 mm
Quick Details
-
Type:
-
TURNING CENTER
-
Max. Length of Workpiece (mm):
-
800
-
Year:
-
The latest
-
Max. Spindle Speed (r.p.m):
-
600 r.p.m
-
Max. Weight of Workpiece(kg):
-
2000
-
Width of bed (mm):
-
100 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
800
-
Travel (X Axis)(mm):
-
460 mm
-
Travel (Z Axis)(mm):
-
800 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.006
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sharp China
-
Model Number:
-
CKI-800B
-
Voltage:
-
380
-
Weight (KG):
-
7000
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Name:
-
Vertical CNC lathe
-
Product type:
-
Economical CNC Lathe
-
type:
-
heavy-duty
-
Rest amount:
-
six-station
-
Machine weight:
-
7T
-
Hydraulic station:
-
60L
-
The motor:
-
Servo motor
-
Max. Swing Diameter (mm):
-
1000 mm

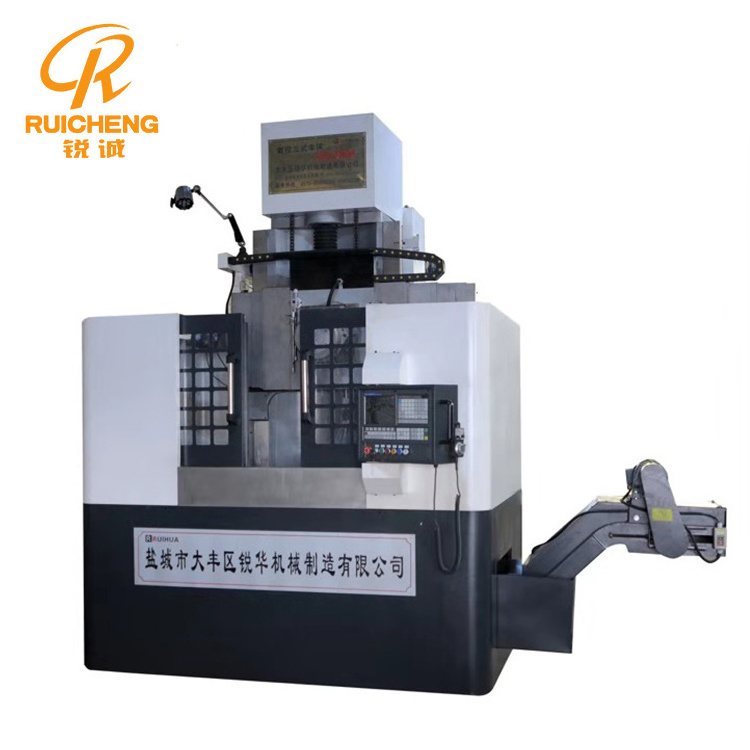

The Vertical CNC Lathe
This machine is a
vertical CNC lathe
controlled by two coordinate (
vertical Z horizontal X
).
This machine tool has the functions of automatic tip arc radius compensation, constant linear speed cutting, chamfer, fixed cycle,thread cutting, graphic display and other CNC machine tools.Can turn processing end face, drilling, turning outside diameter,boring, cone face, arc face, thread, end face thread, etc.
Conventional with
six stations electric tool rest
.Realize automatic cycle of process.One clamping can realize all or most
processes of complex parts.(it can also be equipped with four-station mechanical tool rest and special tool rest)
Configure wide 980TDb system.Can meet the requirements of CNC lathe.CNC vertical lathe has universality and versatility.Suitable for
machinery manufacturing machinery processing.
The machine tool can form the production line according to the user's demand and realize the automatic control.
Especially suitable for processing motor end cover, electric housing, wheel hub, brake hub and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
|
The name says
|
unit
|
And the number
|
|
|
Table diameter
|
mm
|
800
|
|
|
Spindle servo motor
|
kw
|
Broad servo motor zjy-15kw
|
|
|
Maximum spindle speed
|
r/min
|
50-600
|
|
|
The X axis stroke
|
mm
|
460
|
|
|
XX axis fast moving speed (factory set value)
|
mm/min
|
1800
|
|
|
The Z axis stroke
|
mm
|
800
|
|
|
Rapid movement speed of z-axis (factory set value)
|
mm/min
|
1800
|
|
|
Spindle end connection
|
A1 type 11
|
|
|
|
Main shaft hole end connection
|
Metric 100
|
|
|
|
Numerical control system
|
Wide number GSK980TDC
|
|
|
|
The tool rest adopts yantai universal tool rest
|
Six-station AK2730X6 - QY1
|
|
|
|
Chip removal device
|
CYPG300A
|
|
|
|
Machine weight
|
7T
|
|
|
|
Medium solid rotary cylinder
|
P22200(Hohhot public ring)
|
|
|
|
Medium hydraulic chuck
|
Diameter: 500mm (Hohhot ring)
|
|
|
|
Hydraulic station
|
60l (single set valve)
|
|
|
