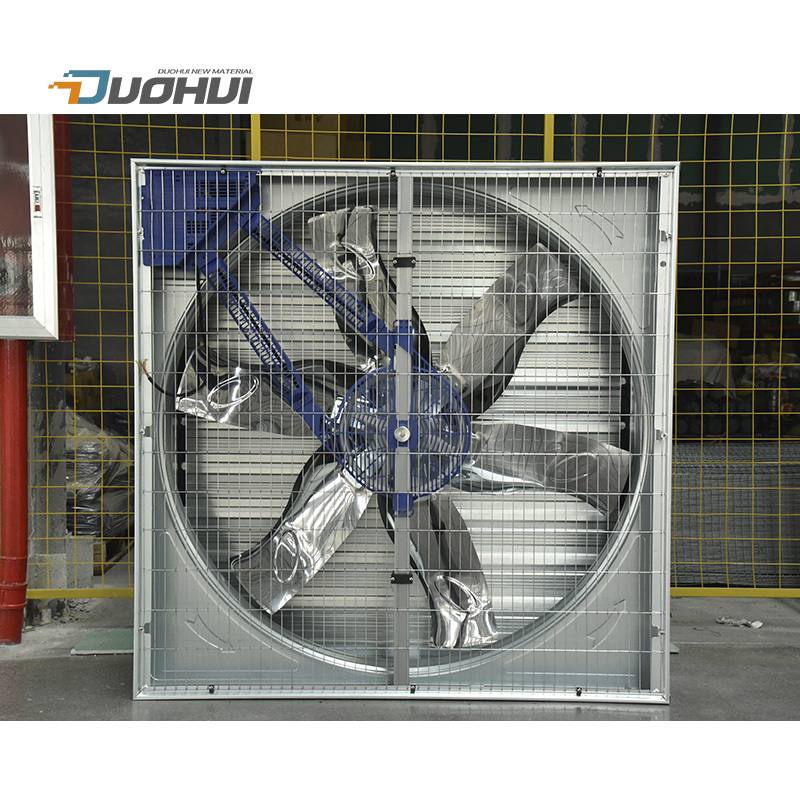

Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
duohui
-
Voltage:
-
380v
-
Certification:
-
CCC, ce, UL
-
Diameter Blades:
-
1100mm
-
Blades rotational speed:
-
439rpm
-
Motor rotational speed:
-
1400rpm
-
Total pressure:
-
56Pa
-
Noise:
-
≤70
-
usage:
-
Ventilation and cooling
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Farms, Restaurant, poultry farm, greenhouse, industrial, workshop
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
duohui
-
Voltage:
-
380v
-
Certification:
-
CCC, ce, UL
-
Diameter Blades:
-
1100mm
-
Blades rotational speed:
-
439rpm
-
Motor rotational speed:
-
1400rpm
-
Total pressure:
-
56Pa
-
Noise:
-
≤70
-
usage:
-
Ventilation and cooling
Material of components:
1, Frame : frames are made of hot dip galvanized sheet , frame thickness 1.0mm,. Galvanizing layer 180g/square meter s .
2, Blade : 6 pieces, material 430/ 304 stainless steel.
3, Impeller : casting aluminum alloy impeller.
4, bearing of impeller : permanently sealed bearing, size 633313.
5, Collector : galvanized sheet , thickness 1.0mm.
6, Blade tip clearance : 25mm, m irror face.
7, Inlet wind protecting net : plastic spray ed steel wire, thickness 2.8mm.
8, Electrical motor : aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,
9, Motor bearing : cast iron .
10, Belt : B -belt and A-belt (Made-in-China and Japan brand Mitsuboshi).
11, Shutters : galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer, 120g/square meter.
12, Opening system : centrifugal push-push open device .
13, Rivets : aluminum alloy and stainless steel rivets.
