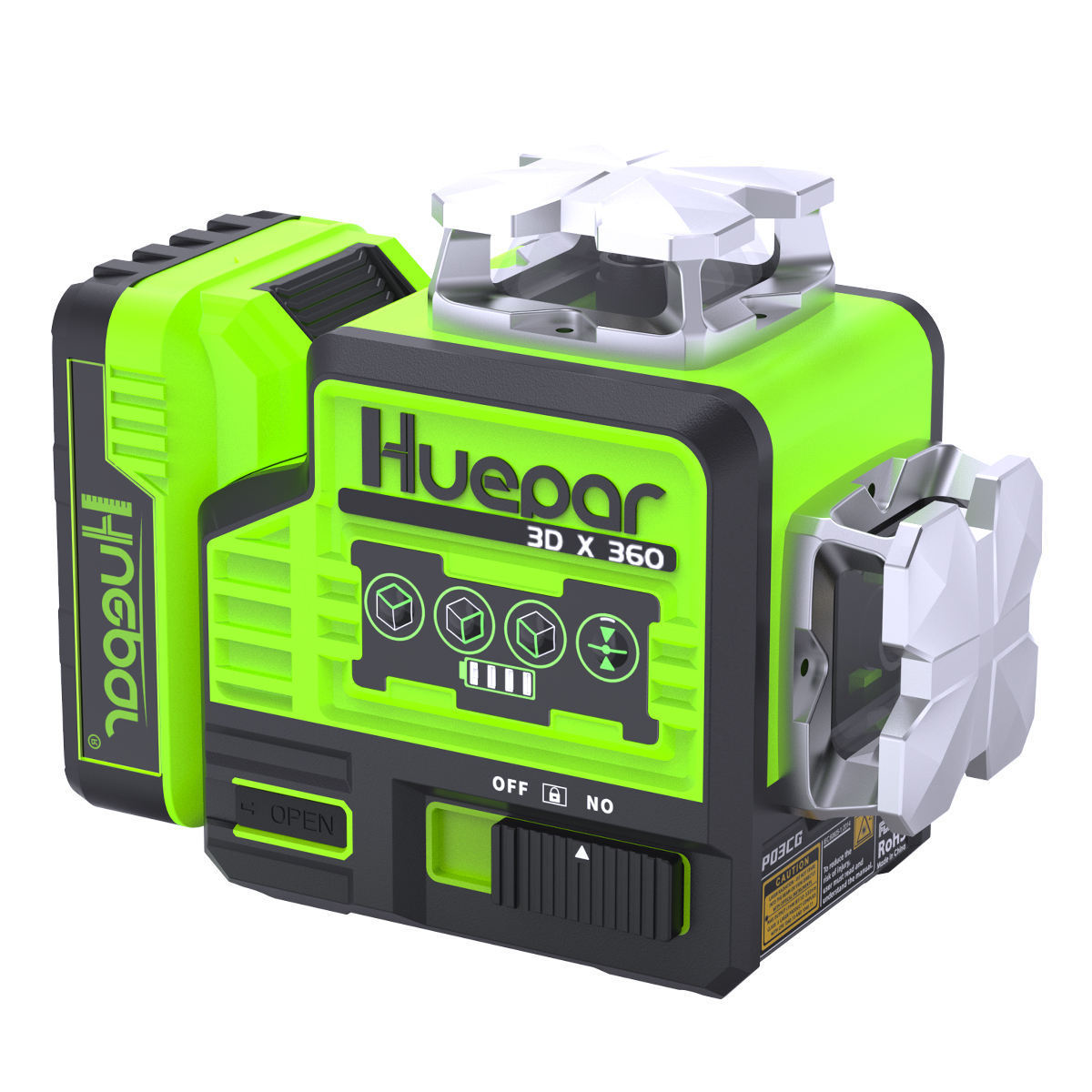

Huepar P03CG Rotating Laser Level Equipment 3x360 12 Light Cross Line Self Leveling Green Strong Verde

Huepar P03CG Rotating Laser Level Equipment 3x360 12 Light Cross Line Self Leveling Green Strong Verde

FOB Reference Price: Get Latest Price

≥10 Pieces

US $121.3

≥200 Pieces

US $96.23

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Wavelength:: 510-530nm

Place of Origin:: China

Brand Name:: Huepar

Model Number:: P03CG

Product Name:: 3D Laser Level

Charging time:: 3.5 hours

Leveling time:: 3 seconds

Working distance:: 60 meter

Laser Color:: Green

Laser beam:: 12 Green Beams

Type:: 360 Green Beam

Color:: Green +Black

Keyword:: 12 Lines Green Laser Line Level

Power supply:: Li-Ion battery,USB Charging

Quick Details

Warranty:: 2 years

Size:: 36.8*13.7*29.3cm

Precision:: ±3mm/10m

Wavelength:: 510-530nm

Place of Origin:: China

Brand Name:: Huepar

Model Number:: P03CG

Product Name:: 3D Laser Level

Charging time:: 3.5 hours

Leveling time:: 3 seconds

Working distance:: 60 meter

Laser Color:: Green

Laser beam:: 12 Green Beams

Type:: 360 Green Beam

Color:: Green +Black

Keyword:: 12 Lines Green Laser Line Level

Power supply:: Li-Ion battery,USB Charging

Product Description

Huepar P03CG 12 Lines 3D Green Laser Level Specifications:

● Laser Beam: Green Beam

● Projection: 12 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 510nm-530nm
● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/9 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: 20m, ≥40m with detector
●Working Time: About 9 hours with li-ion battery,
● Power Source: Li-Ion battery、USB Charging
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃

Customer Praise

Product Features

Line Switching:

Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
The laser lines can be selected separately according to job requirements.

Pulse Mode:

Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

360° Strong Magnetic Pivoting Bracket

Allows for attachment to metal surfaces and enables to turn the laser level around at 360 degree.

The bracket offers ability to mount to any object up to 0.47" thick. * The fine-tuning knob with lock on the bracket help adjust and lock the height within 3.74". * 1/4"-20 and 5/8"-11 female thread on the laser tool as well as the 5/8"-11 mounting thread on the bracket to suit for standard tripod or laser mounting pole.

Self-leveling mode:

Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Quick Release Battery Button

2600mAh Li-ion battery quick release battery button,b attery power display

DUAL POWER METHODS:

This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery. + An extra battery is included in the package for backup.

The level tool can be used at job site by plugged in directly when take out the battery.
Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter. + With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
