Quick Details
-
Brand Name:
-
BINGO
-
Model Number:
-
LS-HS02
-
Item:
-
Stainless steel float switch
-
Working Pressure:
-
≤1.5MPa
-
Float Gravity:
-
0.7
-
Output Signal:
-
SPST NO/NC
-
Working Temperature:
-
-20~160℃
-
Protection Grade:
-
IP68
-
Float Material:
-
SUS304 / SUS316L
-
Housing Material:
-
SUS304 / SUS316L
-
Wire Length:
-
500±10mm
-
Installation Method:
-
Horizontal installation
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BINGO
-
Model Number:
-
LS-HS02
-
Item:
-
Stainless steel float switch
-
Working Pressure:
-
≤1.5MPa
-
Float Gravity:
-
0.7
-
Output Signal:
-
SPST NO/NC
-
Working Temperature:
-
-20~160℃
-
Protection Grade:
-
IP68
-
Float Material:
-
SUS304 / SUS316L
-
Housing Material:
-
SUS304 / SUS316L
-
Wire Length:
-
500±10mm
-
Installation Method:
-
Horizontal installation

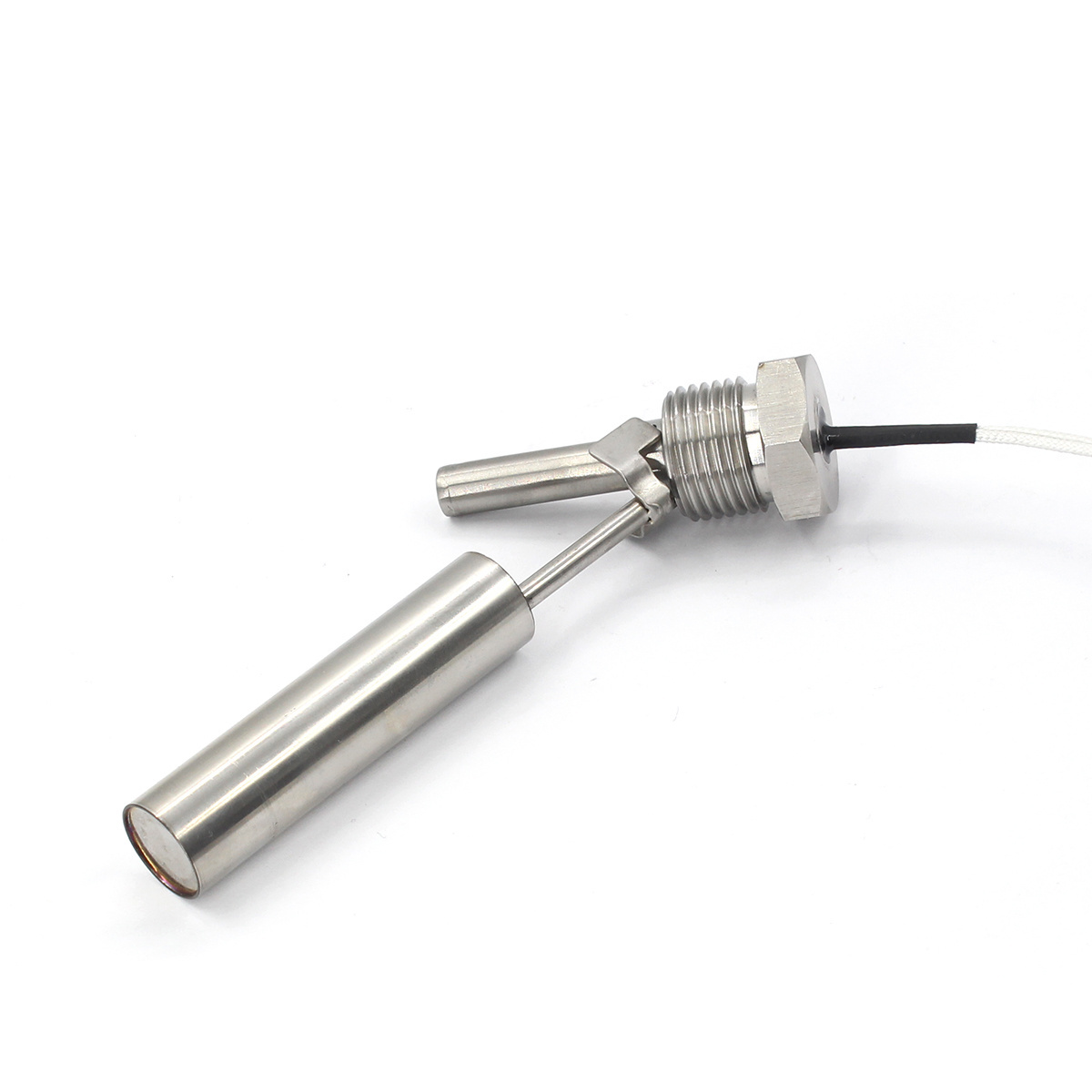

G1/2" Stainless Steel Tank Pool Liquid Water Level Sensor Horizontal Float Switch
1.Introduction:
The working principle of G1/2" Stainless Steel Tank Pool Liquid Water Level Sensor Horizontal Float Switch is direct and simple. Set one point or multipoint of magnetic switch in sealed unmagnetic metal or industrial plastic tube. Fix the float with inner magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and down; utilize the inner magnetic system in the float to trigger the open and close of magnetic switch to operate and control the liquid level. Normal open and normal close is the state with inserting liquid. Mini float level switch is custommade product and the switch state can shift in normal condition. Mini float level switch is widely used in level control and alarm of all kinds of industry such as electronic, electric power, chemical, watertreatment, water supply and drainage due to its low price, reliable performance and flexible installation method.
