- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan
-
Brand Name:
-
ChengHui
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4200*1500*1800mm, 4200*1500*1800mm
-
Marketing Type:
-
New
-
Weight (KG):
-
1800 kg
-
Raw Material:
-
Steel Slag/Cemant
-
Block Type:
-
Concrete Cemant Paving Bricks
-
Color:
-
Customized
-
Model:
-
Brick Making Machine
-
Brick type:
-
Various Brick Types
-
Machine Type:
-
Fully Automatic
-
Molding Cycle:
-
28(s)
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Steel Slag
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan
-
Brand Name:
-
ChengHui
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4200*1500*1800mm, 4200*1500*1800mm
-
Marketing Type:
-
New
-
Weight (KG):
-
1800 kg
-
Raw Material:
-
Steel Slag/Cemant
-
Block Type:
-
Concrete Cemant Paving Bricks
-
Color:
-
Customized
-
Model:
-
Brick Making Machine
-
Brick type:
-
Various Brick Types
-
Machine Type:
-
Fully Automatic
-
Molding Cycle:
-
28(s)
Product Overview

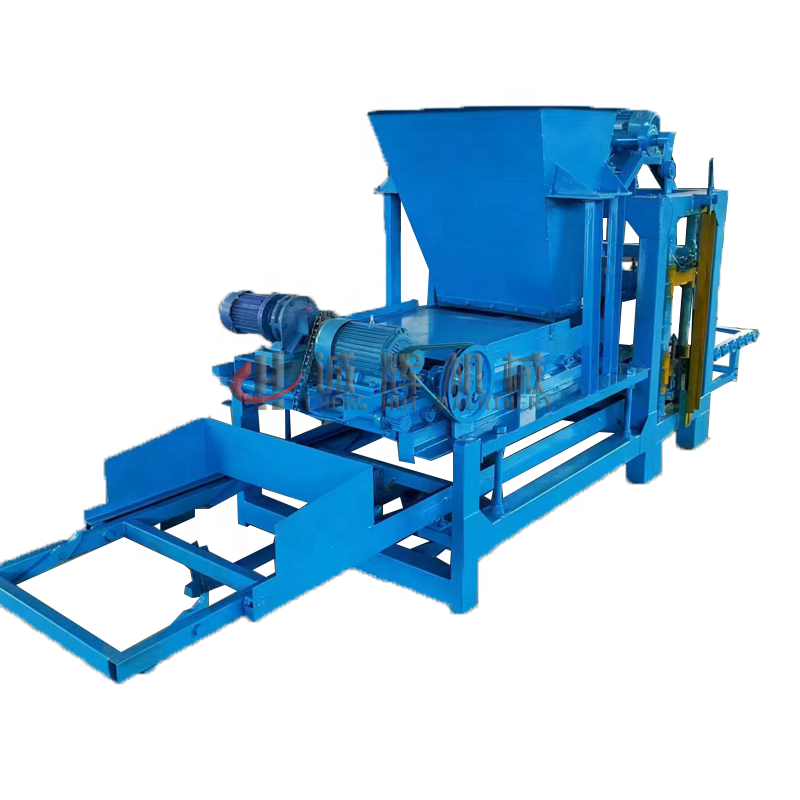

4-28 Fully Automatic Hydraulic Block Making Machine
4-28 is a fully automatic hydraulic block making machine.
with many advantages
like High output, saving manpower,easy in operating,and durable in use.
This fully automatic brick production line is small in size, covers a small area, and saves manpower, so the investment is small and the return is quick.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
||
|
1
|
Model
|
4-28
|
||
|
2
|
Power
|
12KW
|
||
|
3
|
Type
|
Automatic
|
||
|
4
|
Machine Dimension
|
3200*2100*2350mm
|
||
|
5
|
Molding Cycle
|
28s
|
||
|
6
|
Weight
|
1.8t
|
||
|
4-28 is a automatic hydraulic brick making machinery which is specialized in construction building block such as hollow block , solid block, paver block , porous brick , road kerb , grassing brick , ring tree brick and other concrete products .The material can be fly ash , cinder , coal gabgue and other industrial residue . Add the color material feeding machine (color system ) can produce colored products .
|
|
|
||
Advantage
1. Save manpower and material resources, improve production efficiency, environmental protection and energy saving.
2. The bricks produced have high strength and good density, and can be stacked and dried at any time.
3. The mold can be replaced at will, truly realizing one machine with multiple uses.
4. Consumable parts are not only convenient for maintenance, but also users can save mold costs.
National Standard Steel Q235B
Hardness and wear-resistant ability is 1.3 times better than common steel and carbon dioxide gas protection welding.
High Quality Motor
Famous brand quality, ensure the machine to run steadily and safely, long service life.
High Quality Block Molds
The mould are all treated by High temperature carburizing.The service life are 3 times longer than normal one.
Control Cabinet
The control cabinet monitors, protects and controls the electrical system to ensure the normal operation of the electrical system.
Application field
Various
raw materials
applicable: Fly ash, Steel slag, river sand, stone powder, slag, Coal Gangue, constructioin waste, stone etc.
Concrete cement bricks can produce different types of bricks.
It can also be
customized
according to demand.
Free
giving a conventional brick mold, and brick molds can also be customized according to demand.
Free
drawings are provided to customers who need customized brick types.
Successful Project
Project in Anhui, China
Project in Shanxi, China
Project in
Zimbabwe
Project in
Ghana
Project in
Jamaica
Project in Hebei, China
Chenghui Machinery providing users in 68 countries and regions with efficient and intelligent block machine equipment and services, Such as Malaysia, Maldives, Bangladesh, Sri Lanka, Ghana, South Africa, Kenya, Nigeria, Zambia, Tanzania, Jamaica, the United States, the United Kingdom, etc. New and old customers are welcome to visit, provide guidance and negotiate business.
Why Choose Us
Certain Suppliers
Reason 1: Mold Manufacturing Process
The mold of the brick making machine is not precise enough, which affects the brick forming effect, resulting in the collapse of the shaped bricks.
Reason 2: Vibration Intensity
Inferior vibration motors cannot reach the calibrated power, and insufficient vibration intensity will cause the raw materials to be unable to be fully compacted and the interior of the bricks to be loose.
ChengHui Machinery
ChengHui Machinery’s mold plates use laser cutting technology with an error as low as 1 mm.
ChengHui Machinery uses high-quality motors to ensure that the vibration intensity reaches the standard.
Other Reasons:
Too much or too little moisture in the raw materials, uneven particle size of the raw materials or excessive impurities, improper raw material ratio, insufficient molding cycle time, etc. will all affect the brick molding effect.
Different solutions can be adopted for different problems, such as adjusting the moisture content of raw materials, increasing vibration intensity, repairing molds, optimizing the raw material ratio, etc. By analyzing and optimizing these problems, the production efficiency, brick quality and service life of the brick machine can be improved. Contact us to get more details.
CHENGHUI MACHINERY EQUIPMENT CO., LTD.
Chenghui Machinery Equipment Co., Ltd. is located in Gongyi City, Henan Province. It is an enterprise integrating R&D, production and sales, mainly focusing on brick machine equipment. The equipment we produce sells well both at home and abroad. Chenghui Machinery has a complete service system and has created an experienced service team to plan sites, design installation basic drawings and flow charts for customers free of charge, and provide professional technical training.
EXCELLENT SERVICE
24 hours online service, free customized machine, free design factory drawing, engineer installation, test training, provide integrated block making solutions.
Similar Products
FAQ
Q1：
What is the warranty for this machine?
A1：
3 years excluding the easy wear parts.Spare parts is recommended to keep at least one year in case of emergency
Q2: What kind of material is this machine made of ?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours. If urgent, please directly call us.
Q4: Can the price be much lower?
A4: Our MOQ is the very reasonable price for 1 set, but with big order, we can apply to our Manager to provide a proper discount.
Q5: Do you offer oversea installation?
A5: We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.
