Quick Details
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Spindle Bore(mm):
-
38 mm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
0
-
Travel (X Axis)(mm):
-
185 mm
-
Travel (Z Axis)(mm):
-
350 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2090*1320*1760 mm
-
Brand Name:
-
kasen
-
Model Number:
-
TCK36A
-
Voltage:
-
220V/380V50HZ
-
Weight (KG):
-
2800
-
Applicable Industries:
-
enquiry us
-
Marketing Type:
-
New Product 2024
-
Product Name:
-

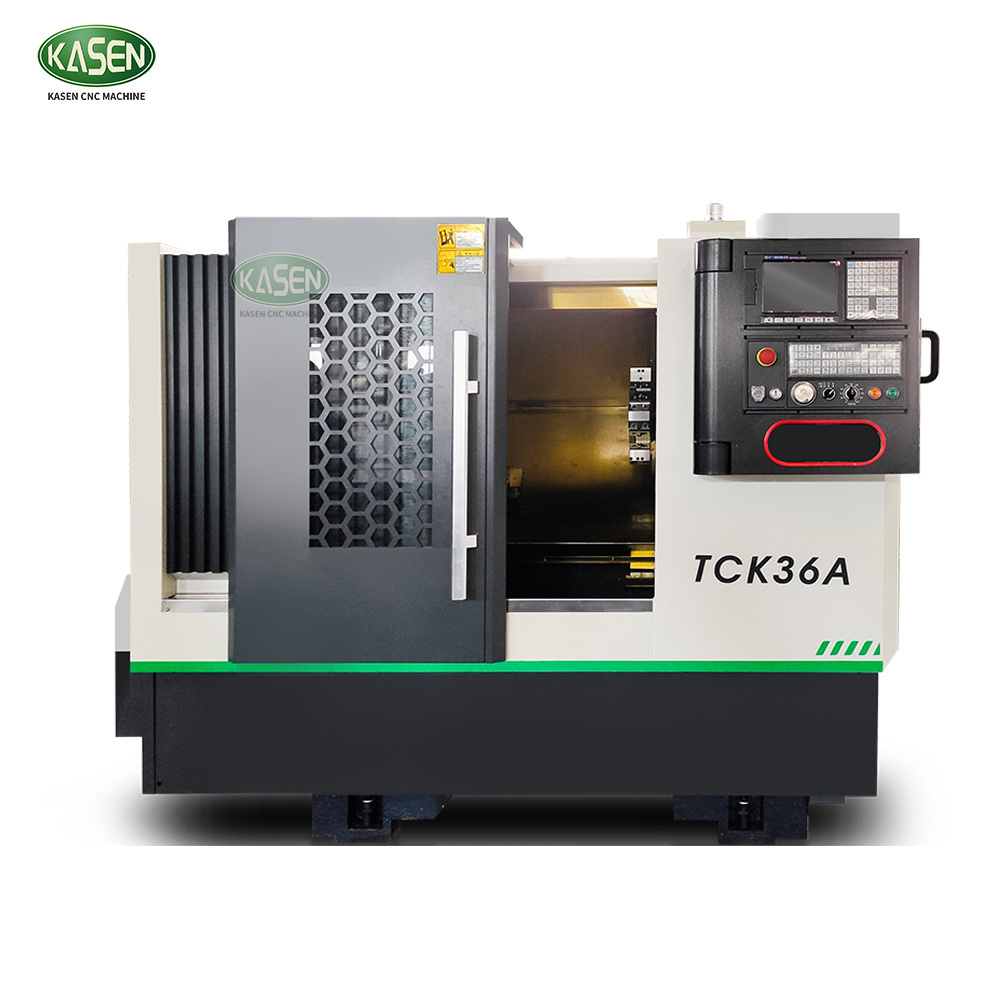

Slant Bed Cnc Lathe tck36
-
Machine Type:
-
Horizontal Desktop Lathe Cnc
-
Keyword:
-
Cnc Turning Lathe
-
Function:
-
Machining Metal
-
Max. Swing over bed:
-
360mm
-
Width of bed:
-
400mm
-
Chuck:
-
3-jaw Chuck
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Main motor:
-
5.5KW
-
CNC or Not:
-
CNC
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
300
-
Year:
-
2024
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Spindle Bore(mm):
-
38 mm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
0
-
Travel (X Axis)(mm):
-
185 mm
-
Travel (Z Axis)(mm):
-
350 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2090*1320*1760 mm
-
Brand Name:
-
kasen
-
Model Number:
-
TCK36A
-
Voltage:
-
220V/380V50HZ
-
Weight (KG):
-
2800
-
Applicable Industries:
-
enquiry us
-
Marketing Type:
-
New Product 2024
-
Product Name:
-
Slant Bed Cnc Lathe tck36
-
Machine Type:
-
Horizontal Desktop Lathe Cnc
-
Keyword:
-
Cnc Turning Lathe
-
Function:
-
Machining Metal
-
Max. Swing over bed:
-
360mm
-
Width of bed:
-
400mm
-
Chuck:
-
3-jaw Chuck
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Main motor:
-
5.5KW
-
CNC or Not:
-
CNC
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Specification
|
Specification
|
Unit
|
TCK36A
|
|
Max.swing over bed
|
mm
|
360
|
|
Max.swing over cross slide
|
mm
|
140
|
|
Max. Processing length
|
mm
|
300
|
|
Max. Bar capacity
|
mm
|
41
|
|
Max.processing diameter of plate type of workpiece
|
mm
|
360
|
|
Spindle nose type
|
|
A2-5
|
|
Spindle bore
|
mm
|
48
|
|
Spindle speed range
|
r/min
|
50-4000
|
|
Main motor power
|
kw
|
5.5
|
|
Chuck form
|
|
Hydraulic chuck
|
|
Chuck size
|
inch
|
6
|
|
X axis rapid traverse
|
M/min
|
24
|
|
Z axis rapid traverse
|
M/min
|
24
|
|
X axis servo motor torque
|
N.m
|
6
|
|
Z axis servo motor torque
|
N.m
|
6
|
|
X axis travel
|
mm
|
170
|
|
Z axis travel
|
mm
|
350
|
|
Guide rail type
|
|
linear rail
|
|
Tool post type
|
|
Horizontal 8 station
|
|
Tool shank size
|
mm
|
20x20/dia.25
|
|
Tailstock type
|
|
hydraulic
|
|
Tailstock quill dia.
|
mm
|
65
|
|
Tailstock quill travel
|
mm
|
870
|
|
Tailstock quill taper
|
|
MT4
|
|
Total rated power
|
kw
|
9
|
|
Total rated current
|
A
|
19
|
|
Machine weight
|
kg
|
2400
|
|
Machine dimension
|
mm
|
2200x1600x1850
|
