Quick Details
-
Power:
-
22
-
Dimension(L*W*H):
-
1000*950*1000
-
Weight (KG):
-
100
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GOLMYT
-
Voltage:
-
380
-
Power:
-
22
-
Dimension(L*W*H):
-
1000*950*1000
-
Weight (KG):
-
100
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce

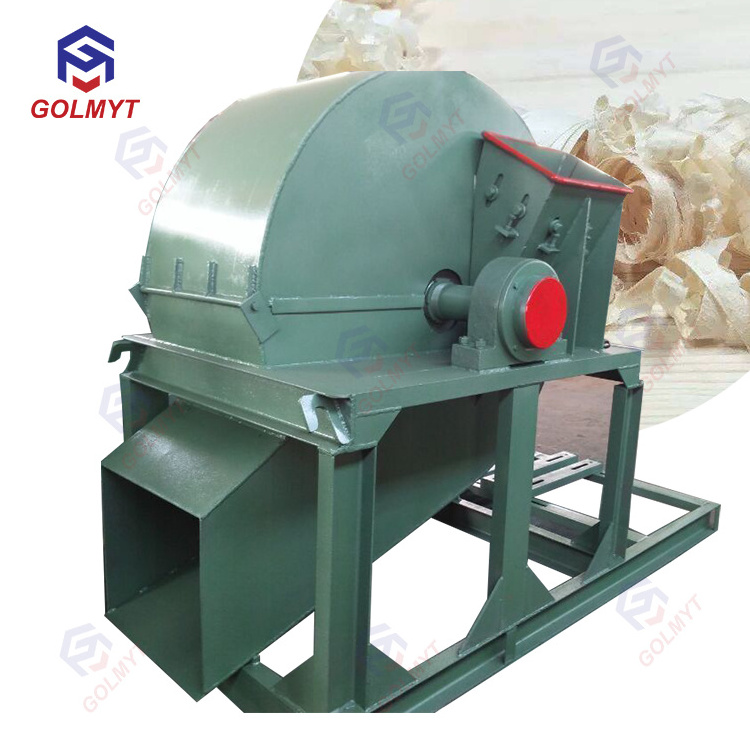

Hot-selling animal bedding wood shaving mill machine Crushing wood material
Factory directly supply timber shaving machine
I ntroduction of shaving machine
Wood shaving machine also called wood crusher, wood chipper, is designed to cut wood into shavings, the production could be used as packing filler, animal bedding , or the raw material for making plywood board , for paper making industry.
Wood shaving machine is mainly used for the bulk production of even thickness wafer shavings and is kind of wood shaving mill automatically.
Working principle of shaving machine
The air cylinder is compressed on the platform by wood clamp device. And the wood reciprocating motion device makes reciprocating motion on the platform which the wood is fed by hydraulic cylinder. The wood and the shaving blade would have contact pressure evenly. Finally, the wood shavings of even thickness are made by shaving blade.
Application of shaving machine
Wood shaving machine filler for the nest of animals, chipboard, raw material for paper making factory, filler of fragile objects for transport company, biological energy source, etc.
Technical parameters
|
Model |
GMT- 420 |
GMT- 600 |
GMT- 800 |
GMT- 1200 |
GMT- 1500 |
|
Blade Dia.(mm) |
420 |
600 |
800 |
1000 |
1150 |
|
Blade No.(pcs) |
4 |
4 |
8 |
8 |
12 |
|
Feeding inlet size(mm) |
140*100 |
250*190 |
310*290 |
460*350 |
520*380 |
|
Power (kw/hp) |
7.5/15 |
22/30 |
30/40 |
55/80 |
75/100 |
|
Capacity (kg/h) |
300 |
800-1000 |
1000-1500 |
1500-2000 |
2000-2500 |
|
Dimension(cm) |
120*50*70 |
155*63*95 |
185*80*110 |
240*100*140 |
300*120*180 |
