Quick Details
-
Certificate:
-
ISO 9001
-
Color:
-
Bule
-
Place of origin:
-
China
-
Brand name:
-
XUNPO
-
Displacement:
-
Standard
-
Deliery:
-
1-3 Days
-
Size:
-
550*700*600mm
-
Power:
-
3KW/4KW, 3KW/4KW
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
No after-sales service
-
Application:
-
Hydraulic hose
-
Certificate:
-
ISO 9001
-
Color:
-
Bule
-
Place of origin:
-
China
-
Brand name:
-
XUNPO
-
Displacement:
-
Standard
-
Deliery:
-
1-3 Days
-
Size:
-
550*700*600mm
-
Power:
-
3KW/4KW, 3KW/4KW
-
Certification:
-
ISO9001

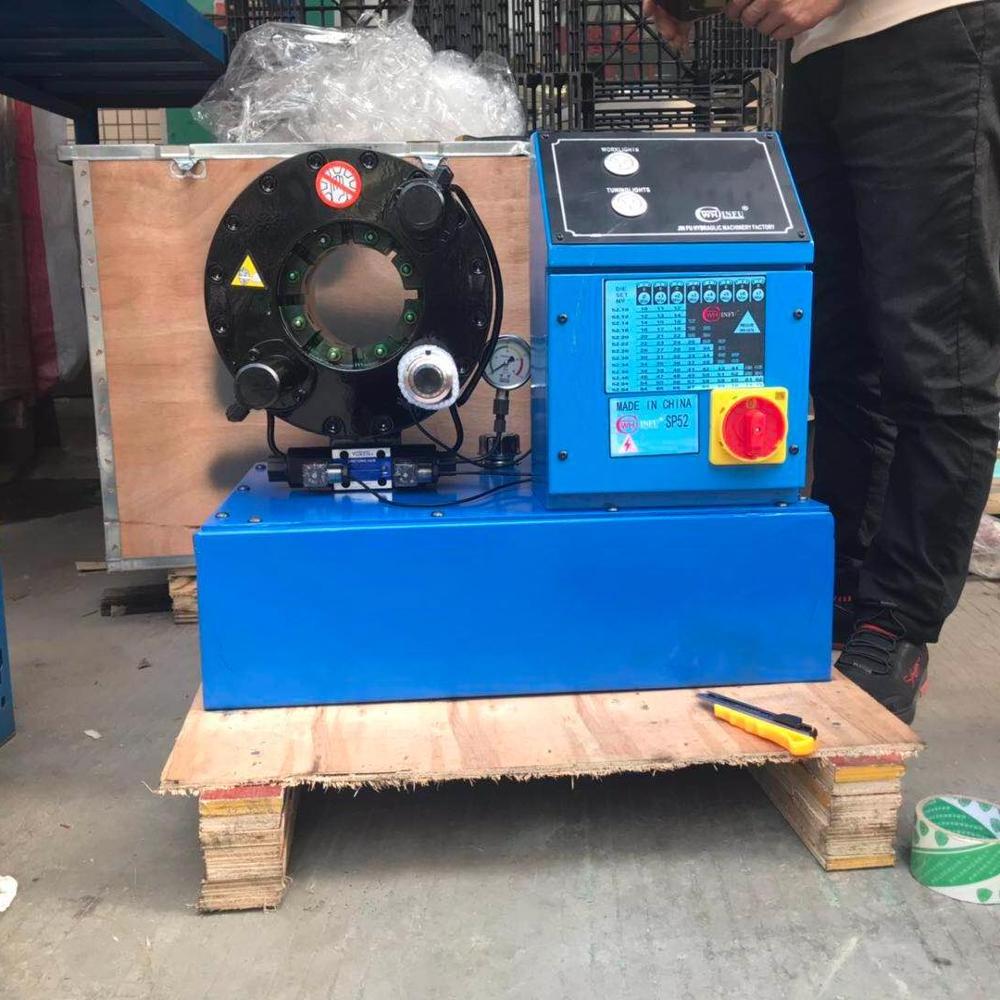

CE 1/8''-2'' finn power crimper machine, P52 high pressure rubber hose crimping tool
SPECIFICATIONS:
Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate
FAC TORIES AND WAREHOUSES
SPECIFICATION:
Max hose ID:2" -spiral Hose
Theoretical Crimping Force(Ton): 407
Max. Pressure(Mpa): 31.5MPA
Die Opening & Closing(mm): +/-40
Max Opening(mm): 136
Motor Size(Kw): 3
Operating Voltage(V):380v-3Ph-50Hz---220v-1ph-50Hz
Full Crimping Circle (Seconds):10
Accuracy(mm):0.02 Max.
Standard dies: 15,19,23,27,31,36,41,47
Optional dies: 53,58,67
Un-even(mm): 0.1 Max.
Weight(Kg): 200
Dimensions(Length×Width×Height): 550x700x600(mm)
DIE-SETS CHART:
The Die Number with "*" tag means it is an Optional Die-set.
Die-sets with specs other than the Chart can be made to order.
|
Die No. |
Range(mm) |
Length(mm) |
Die No. |
Range(mm) |
Length(mm) |
|
15 |
15-19 |
75 |
41 |
41-47 |
75 |
|
19 |
19-23 |
75 |
47 |
47-53 |
75 |
|
23 |
23-27 |
75 |
53* |
53-58 |
75 |
|
27 |
27-31 |
75 |
58* |
58-64 |
75 |
|
31 |
31-36 |
75 |
67* |
67-73 |
75 |
|
36 |
36-41 |
75 |
*Optional Die-sets |
||
DELIVERY TIME:
Within 3days upon receipt of deposit
PAYMENT TERM:
We can accept TT OR LC Whether which term is better for you.
Any suggestion,please let me know.
CERTIFICATE:
ISO certificate
PRODUCT PICTURES
PAYMENT&SHIPPING (Usually Shipped within 24h)
