Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
LAS2GQF-11E/B/12V/S
-
Material:
-
Stainless Steel
-
Operation type:
-
Momentary
-
Function:
-
1NO1NC
-
Terminal type:
-
5 pin Terminals
-
Head shape:
-
Flat Actuator
-
Mounting hole diameter:
-
16mm
-
Type:
-
push button switch
-
Lamp color:
-
Green Red Yellow Blue White Orange; Dual color; RGB
-
Illuminated:
-
ring illuminated
-
Certificate:
-
CE ROHS
Quick Details
-
Protection Level:
-
IP40/IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
230V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
LAS2GQF-11E/B/12V/S
-
Material:
-
Stainless Steel
-
Operation type:
-
Momentary
-
Function:
-
1NO1NC
-
Terminal type:
-
5 pin Terminals
-
Head shape:
-
Flat Actuator
-
Mounting hole diameter:
-
16mm
-
Type:
-
push button switch
-
Lamp color:
-
Green Red Yellow Blue White Orange; Dual color; RGB
-
Illuminated:
-
ring illuminated
-
Certificate:
-
CE ROHS
Most professional manufacturer in China push button market! Keep leading and keep best reputation since 1988!

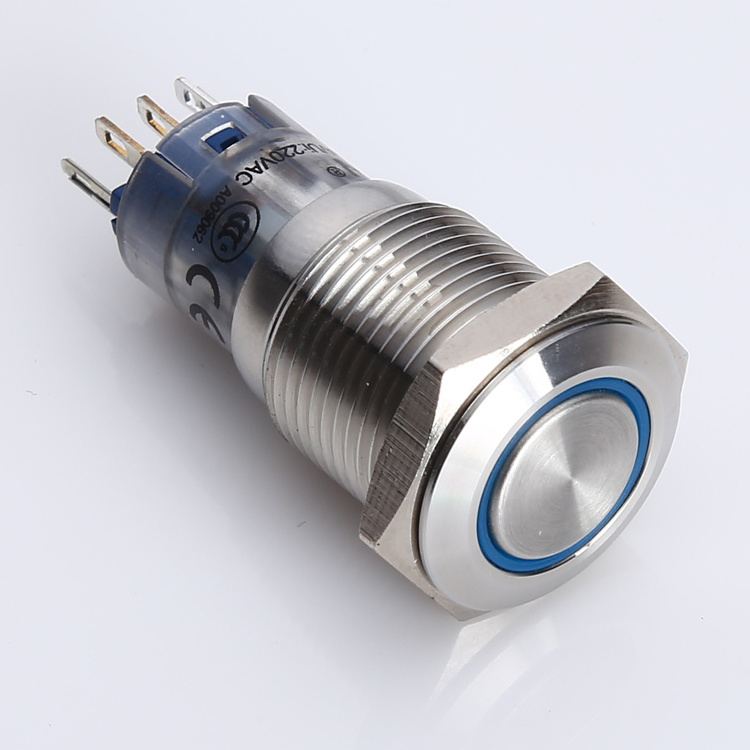

Best quality ONPOW (CE, ROHS) 16mm 1NO1NC ring illuminated stainless steel push button switch
Part number: LAS2GQF-11E/B/12V/S
Install diameter:16mm
Switch rating: 3A/230V
Shape: Flat head
Function: Momentary (1NO1NC)
LED color: Blue ( Red Yellow Green White double color,RGB)
Voltage:1.8V~230V
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40/IP67
Temperature: - 40 to 75 Degree
Best quality ONPOW (CE, ROHS) 16mm 1NO1NC ring illuminated stainless steel push button switch
For more quantity,pls contact us for
GOOD PRICE!!
We can make below special requirement(It will take extra charge,pls contact us first before you order):
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be make like Red , Green , Yellow ,Blue, White , Orange , Golded .
3.Special design for the big diameter to 35mm or small diameter to 8mm.
4. We accept different payment way, like paypal,T.T,Escrow and so on.
5. Other special pls contact me, OEM or ODM for you!!!!
