Quick Details
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-AFGM-2444S
-
Place of Origin:
-
Guangdong, China
-
OEM Service:
-
Yes
-
Voltage:
-
DC48V
-
Transmission Distance:
-
100 Meters
-
Warranty:
-
36 months, life-long maintenance
-
LED Display:
-
Power, Ethernet Data, PoE working status
-
PoE Port Power:
-
Output power 15.4Watts (IEEE802.3af)
-
Power Supply:
-
External Adpater (Input:AC100-240V 50/60Hz, Output:48V 1.25A)
-
Certification:
-
CE RoHS FCC
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
52Gbps
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-AFGM-2444S
-
Place of Origin:
-
Guangdong, China
-
OEM Service:
-
Yes
-
Voltage:
-
DC48V
-
Transmission Distance:
-
100 Meters
-
Warranty:
-
36 months, life-long maintenance
-
LED Display:
-
Power, Ethernet Data, PoE working status
-
PoE Port Power:
-
Output power 15.4Watts (IEEE802.3af)
-
Power Supply:
-
External Adpater (Input:AC100-240V 50/60Hz, Output:48V 1.25A)
-
Certification:
-
CE RoHS FCC

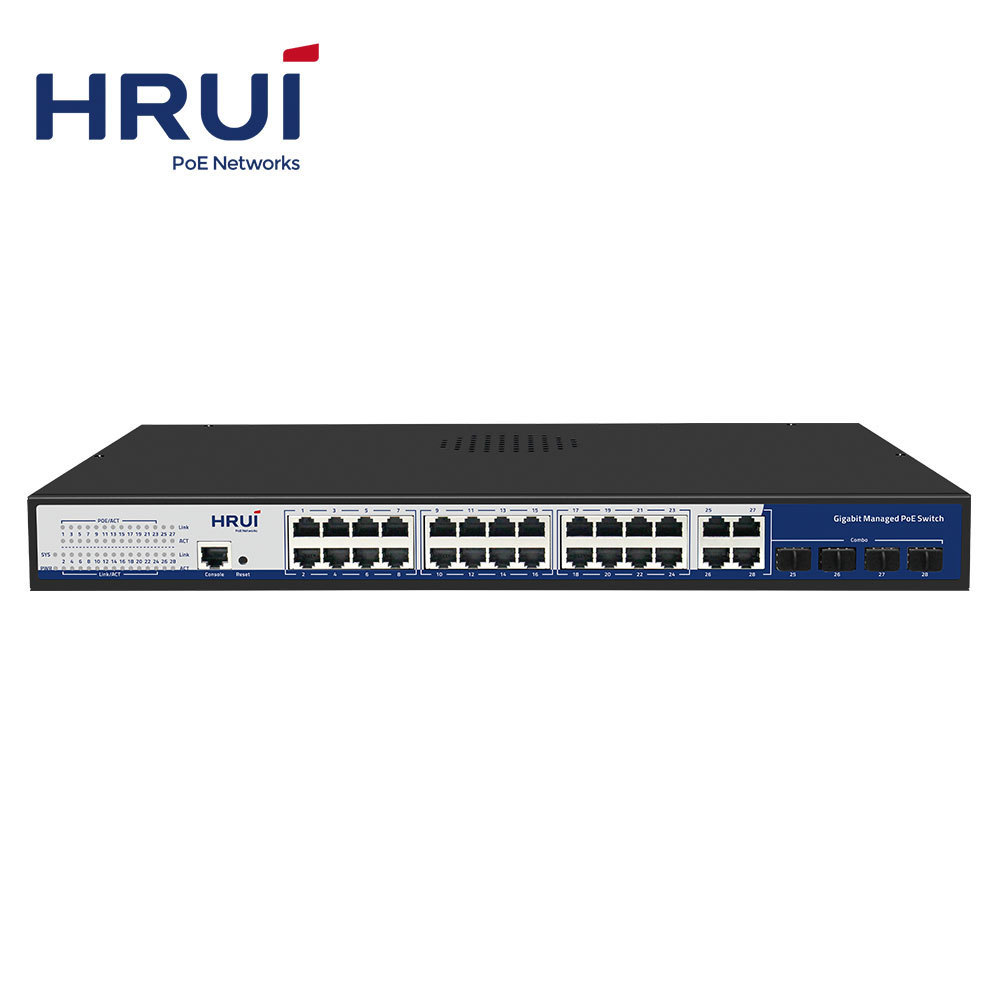

HongRui 32 Port Gigabit POE Watchdog Fanless Surge SFP Managed Layer2 L3 POE Network Switch
network switch managed switch
HongRui 32 Port Gigabit POE Watchdog Fanless Surge SFP Managed Layer2 L3 POE Network Switch
network switch managed switch
|
General Performance Indicator |
|
|
Product Name |
32 Port Gigabit Managed POE Switch |
|
Product Model |
HR-AFGM-2444S |
|
Interface |
24*10/100/1000M POE Ports + 4*Gigabit Ethernet Port+ 4*Gigabit SFP Ports + 1*Console Port |
|
Network Protocols |
IEEE802.3 IEEE802.3u IEEE 802.3ab/ad/az IIEEE 802.3x IEEE 802.1q IEEE 802.1p,QoS IGMP Snooping |
|
PoE Parameters |
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) |
|
PoE compatibility: IEEE 802.3af/at adaptive |
|
|
POE port output: DC52V |
|
|
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-) |
|
|
Network Transmission Medium |
10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: UTP (≤100 m) above Cat5 1000BASE-TX: UTP (≤100 m) above Cat5 |
|
Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
|
Power Supply |
Input Voltage: AC100~-240V; Output: DC 52V;7.69A Total power: 400W/300W |
|
Physical Dimension |
Product size (L×W×H): 445mm× 285mm× 45mm Package size (L × W × H): 500mm × 350mm × 90mm |
|
Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
|
Certification |
CE, FCC, RoHs, 3C |
|
MTBF: |
100,000 hours |
|
Warranty |
2 years warranty |
|
Technical Indicators |
|
|
Bandwidth |
56Gbps |
|
Packet Forwarding rate |
41.66Mpps |
|
Packet Buffer Memory |
4M |
|
Memory Capacity |
128MB |
|
Flash Capacity |
16MB |
|
Jumbo frame |
9.6Kbytes |
|
VLANs |
4096 |
|
MAC |
8K |
|
Forwarding Mode |
Store-And-Forward |
|
Layer 2 Software Function |
|
|
Port Management |
Enable/Disable Port |
|
Speed,Duplex,MTU Setting |
|
|
Flow-control |
|
|
Port Information Check |
|
|
Port Mirroring |
Supports both side-way port mirroring |
|
Port Speed Limit |
Supports port speed limit, speed limit granularity 32Kbps |
|
Port Isolation |
Support the downlink port isolation, and can communicate with the uplink port |
|
Storm Suppression |
Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
|
Link Aggregation |
Support static manual aggregation Support LACP dynamic aggregation |
|
VLAN |
Access |
|
Trunk |
|
|
Hybrid |
|
|
Support port, protocol, MAC-based VLAN partitioning |
|
|
Support GVRP dynamic VLAN registration |
|
|
Voice VLAN |
|
|
MAC |
Support static addition, deletion |
|
MAC address learning limit |
|
|
Support dynamic aging time setting |
|
|
Spanning tree |
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
|
Multicast |
Support static addition, deletion IGMP-snooping |
|
Support MLD-Snooping |
|
|
Support v1/2/3 dynamic multicast monitor |
|
|
DDM |
Support SFP/SFP+DDM |
|
Extended Function |
|
|
ACL |
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
|
Qos |
Based on 802.1p (COS) classification |
|
Based on DSCP classification |
|
|
Classification based on source IP, destination IP, and port number |
|
|
Support SP, WRR scheduling strategy |
|
|
Support flow rate limit CAR |
|
|
LLDP |
Support LLDP link discovery protocol |
|
User settings |
Add / delete users |
|
Log |
User login, operation, status, events |
|
Anti-attack |
DOS defense |
|
Support CPU protection and limits the rate of sending cpu packets |
|
|
ARP binding (IP, MAC, PORT binding) |
|
|
Certification |
Support 802.1x port authentication |
|
Support AAA certification |
|
|
Network diagnosis |
Support ping,telnet,trace |
|
System Management |
Device reset, configuration save/restore, upgrade management, time setting, etc. |
|
Layer 3 Management Function |
|
| Routing function | Static routing |
| IP | IPV4 interface, IPV6 interface |
| ARP | Support ARP |
|
Management function |
|
|
CLI |
Support serial port command line management |
|
SSH |
Support SSHv1/2 remote management |
|
TELNET |
Support telnet remote management |
|
WEB |
Support Layer 2 settings, Layer 2 and Layer 3 monitor |
|
SNMP |
SNMP V1/V2/V3 |
|
Support trap:ColdStart,WarmStart,LinkDown,LinkUp |
|
|
RMON |
Support RMON v1 |
|
Other functions |
Support POE configuration, POE scheduling management, etc |
|
Support DHCP Snooping,Option82 |
|
|
Support Ring-Network Protection |
|
|
Support dynamic ARP detection |
|
|
Support TACACS+ certification |
|
|
Support DNS certification |
|
|
Support port security settings |
|
|
Support MVR protocol |
|
|
Support cable detection VCT function |
|
|
Support UDLD protocol |
|
