New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe
New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe

New Design R32 Full Inverter WIFI Control DC Swimming Pool Heat Pump to Europe

FOB Reference Price: Get Latest Price
≥2 Pieces
US $752
≥50 Pieces
US $728
≥100 Pieces
US $669
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Type:
Air Source Heat Pump
Place of Origin:
Guangdong, China
Brand Name:
Pool World
Model Number:
PW010-KZXYC-H
Function:
Swimming Pool Heating Cooling
Refrigerant:
R32
Low Noise:
Ultra Silent (40dB)
Heat exchanger:
Spiral titanium tube in PVC
COP:
6.5-15.0
Frequency drive board:
Ruking
Material:
ABS Plastic Casing
Compressor type:
Rotary type
Details:
More in the sheet below
Certification:
CB, ce, EMC, Emf, GS, LFGB, RoHS, SASO, UR

Quick Details

Warranty:
2 years
Application:
Outdoor, Hotel, Commercial, Household
Power Source:
Electric
Type:
Air Source Heat Pump
Place of Origin:
Guangdong, China
Brand Name:
Pool World
Model Number:
PW010-KZXYC-H
Function:
Swimming Pool Heating Cooling
Refrigerant:
R32
Low Noise:
Ultra Silent (40dB)
Heat exchanger:
Spiral titanium tube in PVC
COP:
6.5-15.0
Frequency drive board:
Ruking
Material:
ABS Plastic Casing
Compressor type:
Rotary type
Details:
More in the sheet below
Certification:
CB, ce, EMC, Emf, GS, LFGB, RoHS, SASO, UR
Products Description

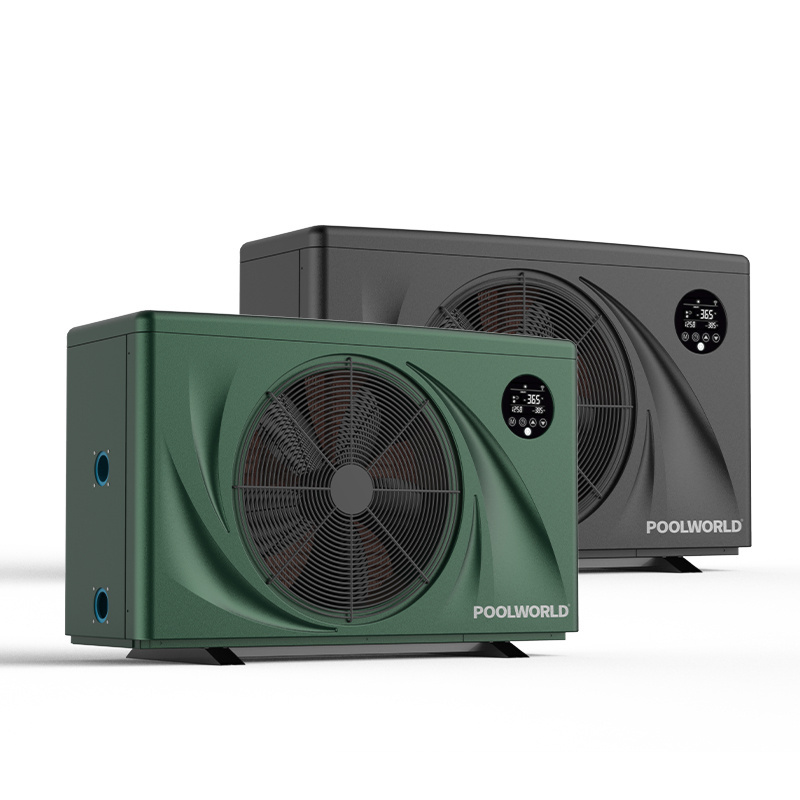

Inverter Quiet Pro Series
Swimming Pool Heat Pump
The appearance of the INVERTER Quiet Pro Series Swimming Pool Heat Pump is a design style newly developed in 2021, which is specially designed for swimming pools of 15 to 130m³.
This series uses ABS blister material, adopting a three-dimensional craft-"wind blade shape"screwless design style, which effectively accomplishes reducing noise with multiple noise reduction methods while performing beauty. It is featured by good impact resistance, heat resistance, low-temperature resistance, which indicates strong durability.
Main Features
Details
ULTRA SILENT
The space where the compressor is located is wrapped with silencing materials, and a fully enclosed design is adopted to implement three noise reduction measures of sound absorption, sound insulation, and buffering for the entire unit to ensure low-noise operation.
ANTI-CORROSION ABS CASING
Low-temperature impact resistance is also better.
It is featured by good gloss, hardness, toughness, and rigidity.
It has a better dyeing performance, so we have 6 colors for you to choose from.
COP as HIGH as 15.0
· COP is up to 15.0 at Air 27°C / Water 26°C / Humidity 80%.
· The average COP is 11.0 during the swimming season.
· Operating at air -7°C - Maximize your pool season.
APP CONTROL
The Wi-Fi function is built into the control panel.
When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.
EMBEDDED LCD CONTROL PANEL
The new control panel adopts the newly designed embedded 5-button display screen in 2021 to ensure the integration of the unit.
The screen can be easily touched (partially touched). The control panel has a built-in WIFI function, which means that with the App remote control function, you can adjust your parameters anytime and anywhere.
Product Paramenters
Model
PW010-KZXYC-H
PW015-KZXYC-H
PW020-KZXYC-H
PW030-KZXYC-H
PW040-KZXYC-H
PW050-KZXYC-H
PW060-KZXYC-H
Advised pool volume (m³)
15~30
20~40
25~50
30~60
40~75
55~100
65~130
Air Operating Temp. (℃)
-15~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)
7.50~1.92
9.50~2.10
11.00~2.50
14.00~3.15
17.00~3.75
20.00~4.00
24.00~4.80
Heating Capacity(Btu)
25500~6528
32300~7140
37400~8500
47600~10710
57800~13090
68000~13600
81600~16320
Consumed power (kW)
1.15~0.13
1.46~0.14
1.83~0.17
2.15~0.21
2.62~0.25
3.33~0.27
4.00~0.32
COP
6.5~14.8
6.5~15.0
6.0~14.7
6.5~15.0
6.5~15.0
6.0~14.8
6.0~15.0
COP at 50% capacity
10.50
11.00
11.00
10.50
11.00
11.00
11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
5.80~1.42
7.2~1.50
8.5~1.65
10.7~2.40
13.0~2.65
15.6~2.85
18.7~3.42
Heating Capacity(Btu)
19720~4828
24480~5100
28900~5610
36380~8160
44200~9010
53040~9690
63580~11630
Consumed power (kW)
1.15~0.20
1.43~0.21
1.77~0.23
2.12~0.34
2.58~0.36
3.25~0.40
3.89~0.49
COP
5.0~7.1
5.0~7.2
4.8~7.2
5.0~7.1
5.0~7.4
4.8~7.0
4.8~7.0
COP at 50% capacity
6.50
6.50
6.50
6.50
6.50
6.50
6.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)
4.0
5.2
6.0
7.2
8.6
10.1
11.8
Sound pressure at 1m dB(A)
38~48
38~48
40~50
42~51
43~52
43~53
44~54
Sound pressure of 50% capacity at 1m dB(A)
40
40
41
43
44
44
45
Sound pressure at 10m dB(A)
18~25
18~25
19~26
22~27
23~30
24~31
25~32
Heat exchanger
Spiral titanium tube in PVC
Casing
ABS Plastic Casing
Power supply
230V/1 Ph/50~60Hz
Water connection (mm)
Φ50
Rated input current at air 15℃(A)
5.1~0.9
6.3~0.9
7.8~1.0
9.3~1.5
11.3~1.6
14.3~1.8
17.8~2.3
Water flow volume(m³/h)
2~4
2~4
3~5
4~6
6~9
8~10
9~12
Water pressure drop (max) kPa
2
3
4
5
5
6
8
Net weight/Gross weight(kg)
62/70
62/70
64/72
77/87
81/91
81/91
90/101
Net size(mm)
1000*396*640
1125*416*765
Package size(mm)(carton)(mm)
1040*410*780
1165*430*905
Package size(mm)(Polywood)(mm)
1060*430*780
1185*450*905
Loading qty (20GP/40GP/40HQ)
78/162/162
52/104/104
Refrigerant
R32
Compressor type/QTY
Rotary type/1
Defrosting
By four way valve
Throttle device
Electronic expansion valve
Frequency drive board
Ruking
Operating water temp. (℃) *heating
9~40
Operating water temp. (℃) *cooling
9~35
Note:
The data above is for reference only.
Please refer to the nameplate on the unit for more specific data.
