Quick Details
-
Brand Name:
-
LUNYEE
-
Model Number:
-
50TYZ
-
Frequency:
-
50HZ
-
Temperature:
-
≤75K
-
Noise:
-
≤40dB(A)
-
Sample:
-
Available
-
Dielectric strength:
-
1800v/s
-
Output torque:
-
5kgf.cm
-
Rotation Direction:
-
CW or CCW
-
Certification:
-
ce
Quick Details
-
AC Voltage:
-
12V/ 24V
-
Warranty:
-
1YEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
50TYZ
-
Frequency:
-
50HZ
-
Temperature:
-
≤75K
-
Noise:
-
≤40dB(A)
-
Sample:
-
Available
-
Dielectric strength:
-
1800v/s
-
Output torque:
-
5kgf.cm
-
Rotation Direction:
-
CW or CCW
-
Certification:
-
ce
Product Specification
|

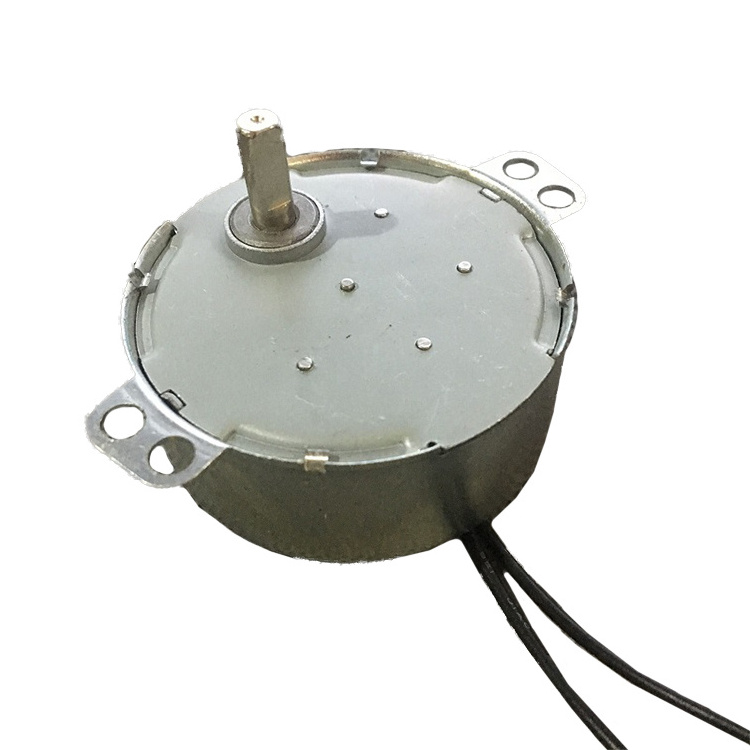

Low speed 50TYZ smal ac synchronous motor permanent magnet motor for home appliances
|
|
|
|
Band name
|
Lunyee
|
|
|
Model No.
|
50TYZ
|
|
|
Speed
|
2.5~3rpm, 5~6rpm, 10~12rpm, 15~18rpm, 30~36rpm
|
|
|
Torque
|
≥7kgf.cm
|
|
|
Current
|
≤25 mA
|
|
|
Fearture
|
Long life, stable, silence, Low power consumption, High torque, Flexible operation, Small size, light weight, easy to use, and
versatile. |
|
|
Material
|
Metal
|
|
|
Application
|
Fan, barbecue machine, oxygen generator, heater, Electric table lamp
|
|
|
Shaft can be customized
|
|
|
Standard
Standard With M4
“D” - CUT
Double "D"-CUT with M3
Drawing
