Quick Details
-
Dimensions (L x W x H) (mm):
-
8520*2300*2400mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Top Brand
-
Product name:
-
Aerial Manlift Work Platform Truck
-
Max. working height:
-
20.6m
-
Max. platform height:
-
18.6m
-
Max. working range:
-
12.08m
-
Max. load capacity:
-
256kg
-
Platform size:
-
1830*760*1150mm
-
Overall dimensions:
-
8520*2300*2400mm
-
Total weight:
-
9900kg
-
Rated power:
-
36.8kW
-
Min.turning radius(outside):
-
5m
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
8520*2300*2400mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Top Brand
-
Product name:
-
Aerial Manlift Work Platform Truck
-
Max. working height:
-
20.6m
-
Max. platform height:
-
18.6m
-
Max. working range:
-
12.08m
-
Max. load capacity:
-
256kg
-
Platform size:
-
1830*760*1150mm
-
Overall dimensions:
-
8520*2300*2400mm
-
Total weight:
-
9900kg
-
Rated power:
-
36.8kW
-
Min.turning radius(outside):
-
5m
Brand New 4WD 20m 36.8KW XGA20K Diesel Mobile Elevating Platform With High Quality
Contact Way
Rita Li -
Sales Manager
Tel:
+86-158-2177-7011
Whatsapp/Wechat/Mobile:
+86-158-2177-7011
Email:
rita@richmchn.com
Product Overview

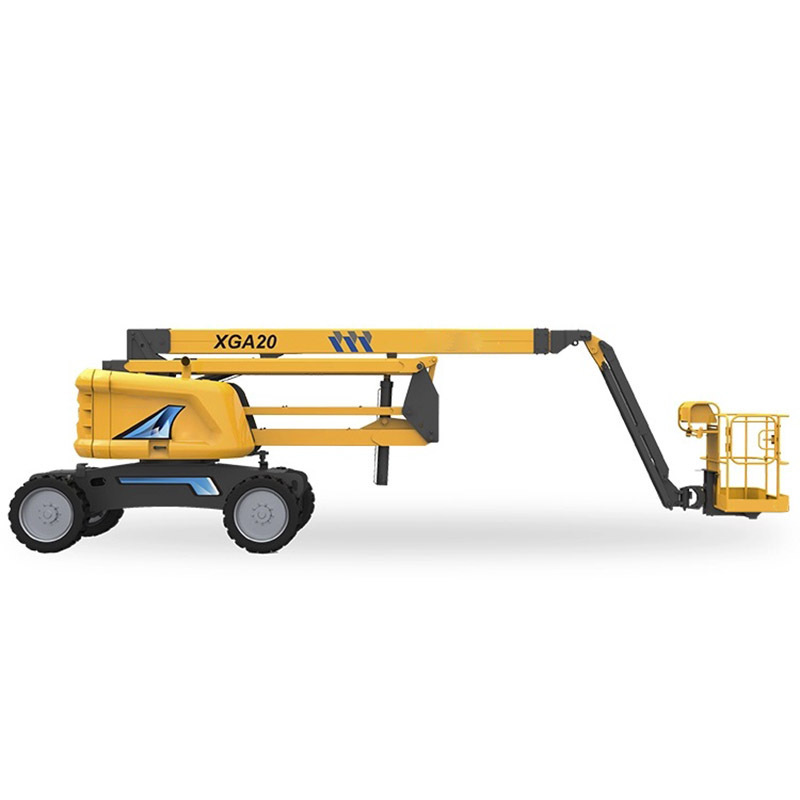

4WD 20m 36.8KW XGA20K Diesel Mobile Elevating Platform
XGA20K mobile articulated boom lift is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.
Advantages and highlights:
* 256/350 kg of double load and big load design, load performance in the industry advanced level.
Advantages and highlights:
* 256/350 kg of double load and big load design, load performance in the industry advanced level.
* Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
* Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.
* Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.
* Compact clever, vehicle layout is compact, convenient for container transportation.
Product Parameters
|
Item
|
|
Unit
|
XGA20K
|
|
|
Dimension
|
Max. Working Height
|
mm
|
20630
|
|
|
|
Max. Platform Height
|
mm
|
18630
|
|
|
|
Max. Working Range
|
mm
|
12080
|
|
|
|
Platform Size
|
mm
|
1830×760×1150
|
|
|
|
a Overall Length
|
mm
|
8520
|
|
|
|
b Overall Width
|
mm
|
2300
|
|
|
|
c Overall Height
|
mm
|
2400
|
|
|
|
d Wheel Base
|
mm
|
2500
|
|
|
Performance
|
Max. Load Capacity
|
kg
|
256(Unrestricted) / 350(Restricted)
|
|
|
|
Travel Speed(stowed)
|
km/h
|
6.5
|
|
|
|
Travel Speed(elevated/extended)
|
km/h
|
0.6
|
|
|
|
Primary boom luffing range
|
°
|
0~72
|
|
|
|
Telescopic boom luffing range
|
°
|
0~73
|
|
|
|
Jib luffing range
|
°
|
/
|
|
|
|
Turntable rotation angle
|
°
|
360 continuous
|
|
|
|
Tailswing
|
mm
|
540
|
|
|
|
Platform rotation angle
|
°
|
160
|
|
|
|
Min.turning radius(outside)
|
mm
|
5000
|
|
|
|
Min.turning radius(inside)
|
mm
|
2300
|
|
|
|
Total weight
|
kg
|
9900
|
|
|
|
Max.gradeability(counterweight upwards)
|
%
|
30
|
|
|
|
Max.gradeability(counterweight downwards)
|
%
|
45
|
|
|
Power Sourse
|
Engine Model
|
-
|
YCF3050-T302
|
|
|
|
Rated Power
|
kW
|
36.8
|
|
|
|
Hydraulic tank capacity
|
L
|
120
|
|
|
|
Hydraulic system capacity
|
L
|
240
|
|
|
|
Fuel tank capacity
|
L
|
90
|
|
