Quick Details
-
Model Number:
-
WB350GFJ
-
Voltage:
-
400/230v
-
Certification:
-
CE
-
Genset model:
-
WB350GFJ
-
Engine model:
-
6300D/J
-
Rated power (kw):
-
350
-
Voltage(V):
-
400/6300/10500
-
Current(A):
-
631/40/24
-
Rated Frequency:
-
50/60
-
Power factor:
-
0.8 lagging
-
Rated speed (r/min):
-
500
-
Engine power (KW):
-
400
-
Exhaust temperature(℃):
-
≤600
Quick Details
-
Power:
-
350kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WOBO
-
Model Number:
-
WB350GFJ
-
Voltage:
-
400/230v
-
Certification:
-
CE
-
Genset model:
-
WB350GFJ
-
Engine model:
-
6300D/J
-
Rated power (kw):
-
350
-
Voltage(V):
-
400/6300/10500
-
Current(A):
-
631/40/24
-
Rated Frequency:
-
50/60
-
Power factor:
-
0.8 lagging
-
Rated speed (r/min):
-
500
-
Engine power (KW):
-
400
-
Exhaust temperature(℃):
-
≤600

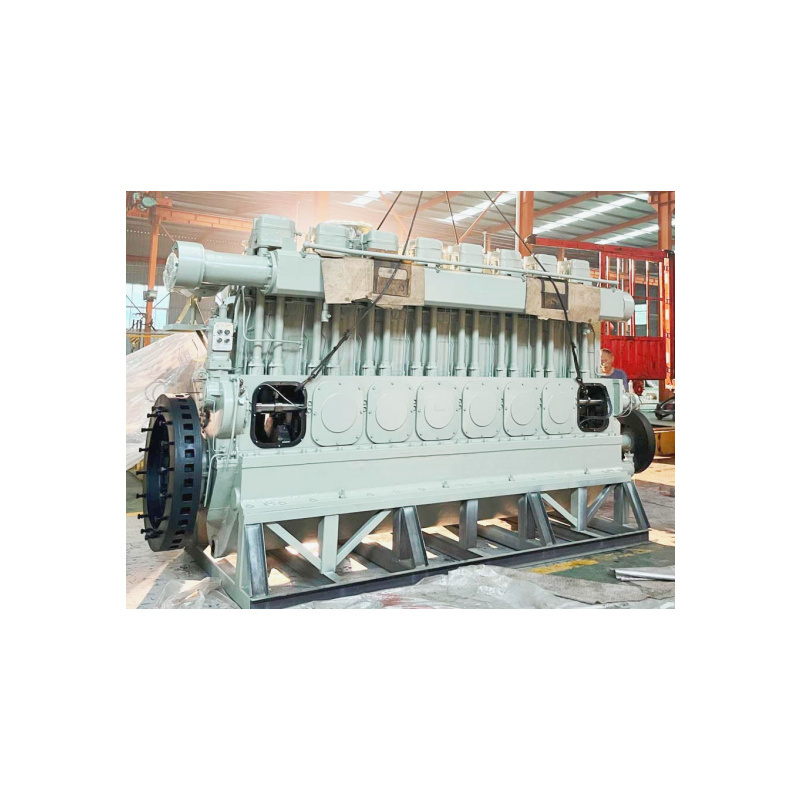

Straw Biomass Gas Power Generator Unit
All Wholesale 40 Kw Efficient Straw Gas Biomass Gas Generator with Gasifier
Products Description
The straw gas generator set is a power generation unit that uses straw gas as fuel. Straw gas is produced through the oxidation-reduction reaction of biomass such as straw, rice husks, wood chips, shrubs, fruit shells, etc., in a gasification furnace. The gas composition of straw gas includes hydrogen, carbon monoxide, and a small amount of methane, with other components such as nitrogen, carbon dioxide, moisture, tar, and particulate matter.
Product Paramenters
|
ltem
|
Technical specifications
|
|
|
|
|
|
|||||
|
Genset model
|
WB300GF
|
WB350GFJ
|
WB400GFJ
|
WB450GFJ
|
WB500GFJ
|
WB600GFJ
|
|||||
|
Engine model
|
6300D/J
|
6300D/J
|
6300D/J-1
|
8300D/J-1
|
8300D/J-2
|
8300D/J-3
|
|||||
|
Rated power (kw)
|
300
|
350
|
400
|
450
|
500
|
600
|
|||||
|
Voltage(V)
|
400/6300/10500
|
400/6300/10500
|
400/6300/10500
|
400/6300/10500
|
400/6300/10500
|
400/6300/10500
|
|||||
|
Current(A)
|
541/34/21
|
631/40/24
|
722/46/28
|
812/52/31
|
902/57/34
|
1083/68/41
|
|||||
|
Rated Frequency
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|||||
|
Power factor
|
0.8 lagging
|
0.8 lagging
|
0.8 lagging
|
0.8 lagging
|
0.8 lagging
|
0.8 lagging
|
|||||
|
Phase and wiring
|
3 Phases 4 wires/3 Phases 6 wires
|
3 Phases 4 wires/3 Phases 6 wires
|
3 Phases 4 wires/3 Phases 6 wires
|
3 Phases 4 wires/3 Phases 6 wires
|
3 Phases 4 wires/3 Phases 6 wires
|
3 Phases 4 wires/3 Phases 6 wires
|
|||||
|
Type
|
Four stroke,open combustion chamber
|
Four stroke,open combustion chamber
|
Four stroke,open combustion chamber
|
Four stroke,open combustion chamber
|
Four stroke,open combustion chamber
|
Four stroke,open combustion chamber
|
|||||
|
Cylinder arrangement mode
|
In-line
|
In-line
|
In-line
|
In-line
|
In-line
|
In-line
|
|||||
|
Ignition mode
|
Spark plug ignition
|
Spark plug ignition
|
Spark plug ignition
|
Spark plug ignition
|
Spark plug ignition
|
Spark plug ignition
|
|||||
|
Cooling mode
|
Water cooling
|
Water cooling
|
Water cooling
|
Water cooling
|
Water cooling
|
Water cooling
|
|||||
|
Aspiration mode
|
Natural aspirated
|
Natural aspirated
|
Natural aspirated
|
Natural aspirated
|
Natural aspirated
|
Natural aspirated
|
|||||
|
Cylinder number
|
6
|
6
|
6
|
8
|
8
|
8
|
|||||
|
Cylinder diameter (mm)
|
300
|
300
|
300
|
300
|
300
|
300
|
|||||
|
Stroke(mm)
|
380
|
380
|
380
|
380
|
380
|
380
|
|||||
|
Displacement(L)
|
161
|
161
|
161
|
215
|
215
|
215
|
|||||
|
Rated speed (r/min)
|
500
|
500
|
600
|
500
|
600
|
600
|
|||||
|
Engine power (KW)
|
330
|
400
|
440
|
500
|
550
|
600
|
|||||
|
Heat consumption at rated load (MJ/kwh)
|
≤11
|
≤11
|
≤11
|
≤11
|
≤11
|
≤11
|
|||||
|
Rotating direction(from flywheel side)
|
Clockwise
|
Clockwise
|
Clockwise
|
Clockwise
|
Clockwise
|
Clockwise
|
|||||
|
Starting mode
|
Compressed air/motor start
|
Compressed air/motor start
|
Compressed air/motor start
|
Compressed air/motor start
|
Compressed air/motor start
|
Compressed air/motor start
|
|||||
|
Exhaust temperature(℃)
|
≤600
|
≤600
|
≤600
|
≤600
|
≤600
|
≤600
|
|||||
|
Gas pressure (kPa)
|
≥2.5
|
≥2.5
|
≥2.5
|
≥2.5
|
≥2.5
|
≥2.5
|
|||||
|
Gas inlet temperature（℃）
|
≤40
|
≤40
|
≤40
|
≤40
|
≤40
|
≤40
|
|||||
|
Oil consumption rate(g/kWh)
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
|||||
|
Overhaul time(h)
|
≥60000
|
≥60000
|
≥60000
|
≥60000
|
≥60000
|
≥60000
|
|||||
|
Size(L*W*H(mm)
|
5800*1600*2900
|
5800*1600*2900
|
5800*1600*2900
|
6400*1600*2900
|
6400*1600*2900
|
6400*1600*2900
|
|||||
|
Weight (kg)
|
18000
|
18000
|
18000
|
22000
|
22000
|
22000
|
|||||
Details Photos
High-quality Components for Gas Generator Sets:
Optional Accessories for Gas Generator Sets：
The advantages of the 300 series biomass gas generator sets:
1.300 series gas generator sets have the advantages of large cylinder diameter, long stroke and large displacement. For biomass gas with low calorific value, the output power of the set can be kept constant.
2. The 300 series unit adopts an internal mixed air intake system and an automatic air-fuel ratio control system, which completely avoids the problem of high hydrogen gas tempering and firing. Prevent backfire and ensure safe gas delivery.
3. Natural suction to ensure the safety of gas transmission. The pressure of the gas source only needs to be greater than 2kpa, which makes the gas unit applicable to a wider range, has a strong applicability to the tar in the gas, and the gas source low-pressure transmission is safer. Self-priming air intake, the gas directly enters the combustion chamber after mixing, no air intake links such as turbocharger and intercooler are required, and there are few components, which naturally reduces the failure rate.
4. The ignition system of the 300 series gas generator sets adopts the ignition system imported from the United States or Germany to ensure controlled ignition, high ignition energy and precise ignition time, so that the work can be more thorough, the energy is larger, and the explosive force is stronger.
5. Removable intake valve box, it is convenient to maintain the intake valve without removing the cylinder head, and it is
convenient to clean the tar in the biomass gas.
6. The low speed ensures the service life of the unit, the annual operation is guaranteed to be 8000h, and the overhaul period is 60000h.
7. The unit can be connected to the grid manually or automatically, and it can also operate in an island, which can realize remote monitoring and operation functions.
2. The 300 series unit adopts an internal mixed air intake system and an automatic air-fuel ratio control system, which completely avoids the problem of high hydrogen gas tempering and firing. Prevent backfire and ensure safe gas delivery.
3. Natural suction to ensure the safety of gas transmission. The pressure of the gas source only needs to be greater than 2kpa, which makes the gas unit applicable to a wider range, has a strong applicability to the tar in the gas, and the gas source low-pressure transmission is safer. Self-priming air intake, the gas directly enters the combustion chamber after mixing, no air intake links such as turbocharger and intercooler are required, and there are few components, which naturally reduces the failure rate.
4. The ignition system of the 300 series gas generator sets adopts the ignition system imported from the United States or Germany to ensure controlled ignition, high ignition energy and precise ignition time, so that the work can be more thorough, the energy is larger, and the explosive force is stronger.
5. Removable intake valve box, it is convenient to maintain the intake valve without removing the cylinder head, and it is
convenient to clean the tar in the biomass gas.
6. The low speed ensures the service life of the unit, the annual operation is guaranteed to be 8000h, and the overhaul period is 60000h.
7. The unit can be connected to the grid manually or automatically, and it can also operate in an island, which can realize remote monitoring and operation functions.
