Quick Details
-
Power:
-
0.8kw
-
Min. Lifting Height:
-
0.8M
-
Table Size:
-
1500x800mm(customised)
-
Overall Dimensions:
-
customised
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2023
-
Item name:
-
Disabled scissor lift hydraulic scissor lift
-
Keywords:
-
hydraulic scissor lift, disabled lift
-
Max. height:
-
1000mm
-
Lift Drive:
-
hydraulic or screw
-
Material of Platform:
-
checkered plate
-
Working Condition:
-
Both indoors and outdoors
-
Material:
-
High-duty Steel Structure
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZTCL
-
Power:
-
0.8kw
-
Min. Lifting Height:
-
0.8M
-
Table Size:
-
1500x800mm(customised)
-
Overall Dimensions:
-
customised
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2023
-
Item name:
-
Disabled scissor lift hydraulic scissor lift
-
Keywords:
-
hydraulic scissor lift, disabled lift
-
Max. height:
-
1000mm
-
Lift Drive:
-
hydraulic or screw
-
Material of Platform:
-
checkered plate
-
Working Condition:
-
Both indoors and outdoors
-
Material:
-
High-duty Steel Structure

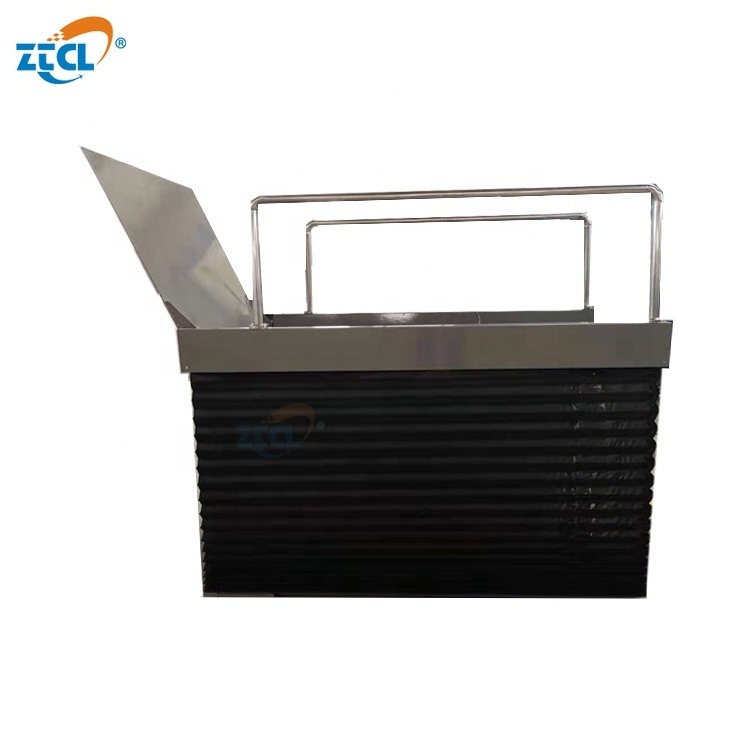

Disabled scissor lift platform wheelchair scissor lifts
Product introduction:
The disabled scissor lift is a device to transport wheelchair or people from one floor to another, also can delivery heavy goods.It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.
Customized product can be done as your request:
Lift height:
0.8-1.5m
Load capacity:
300kg
Platform size: 1500*800mm
Application:
Wheelchair scissor lift is widely used in residential areas, hotels, administrative offices buildings, subways, banks, stadiums, hospitals and other public places. For the aged and disabled people.
Wheelchair scissor lift Technical parameter:
|
Platform size |
1500*800mm |
|
|
Max. Height |
1500mm |
|
|
Min. height |
120mm(from the ground) |
|
|
Entry & Exit Mode |
180° |
|
|
Lifing speed |
60mm/s |
|
|
Max. Loading capacity |
300kg |
|
|
Control source |
24V/DC |
|
|
Motor power |
0.8KW, 24V/DC |
|
|
Power supply |
220V/50HZ/25A (or customized for local power supply) |
|
|
Drive System |
Hydraulic or screw |
|
|
Parallel panels length |
485mm |
|
|
Control method |
Electric control |
|
|
Overload protection |
Over-current relay control |
|
|
Control Mode |
Inching Switch or Automatic |
|
|
Drive Control |
Self-resetting system |
|
|
Material of Platform |
Plastic electrostatic spraying |
|
|
Painting |
Plastic electrostatic spraying |
|
|
Guard panel & drive cabinet (framework) |
Aluminum Alloy / 304 stainless steel |
|
|
Operation Panel |
Polished aluminum Alloy |
|
|
Safety Wane Working Range |
75° |
|
|
Working Condition |
Both indoors and outdoors |
|
|
Working temperature |
From -20°~60°C |
|
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concretefloor below the platform shall not be lower than the ground) |
|
|
Control Device
|
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|
|
Emergency Stop |
The ascending or descending process can be stopped immediately by pressing the emergency button. |
|
Wheelchair scissor platform lift packaged by plywood case
1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
4. Quick responses:
we have a complete service network, hotline(86-531-88890369) services for 24hours and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
24 hours service hotline
86 13075302088 or 0086 053188890369
1. Delivery time
Within 7- 15 working days after we receive the order.
2. Payment terms
T/T, L/C, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
ZHONGTIAN lifts can be custom-made, load.
