Quick Details
-
Core Components:
-
Steel
-
Product name:
-
Revolving Tip & Finger Chuck
-
Model:
-
BARLOAD 25#
-
Application:
-
Bar Feeder
-
Material:
-
Alloy Steel
-
Advantage:
-
High Wear Resistance
-
Speed:
-
10000 RPM
-
Revolving Tip Length:
-
206.2mm
-
Finger Chuck Regulatory Teeth:
-
M10P1.0
-
Service:
-
ODM OEM
-
Package:
-
Plastic Tube+Cartoon Box
Quick Details
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
BARLOAD
-
Model Number:
-
BARLOAD 25# Revolving Tip & Finger Chuck
-
Core Components:
-
Steel
-
Product name:
-
Revolving Tip & Finger Chuck
-
Model:
-
BARLOAD 25#
-
Application:
-
Bar Feeder
-
Material:
-
Alloy Steel
-
Advantage:
-
High Wear Resistance
-
Speed:
-
10000 RPM
-
Revolving Tip Length:
-
206.2mm
-
Finger Chuck Regulatory Teeth:
-
M10P1.0
-
Service:
-
ODM OEM
-
Package:
-
Plastic Tube+Cartoon Box

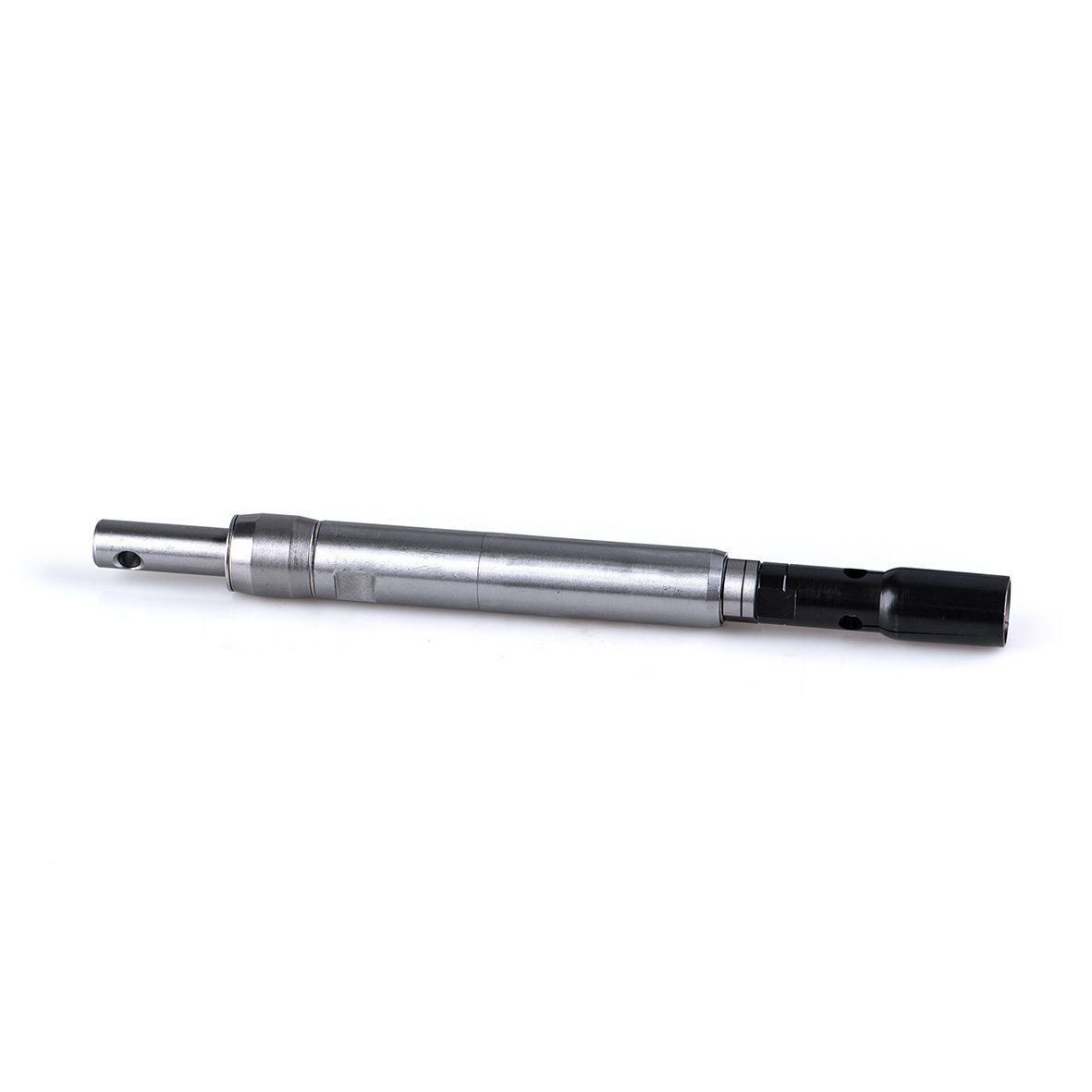

| Product Information |
|
Product |
Revolving Tip |
|
Model |
BARLOAD 25# |
|
Outside Diameter |
25.5mm |
|
Total Length
|
206.2mm |
| Finger Chuck Regulatory Teeth | M10P1.0 |
| Plusher Regulatory Teeth | M10P1.0 |
| Speed | 10000RPM |
| Delivery | Express/Air/Ship |
|
Order Directly
|
Yes |
| Product Information |
|
Product |
Finger Chuck |
|
Model |
BARLOAD 20# |
|
Bar Size |
16.5-23.0mm |
|
Finger Outside Diameter |
25mm |
|
Total Length
|
60mm |
| Regulatory Teeth | M10P1.0 |
| Delivery | Express/Air/Ship |
|
Order Directly
|
Yes |
| BARLOAD-Revolving Tip |
|
Model |
Outsider | Total Length |
|
10# |
10mm | 67.5mm |
| 12# | 12mm | 67.5mm |
| 15# | 15mm | 95mm |
| 16# | 15.5mm | 183mm |
| 20# | 20.5mm | 200.5mm |
| 25# | 25.5mm | 206.2mm |
| BARLOAD-Finger Chuck |
|
Model |
Bar Size | Finger Outside Diameter |
|
10# |
2.0-8.5mm | 10mm |
| 12# | 2.0-10.5mm | 12mm |
| 15# | 3.0-13.0mm | 15mm |
| 16# | 12.0-14.0mm | 16mm |
| 20# | 5.0-18.0mm | 20mm |
| 25# | 16.5-23.0mm | 25mm |
