SC-300A Charging Hydraulic Crimping Tool/Hydraulic Clamp Features
● Power display
● Count display
● Permanent magnet DC motor
Crimping copper/aluminum wire terminals
Crimp copper/Aluminum wire terminals
SC-300A charging hydraulic crimping tool/hydraulic pliers parameters
- Product Details
- {{item.text}}
Quick Details
-
Time/crimp:
-
8 s(CU 150 mm2)
-
Oil storage capacity:
-
166 ml
-
Max pressure:
-
70 Mpa
-
Max stroke:
-
42 mm
-
Max output:
-
125 KN
-
Range of crimping:
-
CU 400 mm2 / AL 300 mm2
-
Crimping dies:
-
16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400
Quick Details
-
Model:
-
SC-400 A
-
Weight:
-
6.5 Kg
-
Size:
-
420*270*72 mm
-
Time/crimp:
-
8 s(CU 150 mm2)
-
Oil storage capacity:
-
166 ml
-
Max pressure:
-
70 Mpa
-
Max stroke:
-
42 mm
-
Max output:
-
125 KN
-
Range of crimping:
-
CU 400 mm2 / AL 300 mm2
-
Crimping dies:
-
16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400
Title goes here.
|
Machine weight
|
4.2Kg
|
|
Size
|
350*270*72mm
|
|
Time/crimp
|
4s（CU150mm²）
|
|
Time/crimp
|
300times（CU150mm²）
|
|
Oil storage capacity
|
166ML
|
|
Max pressure
|
70Mpa
|
|
Max stroke
|
17mm
|
|
Max output
|
65KN
|
|
Range of crimping
|
CU300mm²/AL240mm²
|
|
Crimping dies
|
16、25、35、50、70、95、120、
150、185、240、300 |
|
Li-battery
|
18V 4Ah/5Ah
|
|
Battery weight
|
0.6Kg
|
Title goes here.

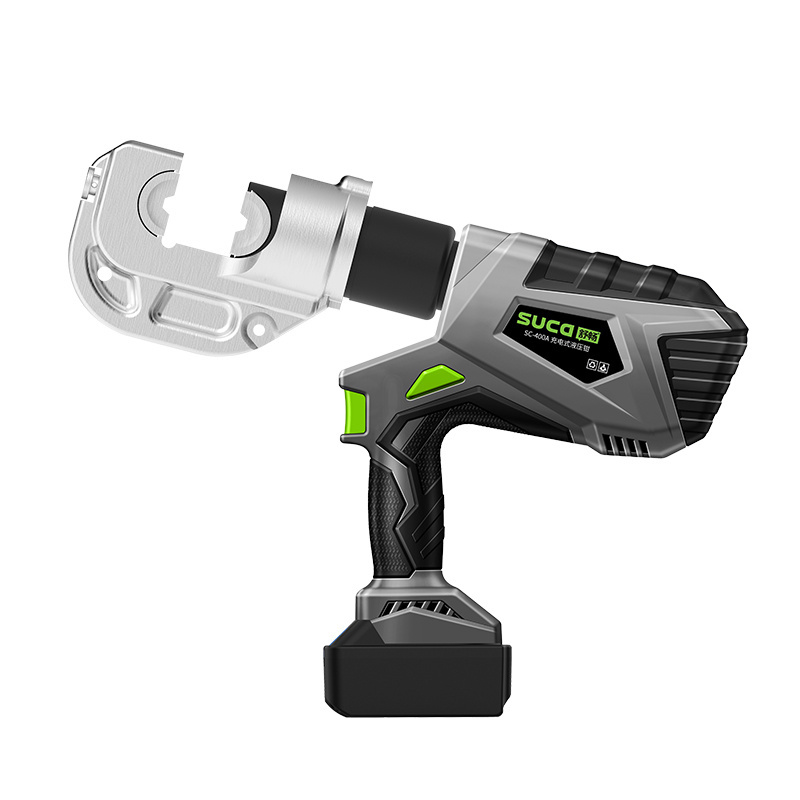

SC-400A Charging Hydraulic Crimping Tool/Hydraulic Clamp Features
● Power display
● Count display
● Permanent magnet DC motor
Crimping copper/aluminum wire terminals
Crimp copper/Aluminum wire terminals
SC-400A charging hydraulic crimping tool/hydraulic pliers parameters
● Power display
● Count display
● Permanent magnet DC motor
Crimping copper/aluminum wire terminals
Crimp copper/Aluminum wire terminals
SC-400A charging hydraulic crimping tool/hydraulic pliers parameters
|
Machine weight
|
6.5Kg
|
|
Size
|
420*270*72mm
|
|
Time/crimp
|
8s（CU150mm²）
|
|
Time/crimp
|
120times（CU150mm²）
|
|
Oil storage capacity
|
166ML
|
|
Max pressure
|
70Mpa
|
|
Max stroke
|
42mm
|
|
Max output
|
125KN
|
|
Range of crimping
|
CU400mm²/AL300mm²
|
|
Crimping dies
|
16、25、35、50、70、95、120、
150、185、240、300、400 |
|
Li-battery
|
18V 4Ah/5Ah
|
|
Battery weight
|
0.6Kg
|
Title goes here.
SC-300B Charging Hydraulic Crimping Tool/Hydraulic Clamp Features
● Power display
● Count display
● Permanent magnet DC motor
Crimping copper/aluminum wire terminals
Crimp copper/Aluminum wire terminals
SC-300B charging hydraulic crimping tool/hydraulic pliers parameters
● Power display
● Count display
● Permanent magnet DC motor
Crimping copper/aluminum wire terminals
Crimp copper/Aluminum wire terminals
SC-300B charging hydraulic crimping tool/hydraulic pliers parameters
|
Machine weight
|
3.8Kg
|
|
Size
|
400*120*70mm
|
|
Time/crimp
|
5s（CU150mm²）
|
|
Time/crimp
|
300times（CU150mm²）
|
|
Oil storage capacity
|
48ML
|
|
Max pressure
|
70Mpa
|
|
Max stroke
|
17mm
|
|
Max output
|
65KN
|
|
Range of crimping
|
CU300mm²/AL240mm²
|
|
Crimping dies
|
16、25、35、50、70、95、120、
150、185、240、300 |
|
Li-battery
|
18V 3Ah/4Ah/5Ah
|
|
Battery weight
|
0.35/0.6Kg
|
