Quick Details
-
Brand Name:
-
Huatian
-
Model Number:
-
HTGK-III
-
Product name:
-

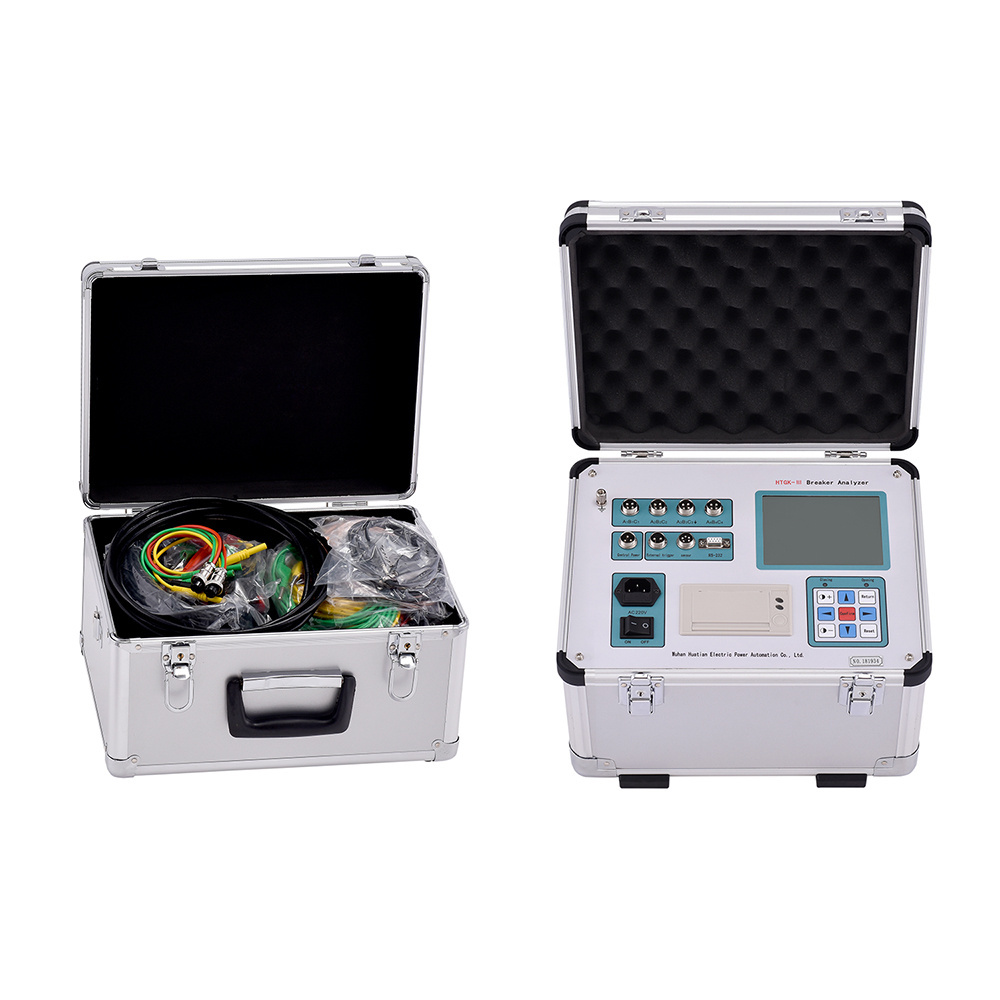

Circuit Breaker Analyzer
-
Atmospheric pressure:
-
86~106kpa ℃
-
Time:
-
16000.0ms
-
Speed:
-
20.00m/s
-
Insulation resistance:
-
>2MΩ
-
Current:
-
20.00A
-
Power supply:
-
220V±10% 50Hz±10%
-
Temperature range:
-
-10~45℃
-
Humidity:
-
≤80%RH
-
Host Dimension ,weight:
-
360*290*280mm ; 6kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Huatian
-
Model Number:
-
HTGK-III
-
Product name:
-
Circuit Breaker Analyzer
-
Atmospheric pressure:
-
86~106kpa ℃
-
Time:
-
16000.0ms
-
Speed:
-
20.00m/s
-
Insulation resistance:
-
>2MΩ
-
Current:
-
20.00A
-
Power supply:
-
220V±10% 50Hz±10%
-
Temperature range:
-
-10~45℃
-
Humidity:
-
≤80%RH
-
Host Dimension ,weight:
-
360*290*280mm ; 6kg
Product Paramenters
|
Use environment
|
Input Power supply
|
220V±10% 50Hz±10%
|
|
|
Atmospheric pressure
|
86～106kpa ℃
|
|
|
Temperature
|
－10～45℃
|
|
|
Humidity
|
≤80%RH
|
|
Safety performance
|
Insulation resistance
|
＞2MΩ
|
|
|
Dielectric strength
|
Power supply on the chassis power frequency 1.5kV withstand voltage for 1 minute, no flashover and arcing
|
|
Basic parameters
|
Time
|
Range：16000.0ms，Resolution：0.1ms
error：①within 200ms，0.1ms±1 word ②200ms or above，±2% ③The same period，±0.1ms |
|
|
Speed
|
Range：20.00m/s，Resolution0.01m/s
error：①within 0～2m/s，±0.1m/s±1 digital ②2m/s or above |
|
|
Stroke
|
Vacuum circuit breaker：Range：50.0mm，Resolution：0.1mm，error：±0.5mm
SF6 circuit breaker：Range：300.0mm，Resolution：0.1mm，error：±2mm Less oil circuit breaker：Range：600.0mm，Resolution：0.1mm，error：±2mm |
|
|
Current
|
Range：20.00A ，Resolution：0.01A
|
|
|
Output power supply
|
12-way metal fracture
|
|
|
Fracture type
|
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
|
|
|
Diemension and Weight
|
Host：360×290×280mm ; 6kg
annex：370mm×280mm×220mm ; 9kg |
Function&Characteristics
1. Time:
the inherent score of 12 fractures, closing time, the same period, the same period
2. Reclosing:
Breaker Analyzer every break of the minute-divide, minute-close, minute-close-point; process time: one minute time, one time, two time, gold short time, no current time value
3. Bouncing:
closing bounce time of each fracture, number of bounces, bounce process, bounce waveform; amplitude of bounce rebound per fracture
4. Speed:
just divided, just combined speed, maximum speed, time-stroke characteristic curve
5. Itinerary:
total stroke, open distance, over travel, overshoot stroke, rebound amplitude
6. Current:
minute, closing coil, closing current value, current waveform
7. Operating voltage:
DC30 ~ 250V / 20A digital adjustable circuit breaker action power supply, automatic low-voltage operation test of the circuit breaker, measuring the operating voltage value of the circuit breaker
