Quick Details
-
Brand Name:
-
Nobeth
-
Dimension(L*W*H):
-
730*500*880mm
-
Weight:
-
73kg
-
Product name:
-

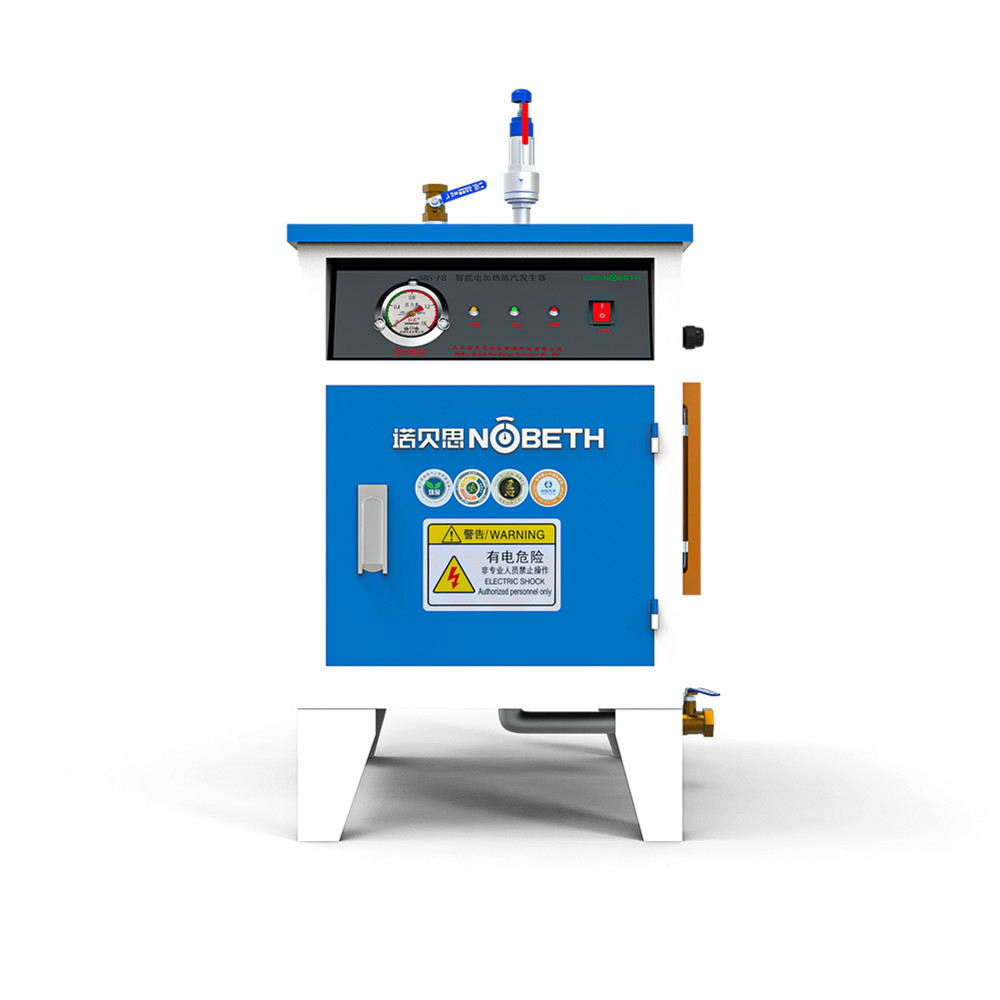

9kw Electric steam generator
-
Voltage:
-
220/380V
-
Rated Pressure:
-
0.7Mpa
-
Certification:
-
CE,ISO9000
-
After Sale Service:
-
Overseas Service
-
Transport package:
-
wood frame
Quick Details
-
Core Components:
-
furnace
-
Steam Production:
-
12kg/h
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Nobeth
-
Dimension(L*W*H):
-
730*500*880mm
-
Weight:
-
73kg
-
Product name:
-
9kw Electric steam generator
-
Voltage:
-
220/380V
-
Rated Pressure:
-
0.7Mpa
-
Certification:
-
CE,ISO9000
-
After Sale Service:
-
Overseas Service
-
Transport package:
-
wood frame
Product Description
Nobeth-FH mainly composed of water supply, automatic control , heating, safety protection system and furnace liner.
Its basic working principle is to through a set of automatic control devices, and ensure the liquid controller( the probe or the floating ball) to control the opening and closing of the water pump, the length of water supply, and the heating time of the furnace during operation.
As the contious output with steam, the water level of the furnace keeps dropping. When it is at a low water level (mechanical type) or a middle water level (electronic type), the water pump automatically replenishes water, and when it reaches a high water level, the water pump stops replenishing water.
Meantime, The electric heating tube in the tank continues to heat, and steam is continuously generated. The pointer pressure gauge on the panel or on the upper part of the top displays the value of the steam pressure timely. The whole process can be automatically displayed through the indicator light or the smart display.
Its basic working principle is to through a set of automatic control devices, and ensure the liquid controller( the probe or the floating ball) to control the opening and closing of the water pump, the length of water supply, and the heating time of the furnace during operation.
As the contious output with steam, the water level of the furnace keeps dropping. When it is at a low water level (mechanical type) or a middle water level (electronic type), the water pump automatically replenishes water, and when it reaches a high water level, the water pump stops replenishing water.
Meantime, The electric heating tube in the tank continues to heat, and steam is continuously generated. The pointer pressure gauge on the panel or on the upper part of the top displays the value of the steam pressure timely. The whole process can be automatically displayed through the indicator light or the smart display.
Advantage：
1.
The shell is made of thicker steel plate, and it adopts special painting process, which is not easy to damage and can protect the internal structure better.
2. High-quality heating elements - longer life, adjustable power - energy saving on request.
3. Water tank above the water pump - wrater pump hard to take in air, prolongs service life time.
4. Double safety guarantee with adjustable pressure controller and safety valve.
|
Nobeth Model
|
Rated capacity
|
Rated working pressure
|
Saturated steam temperature
|
External dimension
|
|
NBS-FH9kw
|
12KG/H
|
0.7Mpa
|
339.8℉
|
700*500*950mm
|
FAQ
Q1: Are you manufacturer? or trading company?
A: Nobeth is a professional boiler manufacturer with 22 years' experience. We are always adhered to the five core principles of energy conservation, environmental protection, efficiency, safety and inspection exemption. It has independently developed more than 200 series of products. Customization is our advantage. Welcome to visit our factory.
Q2: OEM,ODM acceptable or not?
A:Absolutely Yes.
Q3:Can we visit your factory online?
A:Absolutely no problem.
Q4:Can online video inspection before shipment?
A: Absolutely no problem.
Q5: What's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem.
Q6:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
Q7: Can it be customized? A: Yes, customized product is acceptable.
