Quick Details
-
Brand Name:
-
Lumiax
-
Model Number:
-
Magic series
-
Work Time (h):
-
24 hours/ dusk to dawn/ timer
-
Max PV Power:
-
130W~780W
-
Max PV Voltage:
-
55V/100V/150V
-
Certificate:
-
CE/RoHS/ISO9001/ISO14001
-
Warranty:
-
2 years
-
System voltage:
-
12v/24v
-
Battery type:
-
Liquid/GEL/AGM/Lithium
-
Load current:
-
10A/15A/20A/30A
-
MPPT tracking efficiency:
-
>99.9%
-
Max charge conversion:
-
98%
-
communication:
-
RS485/Bluetooth/IOT optional
-
Grounding:
-
Common negative
-
Ambient temperature:
-
-20~55℃
-
Ambient Humidity:
-
0~100%RH
-
Max. Altitude:
-
4000m
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lumiax
-
Model Number:
-
Magic series
-
Work Time (h):
-
24 hours/ dusk to dawn/ timer
-
Max PV Power:
-
130W~780W
-
Max PV Voltage:
-
55V/100V/150V
-
Certificate:
-
CE/RoHS/ISO9001/ISO14001
-
Warranty:
-
2 years
-
System voltage:
-
12v/24v
-
Battery type:
-
Liquid/GEL/AGM/Lithium
-
Load current:
-
10A/15A/20A/30A
-
MPPT tracking efficiency:
-
>99.9%
-
Max charge conversion:
-
98%
-
communication:
-
RS485/Bluetooth/IOT optional
-
Grounding:
-
Common negative
-
Ambient temperature:
-
-20~55℃
-
Ambient Humidity:
-
0~100%RH
-
Max. Altitude:
-
4000m
Products Description
|

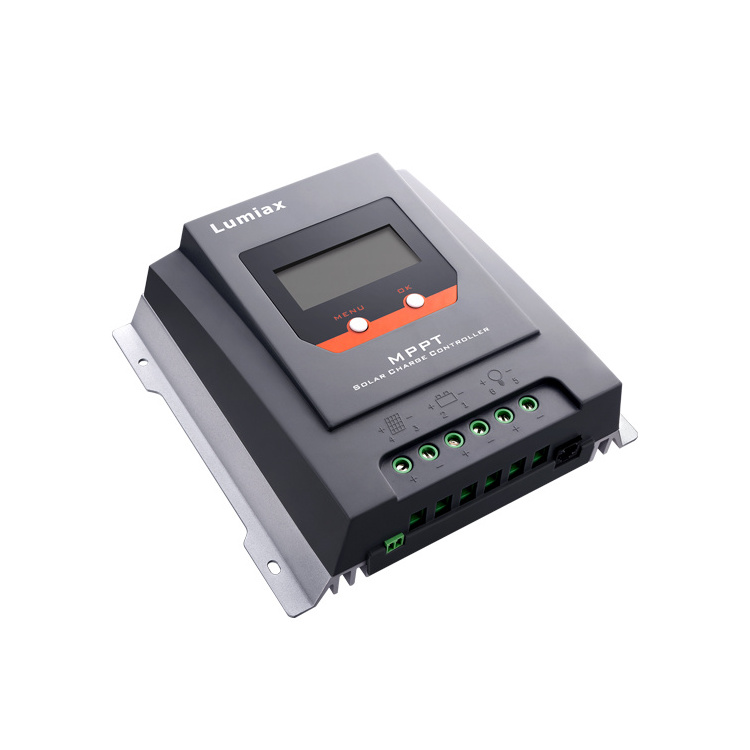

MPPT solar charge controller tracking efficiency >99.9%，High charge conversion efficiency up to 98%.
|
|
1. Thick heatsinks - enhances heat dissipation and prolongs service life
|
|
2. LCD display -Easy to operate and read
|
|
3.RS485 - realize different customized requirements
|
|
Suitable for many types of batteries：Gel,AGM,Liquid,Lithium
|
Product Paramenters
Certifications
Our Factory
|
1. 15 years brand, quality guarantee.
|
|
2. R&D，manufacture and trade integration .
|
|
3. Certificates of ISO9001, ISO14001, CQC, CE, RoHS. Passed the factory inspection under TUV .
|
|
4. Over 1 million solar charge controllers exported more than 100 countries.
|
|
5. Fast delivery.
|
|
6. After salesservice guarantee.
|
