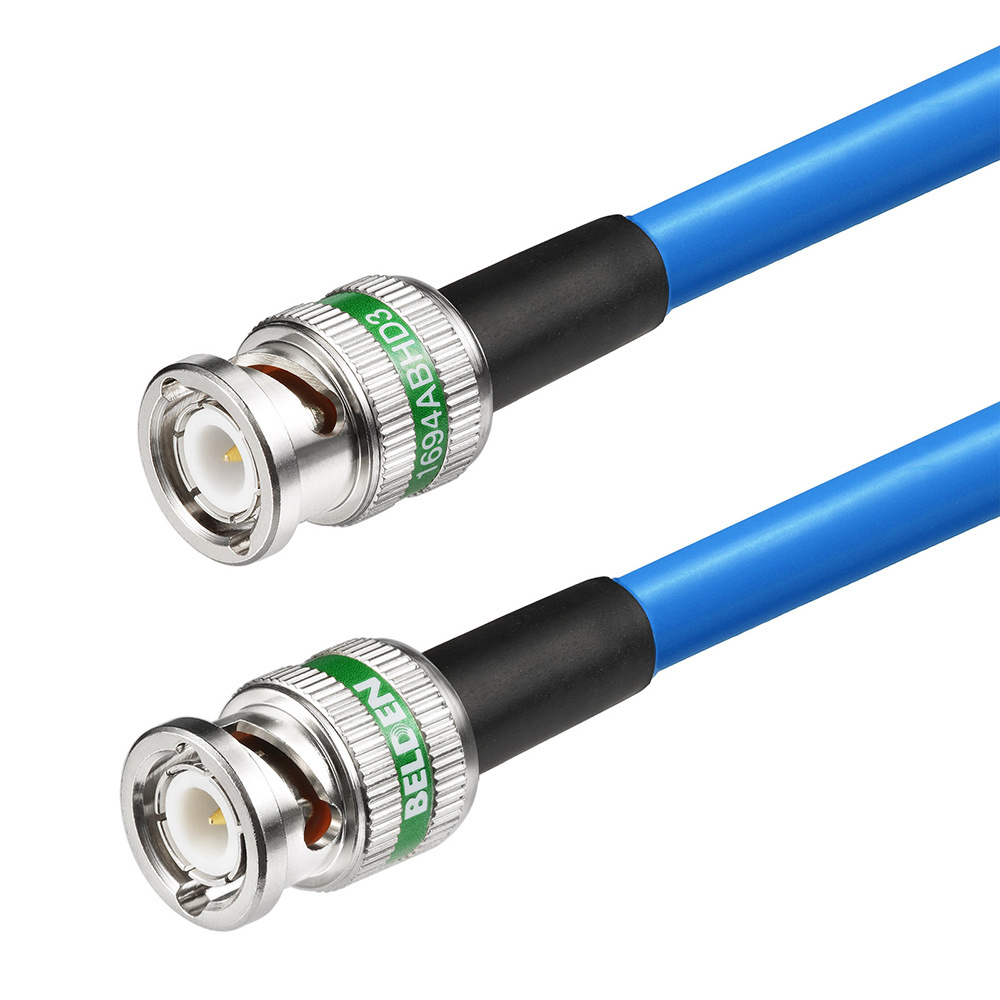

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A;100M)
Both ends BNC male (plug), Connector: Gold plated, Impedance: 75 Ohm, Cable Type: Belden 1694A;18 AWG, Standard Definition SD-SDI
(270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88
Gbps, ST 2082)
Product Descriptions:
BELDEN 1694 PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6
type coax cable. Featuring RG-6/U type, 18 AWG solid. 040" bare copper conductor, Gas-injected FHDPE - Foam High-Density
Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC
- Polyvinyl Chloride.
- Product Details
- {{item.text}}
Quick Details
-
Item:
-
75 Ohm BNC Male Belden 1694A 4K/8K Video CCTV Camera SDI Cable
-
Connector 1:
-
Belden BNC Male Straight Plug
-
Connector 2:
-
Belden BNC Male Straight Plug
-
Cable type:
-
Belden 1694A Cable
-
Cable length:
-
100M default/Can be customized
-
Impedance:
-
75 Ohm
-
Color:
-
Customized Color
-
MOQ:
-
1 Piece
-
Insulation:
-
PE
-
Package:
-
1PC/BAG
Quick Details
-
Brand Name:
-
Superbat
-
Model Number:
-
AC-B04SP1-B04SP1-1694A-10000
-
Place of Origin:
-
Guangdong, China
-
Item:
-
75 Ohm BNC Male Belden 1694A 4K/8K Video CCTV Camera SDI Cable
-
Connector 1:
-
Belden BNC Male Straight Plug
-
Connector 2:
-
Belden BNC Male Straight Plug
-
Cable type:
-
Belden 1694A Cable
-
Cable length:
-
100M default/Can be customized
-
Impedance:
-
75 Ohm
-
Color:
-
Customized Color
-
MOQ:
-
1 Piece
-
Insulation:
-
PE
-
Package:
-
1PC/BAG
Products Description
|
Brand Name
|
SUPERBAT
|
|
Product Name
|
75 Ohm Coaxial Cable 6G-SDI Belden 1694A Cable 100M
|
|
Connector 1
|
Belden BNC Male Straight Plug
|
|
Connector 2
|
Belden BNC Male Straight Plug
|
|
Cable Type
|
Belden 1964A Cable
|
|
Impedance (Ohms)
|
75 Ohm
|
|
Cable Length
|
100M Default/Can Be Customized
|
|
Warranty
|
12 Months Warranty
|
|
Product Certificates
|
CE ; RoHs ; FCC
|
|
Samples
|
Details Images
Product Specifications:
Product Applications:
This is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.
Features and Specifications:
Center conductor: 0.40" dia. bare copper
Dielectric: 0.180" dia. foamed PE
Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and
RFI,for excellent noise rejection
Nominal impedance: 75 ohms-ideal - for audio and video
PVC outer jacket - for durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
Overall diameter: 0.274".
Serial Digital Data Rates:
Standard Definition SD-SDI (270 Mbps, ST 259)
HD standard HD-SDI (1.483 Gbps, ST 292)
3G-SDI (2.97 Gbps, ST 424)
6G-SDI (5.94 Gbps, ST 2081)
12G-SDI (11.88 Gbps, ST 2082)
This is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.
Features and Specifications:
Center conductor: 0.40" dia. bare copper
Dielectric: 0.180" dia. foamed PE
Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and
RFI,for excellent noise rejection
Nominal impedance: 75 ohms-ideal - for audio and video
PVC outer jacket - for durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
Overall diameter: 0.274".
Serial Digital Data Rates:
Standard Definition SD-SDI (270 Mbps, ST 259)
HD standard HD-SDI (1.483 Gbps, ST 292)
3G-SDI (2.97 Gbps, ST 424)
6G-SDI (5.94 Gbps, ST 2081)
12G-SDI (11.88 Gbps, ST 2082)
Custom service:
We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we
can customize the connectors and cables according to your requirements. If you are interested in them, please contact us, thank
you!
We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we
can customize the connectors and cables according to your requirements. If you are interested in them, please contact us, thank
you!
