Quick Details
-
Brand Name:
-
OilMan
-
Product name:
-
API Oil well cementing tool single plug cement head for casing
-
Size:
-
5" - 13 3/8"
-
Manifold:
-
2" 1502 Union
-
Max rated pressure (MPa):
-
21 - 35
-
Certification:
-
API
Quick Details
-
Weight (KG):
-
35
-
Marketing Type:
-
Hot Sale Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OilMan
-
Product name:
-
API Oil well cementing tool single plug cement head for casing
-
Size:
-
5" - 13 3/8"
-
Manifold:
-
2" 1502 Union
-
Max rated pressure (MPa):
-
21 - 35
-
Certification:
-
API

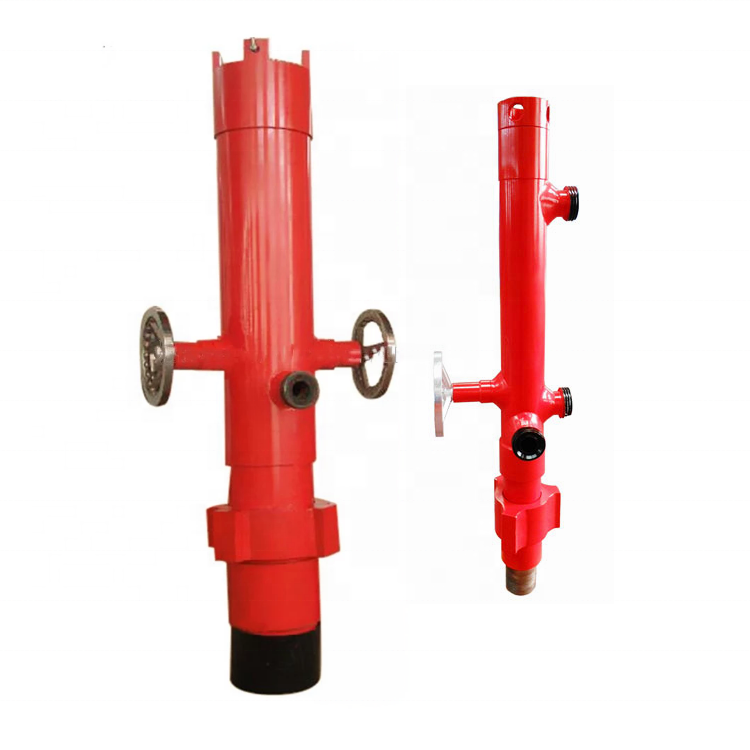

API Oil well cementing tool single plug cement head for casing
API Oil well cementing tool single plug cement head for casing
Description:
Cement Head is a special tool for pumping slurry and releasing plug. It makes the drilling fluid fill into casing in turn and quickly.
Function:
Connect casing string and cementing manifold.
Features:
1. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.
2. Double balance pipe is developed.
3. Positive lever indicates plug releasing.
4. Main parts are made from AISI 4145H alloy steel.
5. Top cover and union nut with large trapezoidial-threaded, it makes the tool convenient to disassemble and carry.
Not only common thread,also special thread cement head can be produced including NEW VAM,VAM TOP,FJ ETC.
Drill Pipe Cementing Head Single-Plug & Double-Plug Cementing Head
|
Type |
127 |
177.8 |
244.5 |
339.7 |
|
|
(5″) |
(7″) |
(9 5 / 8 ″) |
(13 3 / 8 ″) |
|
Max rated pressure (MPa) |
35 |
35 |
35 |
21 |
|
Connecting Thread |
BTC |
BTC |
BTC |
BTC |
|
Manifold |
2″1502 Union |
2″1502 Union |
2″1502 Union |
2″1502 Union |
|
ID of main body(mm) |
113 |
160 |
225 |
320 |
|
Length of top plug container(mm) |
270 |
270 |
290 |
375 |
|
Length of bottom plug container(mm) |
270 |
270 |
290 |
375 |
|
T otal length(mm) |
1686 |
1718 |
1993 |
2152 |
API Oil well cementing tool single plug cement head for casing
Packing: Wooden case, or customized packing.
Delivery time : Stock or depending on quantity
Delivery: By truck, train, air, sea
