Quick Details
-
Diameter:
-
4
-
Length:
-
5.0
-
Flame class:
-
94V-2
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Material:
-
PA
-
Color:
-
Black
-
Diameter:
-
4
-
Length:
-
5.0
-
Flame class:
-
94V-2

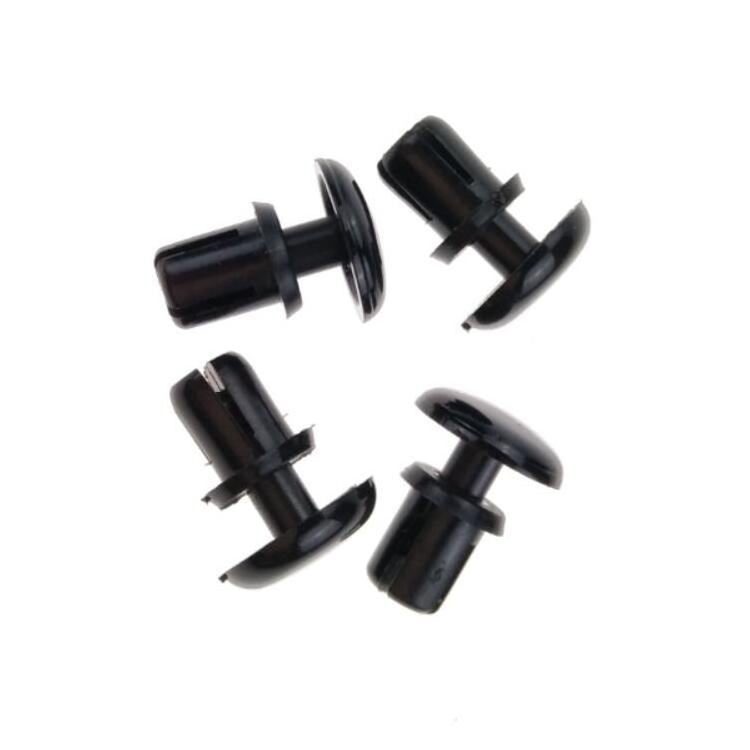

Black Plastic Nylon Push Rivets Fastener for PC Support Locking Standard SR4050
Plastic nylon push rivets are also known as push-in rivets , they are made from nylon grade 66 with resistant fire grade UL94V-2 , they are normaly used to electronics for replacement of screws .
There are two different styles for push rivets , one is rivet with two locking segments , and another one is with four locking segments , they are designed to lock panels .
Material
Plastic nylon
Physical Properties
| Tensile strength MPa | 70 |
| Elongation at break % | 40 |
| Bending strength MPa | 90 |
| Modulus of elasticity for tension MPa | 3160 |
| Compressive strength MPa | 127 |
| Shearing strength MPa | 67 |
| Fatigue MPa | 35 |
| Hardnee ( HR ) |
94 |
Specification
|
Diameter |
4 |
|
|
Length |
5.0 |
Optional Sepcifications
| Specification | A | B | C | D | E |
| SR3045 | 6.4 | 1.6 | 4.5 | 3 | 6.1 |
| SR3055 | 6.4 | 1.6 | 5.5 | 3 | 6.1 |
| SR3065 | 6.4 | 1.6 | 6.5 | 3 | 7.1 |
| SR3075 | 6.4 | 1.6 | 7.5 | 3 | 9 |
| SR3080 | 6.4 | 1.6 | 8 | 3 | 9 |
| SR3090 | 6.4 | 1.6 | 9 | 3 | 11 |
| SR3010 | 6.4 | 1.6 | 10 | 3 | 11 |
| SR3023 | 6.4 | 1.6 | 23 | 3 | 24 |
| SR3535 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
Unshowed specifications , pls refer to us for details .
1 . Resistant corrosion
Plastic push rivets are not rusted .
2 . Fire proof
Plastic nylon rivets are meet UL 94V-2 requirements
3 . Resistant water
Nylon rivets are not dissolved to water
4 . Resistant wear
5 . Resistant high temperature
Nylon push rivets are resistant of 120 degree or more .
6 . Perfect insulation
Plasic nylon push rivets are often used for fixing PC panel or thin metal sheets with light duty .
1 . Different dimensions for different panel thickness ( pleas refer to us for details )
2 . Far from fire for longer service
|
|
|
|
Bulk ( Bags + Carton )
kg / Bag : 3 Kg / CTN : 18 L X W X H : 25 X 20 X 15 cm |
Boxes ( Boxes + Carton )
Kg / Box : 1 Kg / CTN : 12 L X W X H : 25 X 25 X 20 cm |
Pallets
Kg / Pallet : 1500
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
