Quick Details
-
Weight (KG):
-
500 KG
-
Power (kW):
-
9.7kw
-
Max working width:
-
360mm
-
Max working thickness:
-
100mm
-
Main spindle speed:
-
5500r/min
-
Jointing cutter dia:
-
160mm
-
Jointing cutter spindle dia:
-
35/50mm
-
Max blade dia:
-
305mm
-
End trimming motor:
-
2.2Kw
-
Jointing cutter motor:
-
7.5Kw
Quick Details
-
Place of Origin:
-
Qingdao
-
Brand Name:
-
HOLZH
-
Machine Type:
-
Finger Trnoning Machine
-
Weight (KG):
-
500 KG
-
Power (kW):
-
9.7kw
-
Max working width:
-
360mm
-
Max working thickness:
-
100mm
-
Main spindle speed:
-
5500r/min
-
Jointing cutter dia:
-
160mm
-
Jointing cutter spindle dia:
-
35/50mm
-
Max blade dia:
-
305mm
-
End trimming motor:
-
2.2Kw
-
Jointing cutter motor:
-
7.5Kw
Specification
|
MODEL
|

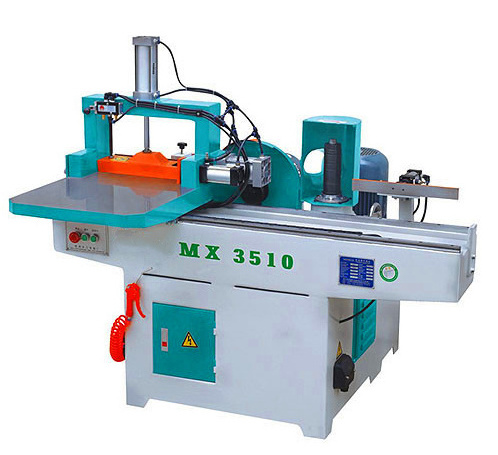

MX3510
|
MX5012
|
MXB3510
|
|
Max working width
|
360mm
|
500mm
|
360mm
|
|
Max working thickness
|
100mm
|
120mm
|
100mm
|
|
Main spindle speed
|
5500r/min
|
5500r/min
|
5500r/min
|
|
Jointing cutter dia
|
160mm
|
160mm
|
160mm
|
|
Jointing cutter spindle dia
|
35/50mm
|
40/50mm
|
35/50mm
|
|
Max blade dia
|
305mm
|
305mm
|
305mm
|
|
End trimming motor
|
2.2Kw
|
3.3kw
|
2.2kw
|
|
Jointing cutter motor
|
7.5Kw
|
7.5kw
|
7.5kw
|
