Features: There is a temperature controller on the surface of heating band. The temperature is between 30-150C normally. It is always used for heating and warming a standard 200L oil drum. It can be used for heating other drums and valves too.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YW TAIYANG heaters
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
3 KG
-
Working Temperature Range:
-
1 - 150 ℃
-
Core Components:
-
Heating element
-
Product name:
-
Oil Drum Heater
-
Wattage:
-
Customized
-
Size:
-
Customized
-
Power:
-
0.1w/cm2 - 2.5w/cm2
-
Certification:
-
CE Certification
-
Marketing Type:
-
Hot Product
-
Keywords:
-
Drum Oil Heater Silicon Rubber
-
Application:
-
Oil Heating
Quick Details
-
Type:
-
Flexible Heater
-
Power Source:
-
Electric
-
Voltage:
-
110V-380V, 110V-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YW TAIYANG heaters
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
3 KG
-
Working Temperature Range:
-
1 - 150 ℃
-
Core Components:
-
Heating element
-
Product name:
-
Oil Drum Heater
-
Wattage:
-
Customized
-
Size:
-
Customized
-
Power:
-
0.1w/cm2 - 2.5w/cm2
-
Certification:
-
CE Certification
-
Marketing Type:
-
Hot Product
-
Keywords:
-
Drum Oil Heater Silicon Rubber
-
Application:
-
Oil Heating
Wholesale Customized Silicone Rubber Oil Bucket Heater Drum Heater
Product Overview
|
Product Name
|
Durm oil heater
|
|
|
Size
|
Rectangle (Lenght*Width), Round (Diameter), or provide the drawings
|
|
|
Shape
|
Round, Rectangle, Square, any shape according to your requirement
|
|
|
Heater size
|
10mm~1000mm
|
|
|
Thickness of Heaters
|
1.5mm and customized
|
|
|
Voltage Range
|
110V~380V
|
|
|
Power density range
|
0.1w/cm2 - 2.5w/cm2
|
|
|
Temperature range
|
30℃~150℃
|
|
|
Insulation Material
|
Silicone Rubber
|
|
|
Lead wire
|
Teflon, kapton or silicone insulated leads
|
|
|
Support non-standard customization and tell us your good ideas
|
|
|

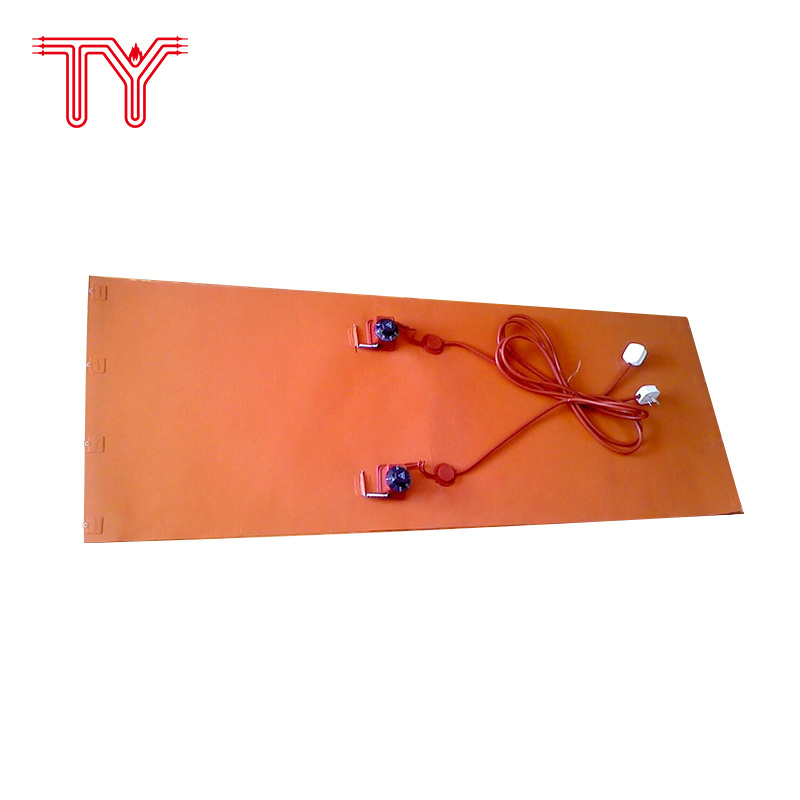

Oil drum heater
Oil drum heater is heating on the surface of drum to make the concentration and viscosity of the liquid and coagulum inside decreased uniformly. In this way It will be easy to take out the liquid and coagulum in any season.
Features: There is a temperature controller on the surface of heating band. The temperature is between 30-150C normally. It is always used for heating and warming a standard 200L oil drum. It can be used for heating other drums and valves too.
Features: There is a temperature controller on the surface of heating band. The temperature is between 30-150C normally. It is always used for heating and warming a standard 200L oil drum. It can be used for heating other drums and valves too.
Product Details
Operating principle:
1. Inside is Ni-Cr Alloy heating wires. Outside is silicon rubber insulation material. Fast heating and long working life.
2. Ni-Cr Alloy heating wire is winding around the alkali-free fiber-glass. Main insulation material is silicon rubber which is of high heat-resistance and insulation.
3. Oil drum heater is soft and flexible. It is winding around the drum directly.
2. Ni-Cr Alloy heating wire is winding around the alkali-free fiber-glass. Main insulation material is silicon rubber which is of high heat-resistance and insulation.
3. Oil drum heater is soft and flexible. It is winding around the drum directly.
Specification:
Maxi heat-resistance:
250C
Suggested operating temperature: <200C
Insulation resistance: >50MΩ
Dielectric strength: >1500V /min
Tolerance of wattage: ±5％
Suggested operating temperature: <200C
Insulation resistance: >50MΩ
Dielectric strength: >1500V /min
Tolerance of wattage: ±5％
Standard specifications for Oil Tank and Gas Tank
|
Product Name
|
Size
|
Voltage/Power
|
Weight
|
|
200L Drum heater
|
250*1740mm
|
220V/2KW(3KW)
|
1.6KG
|
|
200L Drum heater
|
125*1740mm
|
220V/1KW
|
0.85KG
|
|
100L Drum heater
|
250*1250mm
|
220V/1.5KW
|
0.8KG
|
|
20L Drum heater
|
200*860mm
|
220V/800W
|
0.75KG
|
|
15KG Gas tank
|
100*970mm
|
220V/300W
|
0.55KG
|
|
50KG Gas tank
|
100*1250mm
|
220V/350W
|
0.6KG
|
|
50KG Gas tank
|
180*1250mm
|
220V/500W
|
0.9KG
|
Installation:
1. First of all please clean the surface of drums. Secondly wind the heater around the drum tightly and fix it with springs.
2. In order to reduce the heat loss, it is available to use thermal insulation layer outside the heater.
3. Do not wind the heater superposed. It is possible to be over-heating.
4. The surface of heater should stick to the surface of drum tightly in order to avoid air heating.
2. In order to reduce the heat loss, it is available to use thermal insulation layer outside the heater.
3. Do not wind the heater superposed. It is possible to be over-heating.
4. The surface of heater should stick to the surface of drum tightly in order to avoid air heating.
Notes:
1. To heaters without usage for a long time, please inspect if there is damage before plugging in.
2. Do not scratch the insulation material when operating. If insulation material is damaged, please stop using the heater for safety.
3. After usage, please unplug the power cable to avoid air heating.
4. The heater is not highly moistureproof. Please don not use it in water or frost for long time.
5. The heating speed is different according to different environment, materials and form.
2. Do not scratch the insulation material when operating. If insulation material is damaged, please stop using the heater for safety.
3. After usage, please unplug the power cable to avoid air heating.
4. The heater is not highly moistureproof. Please don not use it in water or frost for long time.
5. The heating speed is different according to different environment, materials and form.
For m
ore heaters,you can contact with us to Customize for you
Pls provide this informations:
1.Vottage :380V,240V, 220V,200V,110V and other can be customized.
2.Wattage :80W,100W,200W,250W and other can be customized.
3.Other special requirements if you have.
4.Quantity :the mini order quantity is 1 pcs.
1.Vottage :380V,240V, 220V,200V,110V and other can be customized.
2.Wattage :80W,100W,200W,250W and other can be customized.
3.Other special requirements if you have.
4.Quantity :the mini order quantity is 1 pcs.
