Quick Details
-
Power:
-
40 kw
-
Dimension(L*W*H):
-
14500 mm * 40500 mm *7600mm
-
Weight:
-
12000 kg
-
Productivity:
-
25 m3/h
-
Twin Shaft Mixer:
-
JS500
-
Mixer Volume:
-
0.5 m3
-
Mixer Power:
-
18.5kw
-
Max. Aggregate Size(broken stone/pebble):
-
60/80mm
-
Loading Type of Aggregate to the Mixer:
-
Conveyor Belt
-
Aggregate Storage Hopper:
-
4 m3* 2
-
Aggregate Weighing:
-
2000kg±2%
-
Cement Weighing:
-
250kg±1%
-
Water Weighing:
-
200kg±1%
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANQ
-
Power:
-
40 kw
-
Dimension(L*W*H):
-
14500 mm * 40500 mm *7600mm
-
Weight:
-
12000 kg
-
Productivity:
-
25 m3/h
-
Twin Shaft Mixer:
-
JS500
-
Mixer Volume:
-
0.5 m3
-
Mixer Power:
-
18.5kw
-
Max. Aggregate Size(broken stone/pebble):
-
60/80mm
-
Loading Type of Aggregate to the Mixer:
-
Conveyor Belt
-
Aggregate Storage Hopper:
-
4 m3* 2
-
Aggregate Weighing:
-
2000kg±2%
-
Cement Weighing:
-
250kg±1%
-
Water Weighing:
-
200kg±1%

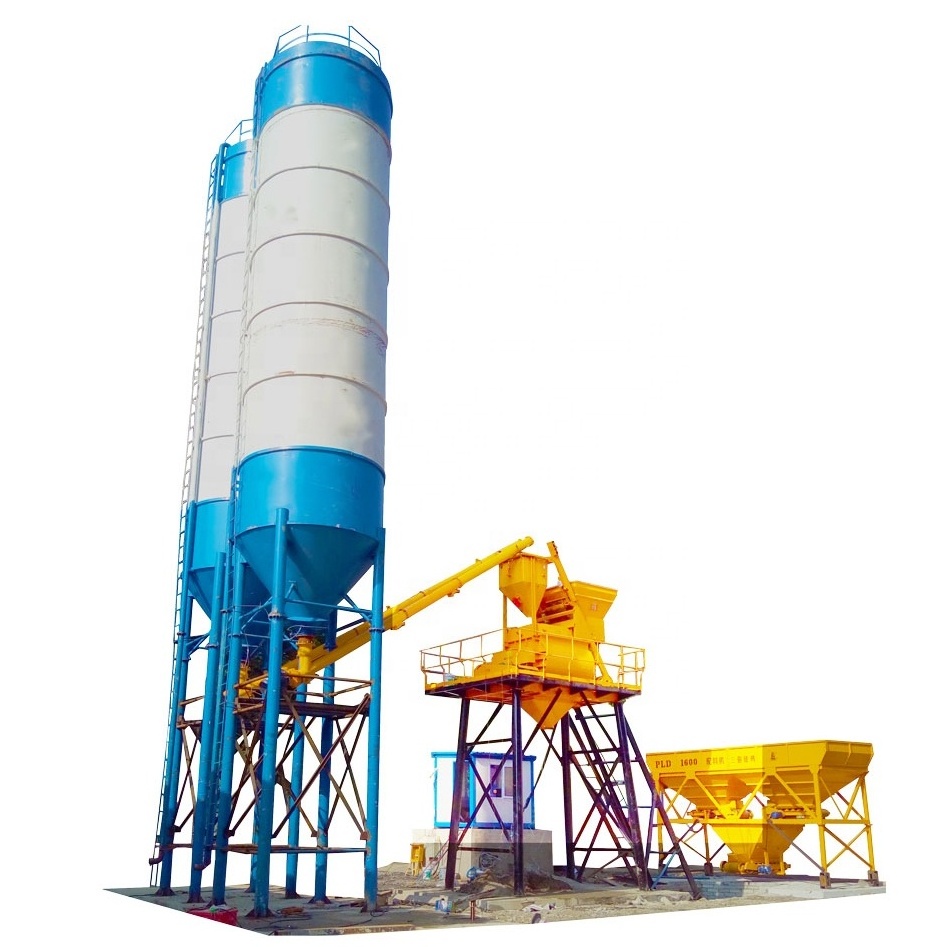

Factory Price Belt Conveyor Feeding Concrete Batching Plant
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
| Productivity | 25 m³/h | 35 m³/h | 50 m³/h | 60 m³/h | 75 m³/h | 90 m³/h | 120 m³/h | 180 m³/h |
| Twin Shaft Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | MAO3000/2000 SICOMA | MAO4500/3000 SICOMA |
| Mixer Volume | 0.5 m³ | 0.75 m³ | 1 m³ | 1 m³ | 1.5 m³ | 1.5 m³ | 2 m³ | 3 m³ |
| Mixer Power | 18.5 kw | 30 kw | 37 kw | 37 kw | 30 kw×2 | 30 kw×2 | 37 kw×2 | 55 kw×2 |
| Max. Aggregate Size(broken stone/pebble) | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Loading Type of Aggregate to the Mixer | Skip Hopper | Skip Hopper | Skip Hopper | Converying Belt | Skip Hopper | Converying Belt | Converying Belt | Converying Belt |
| Aggregate Storage Hopper | 2.5 m³ × 3 | 2.5 m³ × 3 | 4.5 m³ × 3 | 9 m³ × 3 | 12 m³ × 3 | 15 m³ × 4 | 18 m³ × 4 | 18 m³ × 4 |
| Aggregate Weighing | 3000 kg ±2% | 3000kg±2% | 3000 kg ±2% | 12000 kg ±2% | 12000 kg ±2% | 12000 kg ±2% | 3000 kg ±2% | 3000 kg ±2% |
| Cement Weighing | 1500 kg ±1% | 1500kg±1% | 1500 kg ±1% | 1500 kg ±2% | 1500 kg ±1% | 1500 kg ±2% | 1000 kg ±2% | 1000 kg ±2% |
| Water Weighing | 900 kg ±1% | 900kg±1% | 900 kg ±1% | 1500 kg ±1% | 900 kg ±1% | 1500 kg ±1% | 1000 kg ±1% | 1000 kg ±1% |
| Additive Weighing | 150 kg ±1% | 150kg±2% | 150 kg ±1% | 500 kg ±1% | 150 kg ±1% | 900 kg ±1% | 500 kg ±1% | 500 kg ±1% |
| Control Mode | Full-automatic | Full-automatic | Full-automatic | Full-automatic | Full-automatic | Full-automatic | Full-automatic | Full-automatic |
| - | - | - | - | - | - | - | - | |
| Discharge Height | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm |
| Total Power | 44 kw | 60 kw | 67 kw | 74 kw | 95 kw | 118 kw | 145 kw | 190 kw |
| Total Weight | 8950 kg | 13000 kg | 18000 kg | 24000 kg | 24000 kg | 34000 kg | 42000 kg | 52000 kg |
| Cement Screw Conveyor | LSY219 & LSY273 | |||||||
| Cement silo (Optional) | Bolted Type/: 50T / 60T / 80T / 100T / 150T / 200T | |||||||
1, How about warranty?
12 months after successfully installation. Life long technical support.
2, What certificate do you have?
ISO 9001 and GOST.
3, How about delivery time?
1-40 days after order confirmed, exact time on the base of order quantity, product type and peak/low season.
4, What is the payment terms?
30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.
5, How about your after-sales service?
24 hours technical support and solution Free spare parts during waranty period and cost price parts beyond warranty
6, How can I get a quote?
Please feel free to contact us by email, phone, whatsapp, wechat or skype, we will feedback within 24 hours.
7, Can I visit your factory?
Your visiting will be warmly welcomed. Xinzheng International Airport in Zhengzhou is 60km away our facotry. Zhengzhou East Railway Station is 20km away our factory. Lots of flights and high speed trains from all China to our city.
