The upper part of the test sieve (inspection sieve) is composed of fixed nut, pressure plate, sieve cover, sieve frame, middle
sieve frame, sieve bottom, isometric adjustment rod, etc. All parts are made of high-quality SUS304 stainless steel.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110v/220v/380v, 220V 50 Hz, Single Phase or as your require
-
Weight:
-
35 KG
-
Product Name:
-
Test Sieve Shaker
-
Layer:
-
1-8Layers
-
Power:
-
0.125kw
-
Material:
-
SUS 304 Stainless Steel
-
Feature:
-
Easy Operation
-
Usage:
-
Particle size analysis
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Henan, China
-
Voltage:
-
110v/220v/380v, 220V 50 Hz, Single Phase or as your require
-
Weight:
-
35 KG
-
Product Name:
-
Test Sieve Shaker
-
Layer:
-
1-8Layers
-
Power:
-
0.125kw
-
Material:
-
SUS 304 Stainless Steel
-
Feature:
-
Easy Operation
-
Usage:
-
Particle size analysis
Product Overview

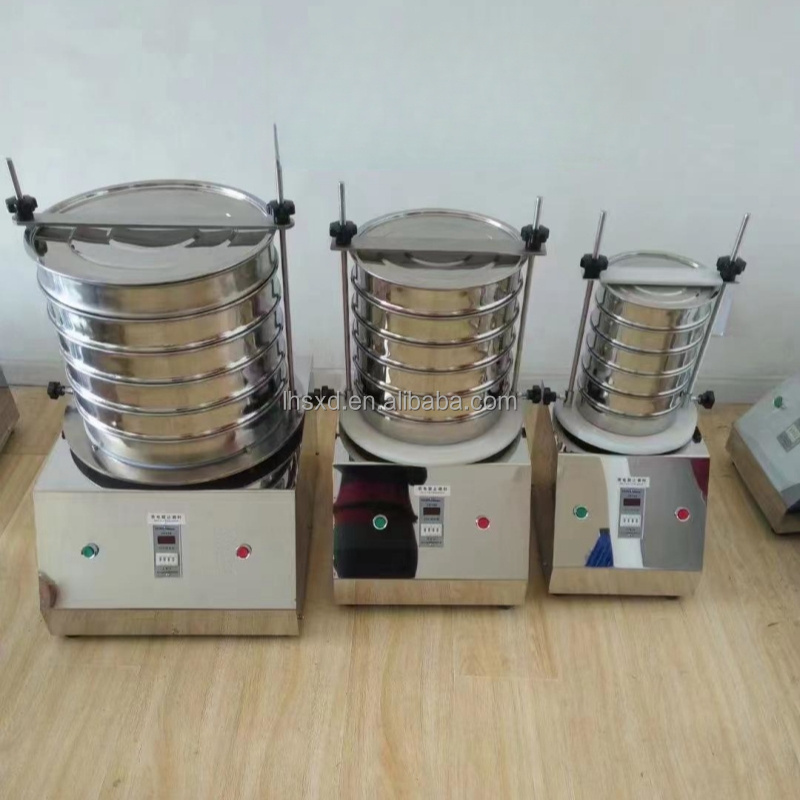

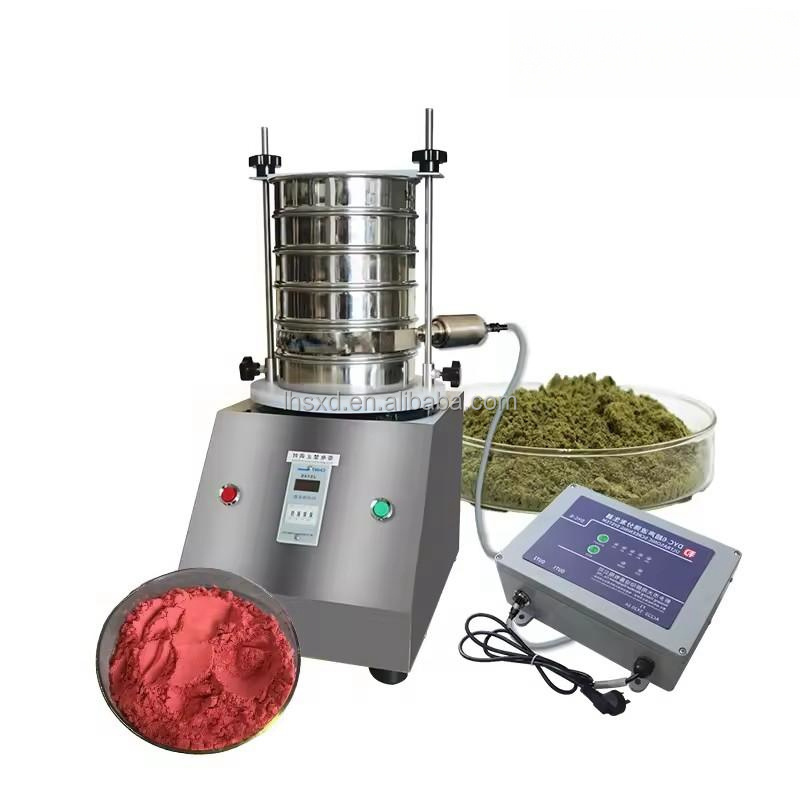

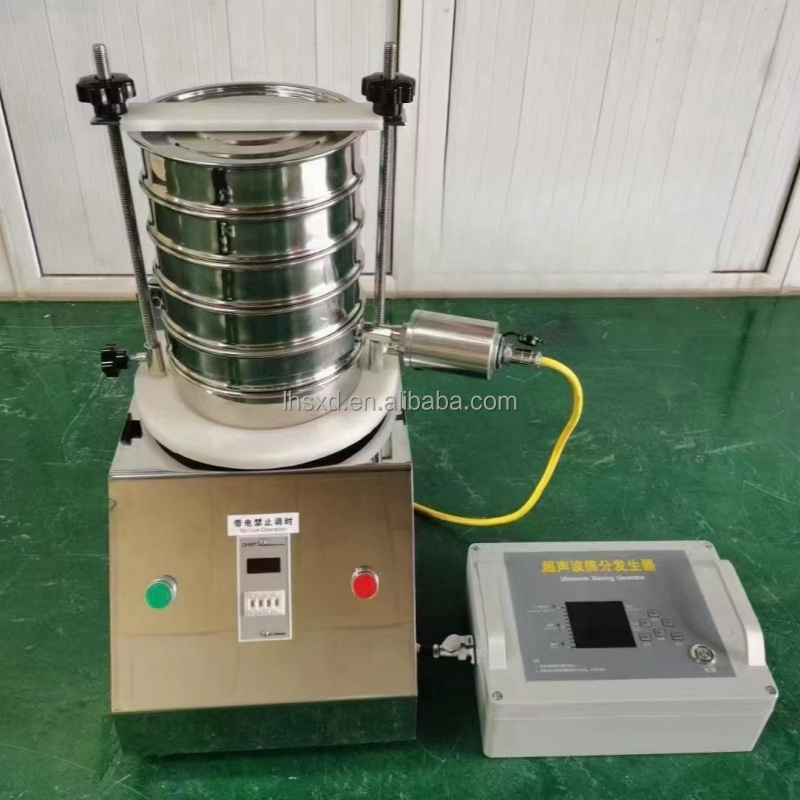

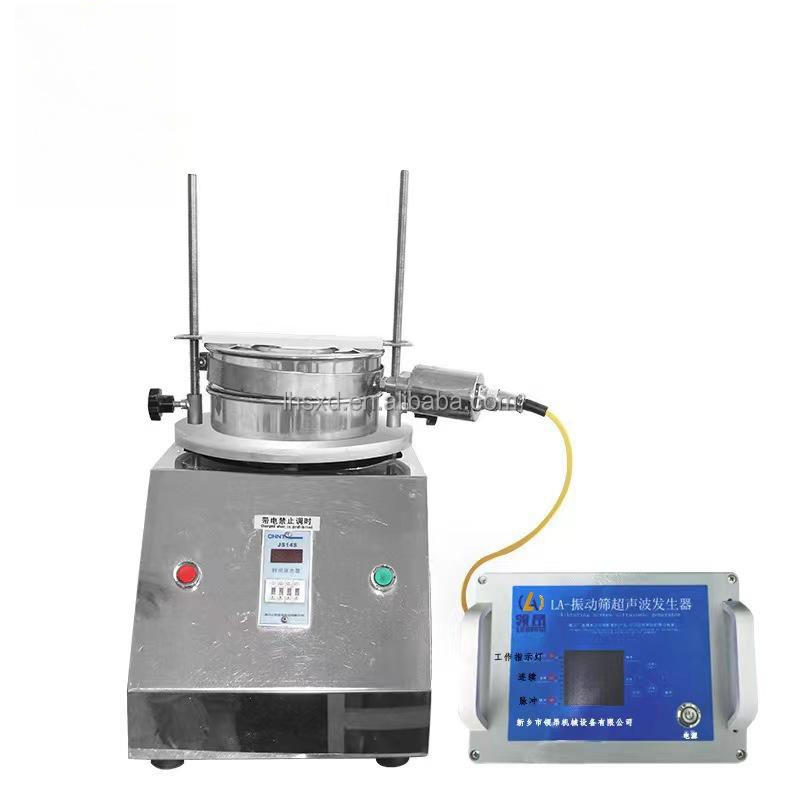

Stainless Steel 200mm 300mm Diameter Test Sieve Shaker with Ultrasound System

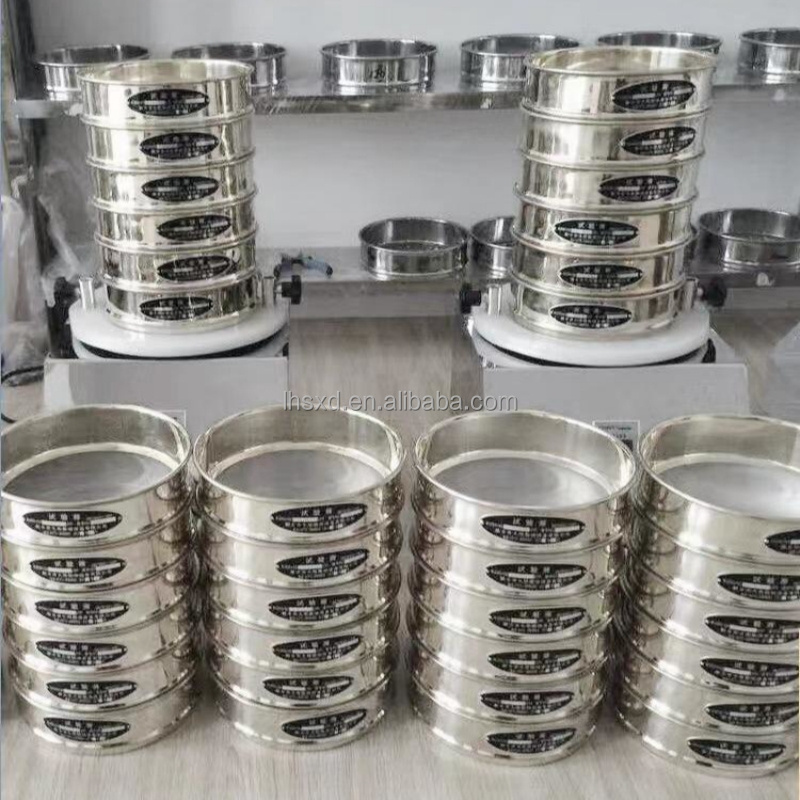

Test sieve. Also known as: standard sieve, analytical sieve, particle size sieve. It is mainly used in the standard inspection,
screening, filtration and detection of the particle size structure, liquid solid content and sundry amount of granular and powdery materials in the laboratory. Out of 2~7 particle segments, up to 8 layers sieves can be used.
screening, filtration and detection of the particle size structure, liquid solid content and sundry amount of granular and powdery materials in the laboratory. Out of 2~7 particle segments, up to 8 layers sieves can be used.
Features
1. The whole machine is compact in design, reliable in quality, light in weight, small in size, convenient for placement and
mobile use;
2. The relay circuit is carefully arranged, and the arrangement is stable and reasonable;
3. The screening accuracy is accurate and the efficiency is high, which can be screened to 0.025-3mm;
4. When the test sieve is working, the noise is the smallest;
5. Equipped with time relay control, the inspection time is not bad every minute;
6. The ingenious base shock absorption design can effectively shield the
vibration of the equipment on the workbench during operation;
7. The test sieve box and vibrating plate are made of SUS304 stainless steel;
8. The sieve frame of the test sieve is made of SUS304 stainless steel by stretching and polishing, with a wall thickness of
0.5mm, uniform gloss, strong and durable, and no magnetism;
9. The screen mesh and the screen frame are fixed by tin welding to prevent the problem of relaxation and shaking.
1. The whole machine is compact in design, reliable in quality, light in weight, small in size, convenient for placement and
mobile use;
2. The relay circuit is carefully arranged, and the arrangement is stable and reasonable;
3. The screening accuracy is accurate and the efficiency is high, which can be screened to 0.025-3mm;
4. When the test sieve is working, the noise is the smallest;
5. Equipped with time relay control, the inspection time is not bad every minute;
6. The ingenious base shock absorption design can effectively shield the
vibration of the equipment on the workbench during operation;
7. The test sieve box and vibrating plate are made of SUS304 stainless steel;
8. The sieve frame of the test sieve is made of SUS304 stainless steel by stretching and polishing, with a wall thickness of
0.5mm, uniform gloss, strong and durable, and no magnetism;
9. The screen mesh and the screen frame are fixed by tin welding to prevent the problem of relaxation and shaking.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Name
|
Data
|
|
Layers
|
1~8Layer
|
|
Diameter
|
Φ200MMΦ300MMΦ75MM
|
|
Granularity
|
0.038MM-3MM
|
|
Noise
|
≤50DB
|
|
Feeding capacity (once)
|
≤200G
|
|
Amplitude
|
≤5MM
|
|
Voltage
|
220V,110V
|
|
Speed
|
1420R/min
|
|
Power
|
0.12kw
|
|
Overall dimension
|
470×470×550MM
|
|
Weight
|
50kg
|
Detail Images
Finished Product
